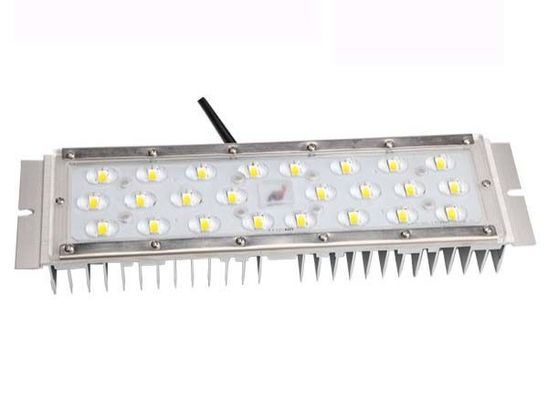

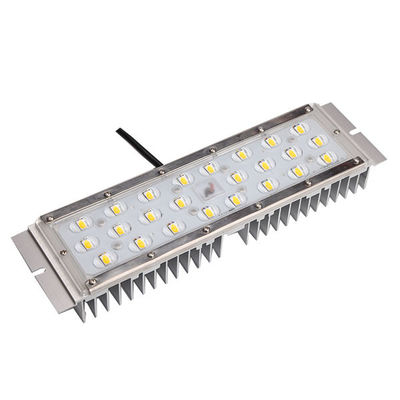

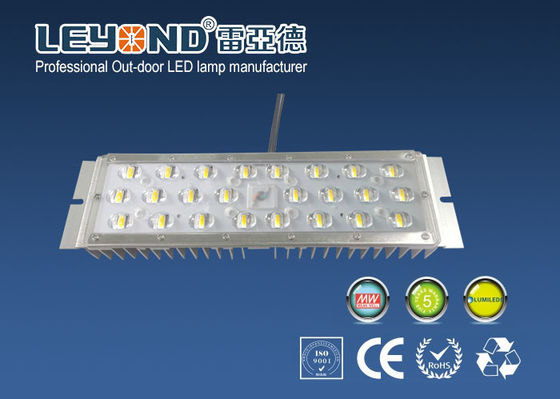

Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module

Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module
Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module

Large Image :  Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE RoHS
Model Number: LY-ST12050P/WW

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: 3pcs/ctn
Delivery Time: 7-10 working days
Payment Terms: T/T, Paypal
Supply Ability: 3000pcs per month
Detailed Product Description
Item Type: LED Street Light Module Lamp Power(W): 30W/40W/45W
Lamp Luminous Flux(lm): 25500lm Lamp Body Material: Aluminum
IP: IP65 Warranty: 5 Years
High Light:

led lighting module

,

led modular

Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module





Street Light Modular 5050 Series 150X70°

  • Materials: Aluminum housing + optical PC lens
  • size: 300x78x32mm
  • N.W: 0.63kg
  • input voltage: 44-52v, current 0.6-1.0A, 30w-45w
  • /Leyond 5050 SMD LEDs
  • CRI: >70Ra
  • CCT: 2700K-6500K
  • Light efficiency: 160-170lm/w
  • waterproof IP66
  • Beam angle: Street light: 150°x70° , Flood light:24°/60°/90°
  • LED qty: Street light module: 24pc, Flood light module:28pc



CCT(K)
Wattage
CRI
Voltage DC
Current DC
Luminous Efficiency
Luminous  flux
2800-3000
30W
Ra≥70
42-45V
700mA
130lm/W
3900lm
40W
900mA
155lm/W
4800lm
45W
1000mA
151lm/W
5265lm
4000-4500
30W
Ra≥70
42-45V
700mA
168lm/W
4050lm
40W
900mA
160lm/W
5040lm
45W
1000mA
156lm/W
5490lm
5000-5500
30W
Ra≥70
42-45V
700mA
172lm/W
4200lm
40W
900mA
163lm/W
6520lm
45W
1000mA
160lm/W
7200lm
6000-6500
30W
Ra≥70
42-45V
700mA
176lm/W
5280lm
40W
900mA
167lm/W
6680lm
45W
1000mA
162lm/W
7290lm

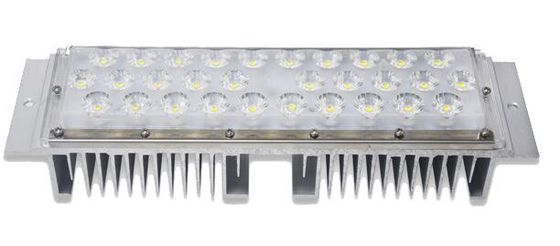

Outlook:

Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module 0



Photometry (Polar Diagram of Luminance) 150X70 DEG





Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module 1





Photometry(AAI Figure)

Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module 2







LUXEON 5050 LED Chip:



LUXEON 5050 is a multi-die, high power package that provides high luminance from a single package to enable cost effective, singl optic and directional fixture designs. LUXEON 5050 uses an industry standrd 5050 surface mount package with the smallest round Light Emitting Surface (LES). LUXEON 5050 comes in 70CRI, 80CRI and 90CRI with a wide range of CCTs, and offers hot-color targeting to ensure that the LEDsare within color target at application conditions of 85°C.





Package

·1 Inner Carton = 2 Set Weight:1.2KG

·1 Outer Carton= 40 Set Weight:25.0KG

·Inner Carton Size : 306mm X 83mm X 67mm

·Outer Carton Size : 365mm X 322mm X 354mm



Assembly and Installation

Assembly-Electricity



Super Brightness Outdoor Led Module For Street Light / 25500lm High Power Led Module 3



The entire series of LED CHEM Street Light Modular voltage range is DC42~45 volts.

All LEDs are in series connecting, considering different using conditions and places in the applications, please match with a constant current driver to drive the lamp.





Remark



1,The led module adopt special techniques to keep enough light efficiency, please do not open the light engine ,otherwise there won’t have repairing guarantee.

2,When customers in the process of matching the power supply,please match with the surge protector to ensure the safety.

3,The radiator has its own design peak, please do not exceed the maximum use of current so that ensure the light efficiency and lumen.

4,All LEDs are in series connecting, considering different using conditions and places in the applications, please match with a constant current driver to drive the lamp .



Application:



·Applicable to all types of road lighting: expressway, trunk road, main road, large public buildings or commercial center road, secondary road, branch, residential roads and sidewalks, and can also be used for general building, square, freight yard, landscape and other places of lighting.

·New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
