Product Details:
Payment & Shipping Terms:
|
| Power: | 80W | LED Chip: | Lumileds/OSRAM 5050 LED |
|---|---|---|---|
| LED Driver: | Meanwell HLG-100 | IP Rating: | IP65 |
| CCT: | 2700-6500K | Warranty: | 5 Years |
| Beam Angle: | 150X65degree | Package: | 75cm×40cm×23cm (2 PCS ) |
| GW: | 9.6kg | Luminous Flux: | 16500lm |
| Dimmable: | YES&NO | CRI: | >80 |
| Pole Diameter: | 60mm | ||
| High Light: | outdoor led street light,led roadway lighting |
||

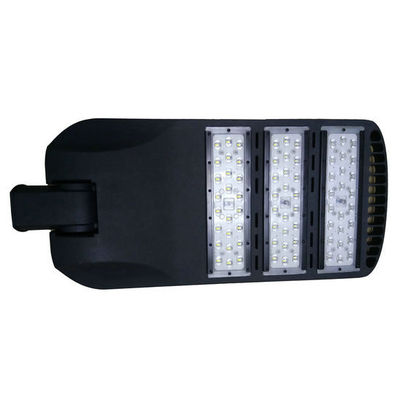

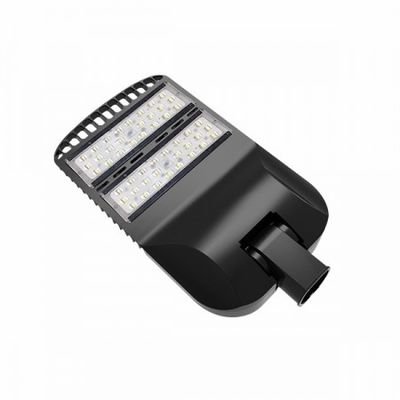

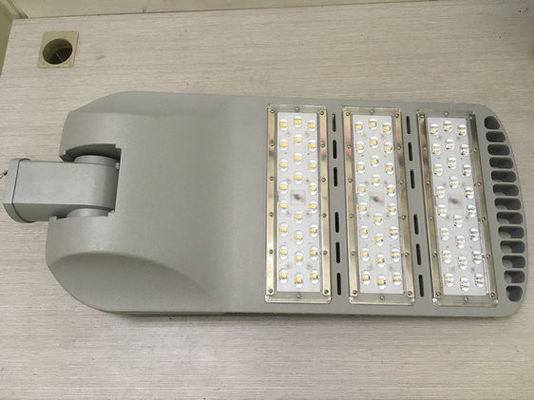

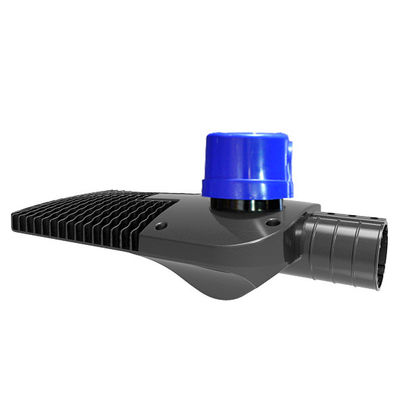

60 Watt Aluminum Module Solar Wind Led Street Light Retrofit , Exterior Led Lighting
Major advantages of our street light:
Power: 40W/50W/60W/100W/120W/150W
Input Voltage: AC90~305V
Emitting color: 2700-6500k
PF: >0.95 CRI: >70
Efficiency of the Driver: >95%
Lens Degree: 150*65 Degree
IP66
Life Span: 50000hs
Material: Aluminum
Warranty: 5 years
Details sheet:
Item Name |
LED street light |
Power |
40W/50W/60W/100W/120W/150W |
Input Voltage |
AC90~305V |
CCT |
2700-6500k |
PF |
>0.95 |
CRI |
>70 |
Lens Degree |
150*65 |
Life Span |
50000hs |
Efficiency of the Driver |
>88% |
Material |
Die-Casting Aluminum |
Warranty |
5 years |
Specification:
- High Lumens output >130-160lm/W, with SMD 3030/5050 high power LEDs
- With asymmetric optic lens, higher lumens transmittance up to 98%
- Meanwell brand driver HLG series, input voltage AC90-305V, PF>0.95
- Popular LED modules inside, easier for maintanance
- Duct type thermal design, reduce the weight of the light and ensure good heat dissipation
- Durable lights with long life span 50000 hours, 5 years warranty
- Nice appearance with waterproof IP rating: IP66
- Matching 3x1mm² silicon rubber cable (customize available)
Operation and Storage Condition
·Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
·Input Voltage 100~240V AC, 50/60Hz
·Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
·Mounting Height : Suitable for 6~12m height

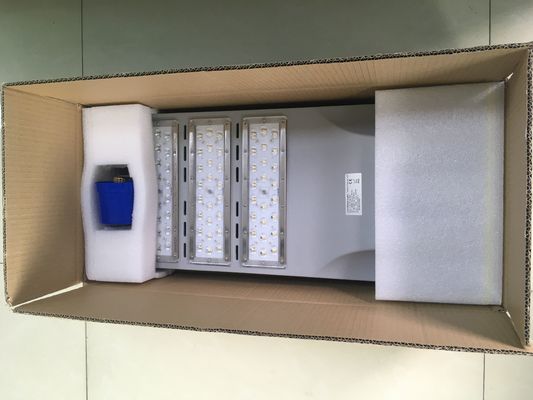

Package
·Inner box Size: 720mm×370mm×200mm
·Outer box Size: 745mm×395mm×225mm (2 PCS LED Street Light)
Assembly and Installation
·Assembly-Electricity
1)AC100-240V
·Blue : Neutral
·Brown : Line
·Yellow-Green : Ground
