50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty

China 50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty supplier
50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty supplier 50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty supplier

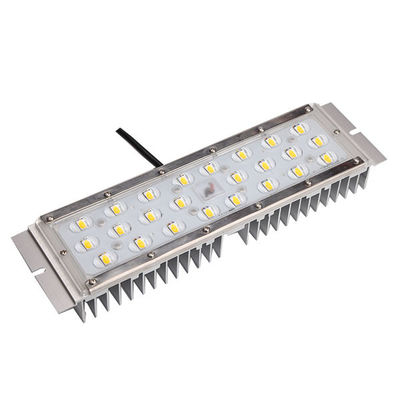

Large Image :  50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE/ROHS/ISO
Model Number: LY-ST53050XX

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: 18-25USD/pcs
Packaging Details: carton package
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10,000/month
Contact Now
Detailed Product Description
LED Flood Light: 50W Chips Brand: 5050
Driver Brand: Meanwell Efficiency: 180Lm/w
Beam Angle: 25/60/90deg Material: PC + Aluminum
Warranty: 5 Years



50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty



Features:

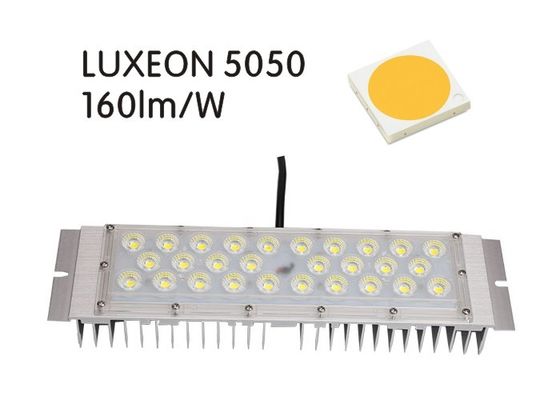

High Brightness Flood Modular 5050 Series 60°/90°

·High luminous efficiency,30W Luminous flux5100lm; Whole lamp output light efficiency >170LM/W.

·Unique second-time light distribution, no light pollution,no glare, no flickering.

· Modular structure making the lamp more easier and faster to be designed ,easy to do replacement and maintaining.A variety of combinations can multiply increase the brightness and illumination.

· Modular concept, piece combinations as your require. Can satisfy any number of lanes and width combinations. With IP66 Protection, adapt to any weather conditions.

· Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: Nofilament and glass frames, avoid break of the traditional lamp,without harm to the human body.

·The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood.

·CHEM module design adopts the professional optical design of free-curve- surface, fully uses the features that LED light in directionally to improve the utilization of LED maximumly under offered a space-saving of light efficiency,and makes shines more than 80% on the road,and avoids light pollution maximumly caused by street lights.



Specifications:





CCT(K) Wattage CRI Voltage DC Current DC Luminous
Efficiency
Luminous
flux
2800-3000 30W Ra≥70 42-45V 700mA 130lm/W 3900lm
40W 900mA 155lm/W 4800lm
45W 1000mA 151lm/W 5265lm
4000-4500 30W Ra≥70 42-45V 700mA 168lm/W 4050lm
40W 900mA 160lm/W 5040lm
45W 1000mA 156lm/W 5490lm
5000-5500 30W Ra≥70 42-45V 700mA 172lm/W 4200lm
40W 900mA 163lm/W 6520lm
45W 1000mA 160lm/W 7200lm
6000-6500 30W Ra≥70 42-45V 700mA 176lm/W 5280lm
40W 900mA 167lm/W 6680lm
45W 1000mA 162lm/W 7290lm







Product Dimension 300*78*45MM
IP Rating IP66
Working Life 50000H
Working Temperature -30℃ ~ +50℃
Storage Temperature -10℃ ~ +85℃
Working Humidity 10%~90%
Beam Angle 25°/ 60°/ 90°



Outlook:

50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty





Photometry (Polar Diagram of Luminance)






25DEG 60DEG 90DEG


50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty

Photometry(AAI Figure)



25DEG 60DEG



50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty

90DEG

50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty



Package:


·1 Inner Carton = 2 Set Weight:1.3KG

·1 Outer Carton= 40 Set Weight:27.0KG

·Inner Carton Size : 306mm X 83mm X 67mm

·Outer Carton Size : 365mm X 322mm X 354mm



Assembly and Installation

Assembly-Electricity



50 W 5050 Chips 180lm / W Industrial Led Flood Lights High Efficiency 5 Years Warranty

The entire series of LED CHEM Flood Light Modular voltage range is DC42~45 volts.

All LEDs are in series connecting, considering different using conditions and places in the applications, please match with a constant current driver to drive the lamp.





Remark

1,The led module adopt special techniques to keep enough light efficiency, please do not open the light engine ,otherwise there won’t have repairing guarantee.

2,When customers in the process of matching the power supply,please match with the surge protector to ensure the safety.

3,The radiator has its own design peak, please do not exceed the maximum use of current so that ensure the light efficiency and lumen.

4,All LEDs are in series connecting, considering different using conditions and places in the applications, please match with a constant current driver to drive the lamp .



Applications:

·Applicable to all types of road lighting: expressway, trunk road, main road, large public buildings or commercial center road, secondary road, branch, residential roads and sidewalks, and can also be used for general building, square, freight yard, landscape and other places of lighting.

·New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
