3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver

 3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver
 3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver  3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver  3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver  3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver

Large Image :  3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS
Model Number: LY-ST55150-XX

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Contact me
Packaging Details: normal packing,Brown carton
Delivery Time: sample 3-5 working days,normal order 7-10 working days
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 10000pcs per month
Detailed Product Description
Material: Aluminum Driver: Meanwell
Led Brand: 3030 IP Rating: IP40
Warranty: 5 Years
High Light:

low bay led shop lights

,

led low bay lights

3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver



Features:



1. High power ,high brightness,high quality,high efficiency,up to 80% energy saving.



2. Light cover adpots light diffusion materials to bring us better lighting effect.high illumination, and the mliky cover can reach 90% light transmittance.



3. With low light degradation LED and good heat dissipation aluminum material with quick heat conduction.Make the LED lights have longer lifetime.10 times than the traditional ones.They need low cost in maintenance.so,they are fit for the lighting place where is hard to replace the broken lights often..



4. High luminous efficiency, Whole lamp output light effiency >100LM/W.



5. High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.





LUXEON 3030 2D:High fux, hot-color targeted 6V package:



LUXEON 3030 2D is the first hot-color targeted mid power LED Hot-color targeting ensures that the LEDs are within color target at application conditions — 85°C. Using an industry standard packaging of 3.0mm x 3.0mm x 0.5mm and 6V surface-mount emitter solution, LUXEON 3030 2D comes in all ANSI CCTs and delivers the efficacynd reliabilty required for indoor illumination markets.





Meanwell-ELG-36B LED driver:



IP67
3 in 1 dimming function(0-10Vdc, 10V PWM signal and resistance)







150W Low Bay Light II



Outlook:

 3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver 0



Technical parameter:

Model Inptut voltage Luminous Flux LED type LED QTY System Efficiency
LY-HB55150PW AC100V~240V
50/60HZ
15800lm LUXEON 3030 200PCS >90%
LY-HB55150WW 14000lm
LY-HB55150NW 14550lm



Model Driver Beam Angle CRI CCT Meterial
LY-HB55150PW Meanwell
CLG-150
ELG-150
120° >75 5000-6500k Aluminum+Acrylic
LY-HB55150WW 2700-3200k
LY- HB55150NW 4000-4500k



Model Power Factor Lifespan(hrs) IP Rating Product Size(mm) NET Weight(KG)
LY-HB55150PW 0.96 >50000 IP40 330X328X100 5.3
LY-HB55150WW
LY-HB55150NW





Distribution Curve Photometry (AAI Figure)



 3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver 1  3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver 2







Installation:

 2 types Felxible Installation way: The low bay light support 2 types installation way.

The sling hanging way can be used the places which the fix point is limited.

The handle way is the normal way just like the others led lights, can be install at ground, ceiling & wall with 180° adjustable position.


 3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver 3



Package



·Carton Size: 390mm×390mm×160mm

·Net weight:5.3KG Gross weight:6.4KG



 3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming Driver 4





Quality Control

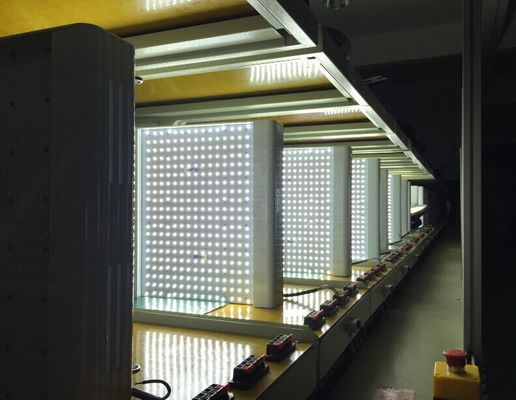

100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability
and we will also test its temperature after 24 hours’ lighting. Then after it is cool we again test
100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures
before shipping to customer.


Our Services:

Trade term: EXW, FOB, CIF

MOQ: 1pcs

Port: Shenzhen, Zhongshan, Guangzhou

Sample availability: Yes

Supply capability: 1000 pcs/day

Payment: T/T, Western Union, L/C, Paypal.

Shipment: ocean or air transportation, international express

Normal lead time: 7days for sample order;15 days for production order

Payment condition: 30% before production, 70%before delivery
