Aluminum 180lm / W Led Lamp Module , High Power Led Street Lighting Module

Good quality High Power LED Flood Light for sales
Good quality High Power LED Flood Light for sales
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

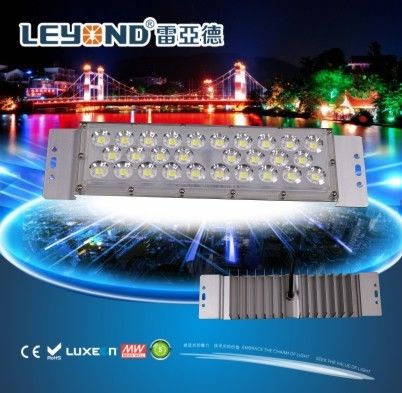

Aluminum 180lm / W Led Lamp Module , High Power Led Street Lighting Module

China Aluminum 180lm / W Led Lamp Module , High Power Led Street Lighting Module supplier

Large Image :  Aluminum 180lm / W Led Lamp Module , High Power Led Street Lighting Module

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS
Model Number: LY-ST51045PW

Payment & Shipping Terms:

Minimum Order Quantity: 6pcs
Price: contact me
Packaging Details: 20pcs/carton
Delivery Time: 5-7 working days for sample order,7-15 working days for normal order
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Led Chip: Luxeon Material: Aluminum
Voltage: DC42-48V IP Rating: IP66
Product Dimension: 300*80*60MM Working Life: 50000H


Aluminum 180lm / W Led Lamp Module , High Power Led Street Lighting Module






Applicable to all types of road lighting: expressway, trunk road,  main road, large public buildings or commercial center road, secondary road, branch, residential roads and sidewalks, and can also be used for general building, square, freight yard, landscape and other places of lighting.
  New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.




CCT(K)CCT(K) WattageWattage CCRIRI VolVoltage DCtage DC Current DCCurrent DC Luminous
2800-3000 30W Ra≥70 42-45V 700mA 130lm/W 3900lm
40W 900mA 155lm/W 4800lm
45W 1000mA 151lm/W 5265lm
4000-4500 30W Ra≥70 42-45V 700mA 168lm/W 4050lm
40W 900mA 160lm/W 5040lm
45W 1000mA 156lm/W 5490lm
5000-5500 30W Ra≥70 42-45V 700mA 172lm/W 4200lm
40W 900mA 163lm/W 6520lm
45W 1000mA 160lm/W 7200lm
6000-6500 30W Ra≥70 42-45V 700mA 176lm/W 5280lm
40W 900mA 167lm/W 6680lm
45W 1000mA 162lm/W 7290lm



Street Light Modular 5050 Series 150X70°

·High luminous efficiency,30W Luminous flux5100lm; Whole lamp output light efficiency >170LM/W.

·Unique second-time light distribution, no light pollution,no glare, no flickering.

· Modular structure making the lamp more easier and faster to be designed ,easy to do replacement and maintaining.A variety of combinations can multiply increase the brightness and illumination.

· Modular concept, piece combinations as your require. Can satisfy any number of lanes and width combinations. With IP66 Protection, adapt to any weather conditions.

· Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditionallamp,without harm to the human body.

·The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood.

·CHEM module design adopts the professional optical design of free-curve- surface, fully uses the features that LED light in directionally to improve the utilization of LED maximumly under offered a space-saving of light efficiency,and makes shines more than 80% on the road,and avoids light pollution maximumly caused by street lights.




1. How to choose LED light source?

A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.


2. Why choose Leyond Lighting?

A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.


3. What can Leyond offer?

A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED downlight, LED ceilling light, LED spot light, LED tube, LED module, LED Street Light, ect.


4. How to place an order?

A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.


5. How long will be the lead time?

A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.


6. How long will the warranty period last?

A: We usually offer 2 years free warranty for Bridgelux products. More detailed warranty policy, please contact our sales representatives.
