Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W

China Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W supplier
Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W supplier Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W supplier Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W supplier Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W supplier

Large Image :  Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: EMC,LVD,ROHS
Model Number: LY-ST53045XX

Payment & Shipping Terms:

Minimum Order Quantity: 4pcs
Price: Neogotiable
Packaging Details: Standard plain cartons
Delivery Time: 5-15 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Led Chip: Luxeon 5050 Chips Material: Aluminum+PC
Voltage: DC30-46V IP Rating: IP66
Product Dimension: 300*80*60MM Working Life: 50,000H
CCT: 3000K 4000K, 5700K, 6000K Beam Angle: 25/60/90/ 150x65deg

Luxeon 5050 Chip More Than 160lm / W Led Light Module Multi - Angle Viewing

Quick Details:

IP Rating IP66
Product Dimension 300*80*60MM
Net weight 0.92KG  G.W 1KG
Light Body& Lampshade Aluminum Alloy and PC
Working Life 50,000H
Working Temperature -30 ~ +50 ℃ ℃
Storage Temperature -10 ~ +85 ℃ ℃
Working Humidity 10%~90%
Beam Angle 25°/60°/90°

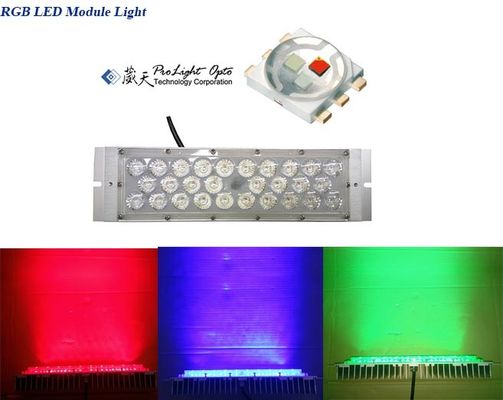

RGB Module

Emitting Color CCT Typical Lumens Forward Voltage Forward Current
Red 620-630nm 950 lm 13-17V / 19-22V 1300mA(max)
Green 520-530nm 2200 lm 21-25V / 30-34V 1300mA(max)
Blue 460-465nm 560 lm 21-25V / 30-34V 1300mA(max)
White / 2500 lm 13-25V / 19-34V 1400mA(max)

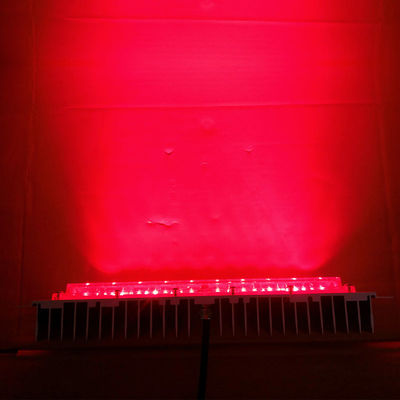

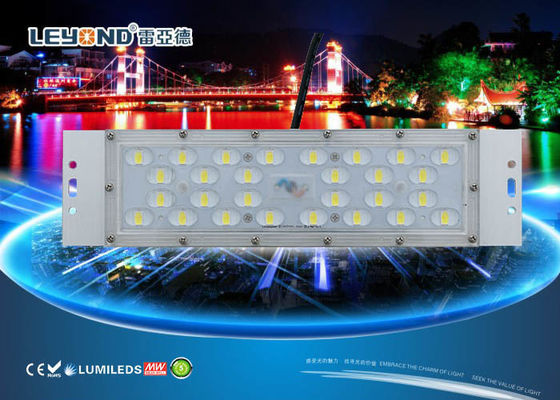

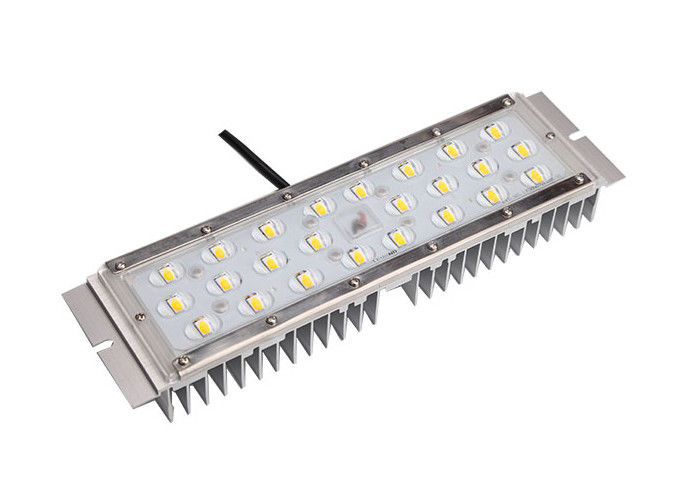

Luxeon 5050 Chip Module Light Outlook:

Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W

Operation and Storage Condition



Operation Ambient Temperature -40 to +50°C, Relative Humidity 20~90%

Storage Ambient Temperature -40 to +60°C, Relative Humidity 5~95%

Mounting Height : Suitable for 5~20m height





Assembly and Installation



Black Line : V+/ R+G+B

Green Line: V-/ G

Red Line : V-/R

Yellow Green Line: V-/B



Package



Inner Carton = 2 Set Weight:1.3KG

Outer Carton= 40 Set Weight:27.0KG

Inner Carton Size : 306mm X 83mm X67mm

Outer Carton Size : 365mm X 322mm X 354mm

 Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W

Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W

Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W

Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W

Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W

Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W

Led Light Module Luxeon 5050 Chip Multi-Angle Viewing High Efficiency:160lm / W
Application:
1) It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and
so on.
2) New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure
Mercury Lamp, and Metal Halide Street Lamps. Etc.



Features:
- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the
  brightness and illumination uniformity.
- There are 24°, 36°,60°, 90° beam angle options for the Lens.
-  Scientifically-designed heat dissipater with much better cooling effect.
-  High luminous efficiency, Whole lamp output light effiency >130LM/W.
-  High quality power supply, input voltage 100-240V. The power efficiency is more than 90%,
    power factor greater than 0.98, UL compulsory certification.
-  For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation
   ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage
    fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current,
-  Over Voltage, Over Heat, Thunder Protection.
-  Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No
   filament and glass frames, avoid break of the traditional lamp,without harm to the human
    body.
-  The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions,
eliminated the low color temperature of the sodium lamp which cause the depressed mood.
