Product Details:
Payment & Shipping Terms:
|
| Power: | 150W | Voltage: | AC100v ~ 240v 50/60HZ |
|---|---|---|---|
| Meterial: | Aluminum+PC Cover | CCT: | 2700k - 6500k |
| Bean Angle: | 120 Degree | LED Type: | Luxeon 3030 Chips |
| Dimension: | 330*328*99 | CRI: | >80 |
| Life Span: | 50,000hrs | Warranty: | 5 Years |
| Driver: | Meanwell ELG-150-36B | ||
| High Light: | low bay lighting,led low bay lights |
||

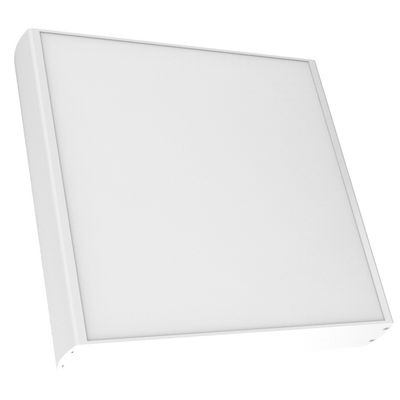

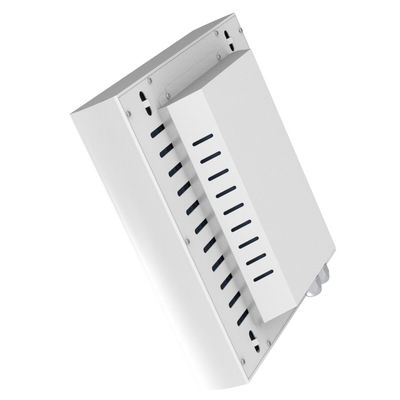

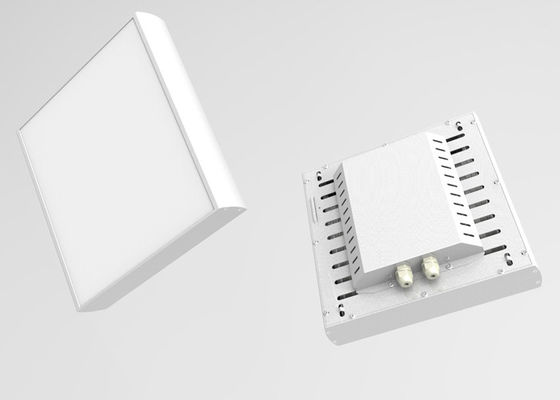

CRI>80 Warm White Dimmable Low Bay Led Shop Lights With 5 Years Warranty
Brief Describtion:
Material: Alumium+PC cover.
Beam Angle: 120 Degree
CCT: 2700-3000K/4000-4500K/6000-6500K.
Lumens: 19500LM (150w)
IP Rating: IP40
Certification: CE-EMC, CE-LVD, RoHS.
Application:
It is applicable to Indoor Stadium lighting ,warehouse lighting, Workshop lighting,
factory lighting,Supermarket lighting and so on.
New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure
Mercury Lamp, and Metal Halide Street Lamps. Etc.
Features:
1. High Lumen output, Whole lamp efficency>120lm/w.
2. Diverse beam angle can be chosen, meet various application.
3. Flexible installation. Both can be install with handle or sling.
4. Long lifespan, 5 years warranty assurance.
5. Perfect mounted on high location in warehouse/parking place/workshop,etc.
6. 1-10V Dimmable and microwave motion sensor both available.
Specification:
| Power | LY-HB55150-XX |
| Input voltage | AC100-240V, 50/60HZ |
| LED chip | Luxeon 3030 chip |
| LED quantity |
210pcs |
| LED Driver | Meanwell ELG-150-36B |
| Beam angle | 120d |
| CRI | >80 |
| CCT | 2700-6500K |
| Power factor | 0.95 |
| IP grade | IP40 |
| Product Size | 330*328*99mm, N.W:6.0kg |
| Warranty | 5 years |
| Lifespan | 50,000hrs |
Operation and Storage Condition:
1. Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2. Input Voltage 100~240V AC, 50/60Hz
3. StorageAmbient Temperature -20 to +65°C, Relative Humidity 5~95% 4. Mounting Height : Suitable for 8~30m height
Optional function:
Microwave motion sensor controlling
lThe sensor is innovative and active motion detectors with HF system 5.8GHz. Motion
can be detected through plastic, glass and thin non-metal materials.
The sensors allow energy saving without compromising comfort. When used in
combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step
dimming function, which is perfect for use in some areas that requires a light change
notice before totally switch off.
Automatic dimming when used in combination with 1-10V dimmable LED drivers or
ballasts. Built-in adjustable daylight sensor.
Wide detection area, range up to 16m in diameter and mounting height 15M Max
Trade terms
Payment : T / T , western Union or Paypal
Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea
Delivery time : 7 - 15 working days for normal orders
Port : Shenzhen , China
A: Yes, we welcome your sample order to test and check the quality. Mixed samples are also acceptable.
A: Low MOQ, 1 pcs sample is available.
Q4. Do you have guarrantee for the lights?
A: Yes, we offer 3-5 years warrranty for our lights.
A: Yes. Please inform us the logo detials formally before our production and help to comfirm after we do the sample.
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
Thanks for your time. If any interest please feel free to contact our sales team. Thank you very much.
