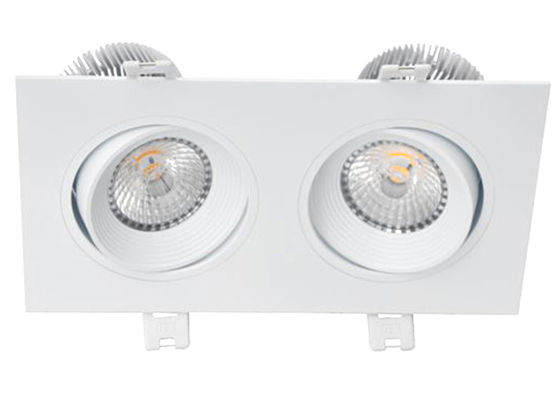

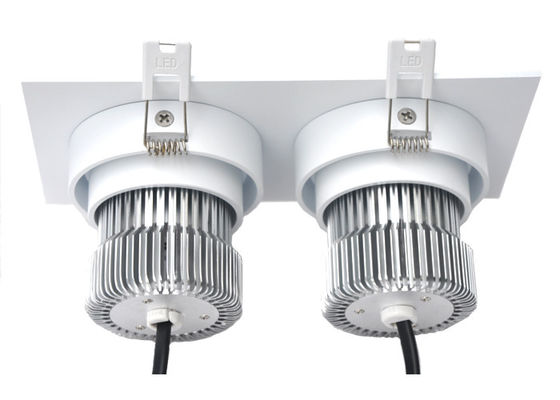

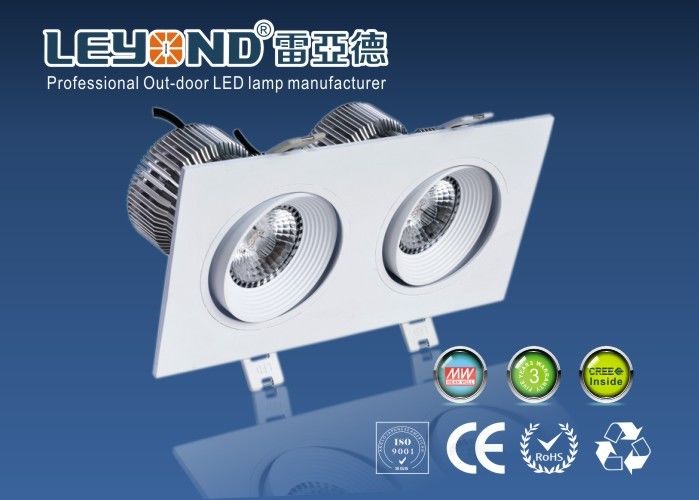

Double Heads LED Downlight

Double Heads LED Downlight
Double Heads LED Downlight Double Heads LED Downlight Double Heads LED Downlight

Large Image :  Double Heads LED Downlight

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEDYOND
Certification: CE ROHS
Model Number: LY-CL10025-XX

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 7-10 Working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 Pcs/Month
Detailed Product Description
Material: Aluminum And PC Power: 12W-30W
Input Voltage: 85-265V AC Chip: CREE CXA COB
Dimmable: Yes Warranty: 3 Years
High Light:

indoor led downlight


led down lamp

Double Heads LED Downlight With CREE COB And Anti Glare Lens



Product Features:


● Cree COB LED Chip inside,High light output>100Lm/W,High CRI>80


● Patent DIWL® Lens,Anti-glare Diamond quality
● The thermal module and the fins air duct a 3D inter-cool system
Absolutely unique mold, make your lighting special and fantastic
World Top class LED driver-Meanwell Types Inside


● 3 Years warranty , leave no worries about quality, enjoy the qualified green life


Illuminant parameters:


● Led Type:  CREE CXA 1507/1512 COB

● Input Voltage:100-240V AC, Power factor (PF) :≥0.95

● CCT: 2700-6000K

● Color index (CRI) :≥80Ra

● Beam angle: 10/24/38/60/90 degree

● LED life span: 5,0000 hours, Warranty: 3 Years


Par NO Parameter LY-CL1224XX LY-CL1230XX LY-CL1236XX
Inptut voltage AC85V~265V  50/60HZ
Sysem consumption(W) 12*2 15*2 18*2
Luminous flux(lm) 2200-2400 2700-3000 3600-4000
LED quantity(pcs) CREE1507 (COB) CREE1512 (COB) CREE1512 (COB)
Beam Angle 10°/24°/38°/60°/90°
CRI   >80
Color Temperature(CREE) 2700k,3000k,3500k,4000k,5000k
Meterial Aluminum+PMMA
Driver External power supply
Luminous efficiency(lm/w) >90
Lifespan(hrs) >50000
IP Rating IP30
Size of holes(mm) Length:170-180MM Width85-95MM Length:170-180MM Width85-95MM Length:170-180MM Width85-95MM
Downlight Size(mm) 195x105x65 195x105x75 195x105x85
Net Weigh(kg) 0.85 0.9 0.95
Package Size (White Box)(mm) 198×130×115 198×130×115 198×130×115
Package Quantity(Pcs) 20 20 20
Packing(CM) 42.5x68x26 42.5x68x26 42.5x68x26
Gross Weigh(kg) 18.5 19.5 20.5


Application area:

It can totally replace fluorescent lamp, applications in various areas of lighting. Such as hotels,bars, supermarkets, restaurants, museums, exhibition halls, Conference room, shops, warehouses, home lighting and other place.


Product Size(Unit:MM):

Double Heads LED Downlight 0

Aging test:


100% of all lamps will be tested by auto testing line which including different voltage, and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Each lamp should pass all these QC procedures  before shipping to customer.


Company Information:


Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrates and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, LED Streetlight,LED Hight Bay light and LED Billboard Light etc. Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.




1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when
choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and
other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyond
always treat the clients benefit as the most important thing. So, we use the top brand
material to produce high quality product.

3. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty policy, please contact our sales representatives.
