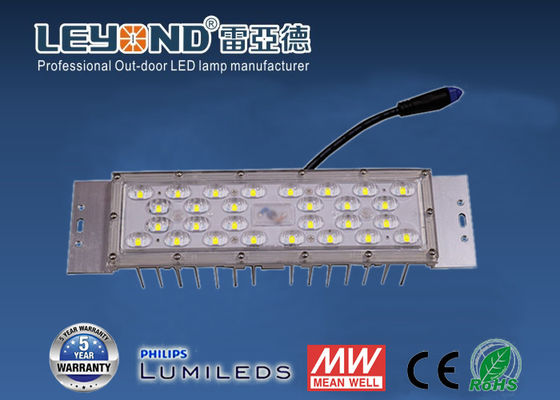

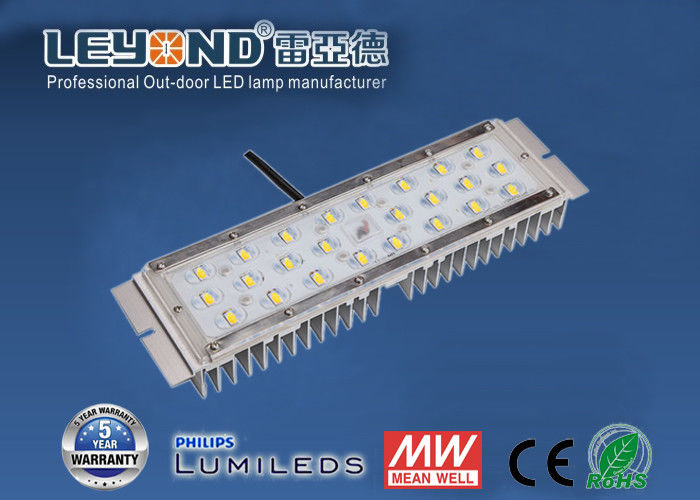

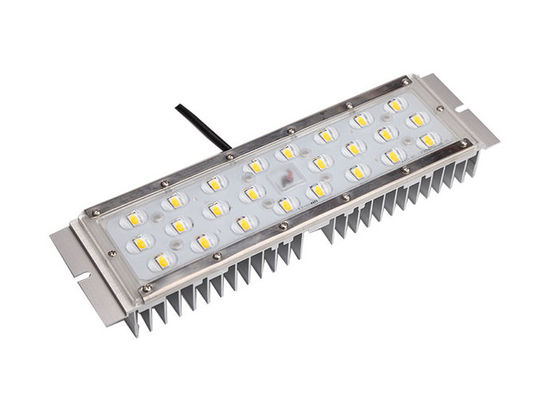

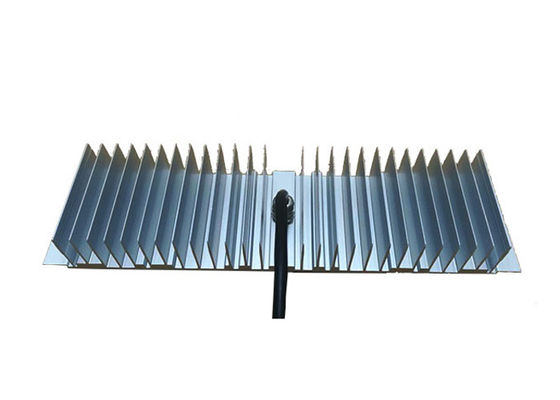

IP66 Single LED Module Lights

IP66 Single LED Module Lights
IP66 Single LED Module Lights IP66 Single LED Module Lights IP66 Single LED Module Lights IP66 Single LED Module Lights

Large Image :  IP66 Single LED Module Lights

Product Details:

Place of Origin: Shenzhen of China
Brand Name: Leyond
Certification: CE RoHS
Model Number: LY-ST51045XX

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD20/PC-USD27/PC
Packaging Details: 20pcs per carton, 22kg/carton
Delivery Time: 2-5 days for samples, 7-20 days for bulk orders
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100000pcs per month
Detailed Product Description
Product Name: LED Module Wattages: 30W, 40W, 45W Can Be Adjustable
IP Rating: IP66 LED Brand: Luxeon 5050SMD
Input Volt.: 29.5V-31V Input Current: 0.96A-1.5A(MAX)
CCT: 2800K-6500K Beam Angle: 150x65degree For Street Light
High Light:

led driver module

,

led modular





30W 40w 45w 170lm / W IP66 Single Led Module Lights For Led Street Lamps











Features:



• High luminous efficiency,30W Luminous flux5100lm; Whole lamp output light effiency >160LM/W.

• Unique second-time light distribution, no light pollution,no glare, no flickering.

• Modular structure making the lamp more easier and faster to be designed ,easy to do replacement and maintaining.A variety of combinations can multiply increase the brightness and illumination.

• Modular concept, piece combinations as your require. Can satisfy any number of lanes and width combinations. With IP66 Protection, adapt to any weather conditions.

• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

• The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood.





Pictures:

IP66 Single LED Module Lights 0



IP66 Single LED Module Lights 1



Specification Sheet









IP66 Single LED Module Lights 2IP66 Single LED Module Lights 3









IP66 Single LED Module Lights 4IP66 Single LED Module Lights 5IP66 Single LED Module Lights 6





6.Assembly and Installation



Assembly-Electricity



IP66 Single LED Module Lights 7





The entire series of LED Modular voltage range is DC44~52 volts.



All LEDs are in series connecting, considering different using conditions and places in the applications, please match with a constant current driver to drive the lamp.



7.Remark





1,The led module adopt special techniques to keep enough light effiency, please do not open the light engine ,otherwise there wont have reparing gurantee.



2,When customers in the process of matching the power supply,please match with the surge protector to ensure the safety.



3,The radiator has its own design peak, please do not exceed the maximum use of current so that ensure the light efficiency and lumen.



4,All LEDs are in series connecting, considering different using conditions and places in the applications, please match with a constant current driver to drive the lamp .





Factory Introduction:



IP66 Single LED Module Lights 8IP66 Single LED Module Lights 9IP66 Single LED Module Lights 10IP66 Single LED Module Lights 11



Lighting Project:



IP66 Single LED Module Lights 12IP66 Single LED Module Lights 13IP66 Single LED Module Lights 14IP66 Single LED Module Lights 15IP66 Single LED Module Lights 16





Quality  Warranty



Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.

It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.

Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.



Warmly welcome your further inquiry on our products, Pricelist, Data Sheet, IES files, Dialux Simulation support.
