Product Details:
Payment & Shipping Terms:
|
| Power: | 250w (100w,200w,200w Available) | LED Chip: | Bridgelux Flip Chip |
|---|---|---|---|
| Driver Brand: | / Meanwell | PF: | >0.95 |
| CCT: | 2700-3000K,4000-4500K,6000-6500K | Beam Angle: | 120degree |
| Material: | Aluminum+tempered Glass | Luminous Flux: | 27,500 |
| High Light: | high power led floodlight,rgb led floodlight |
||

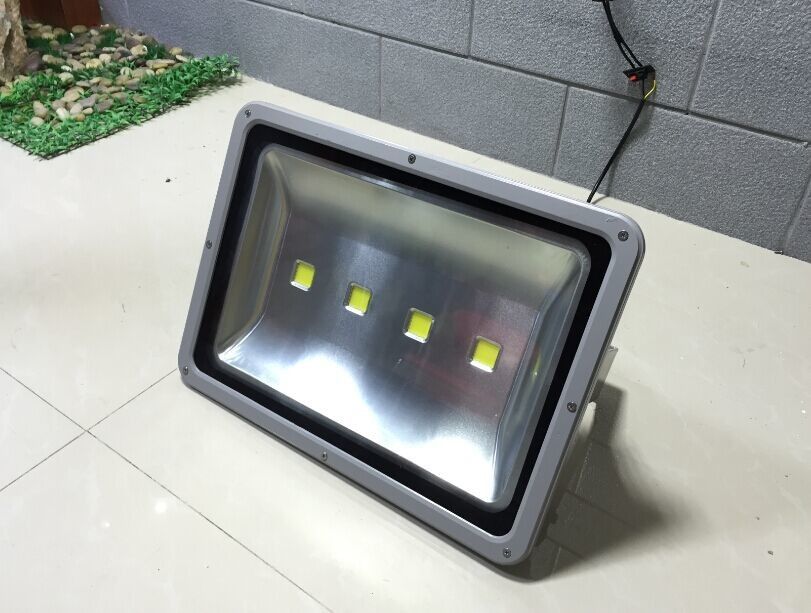

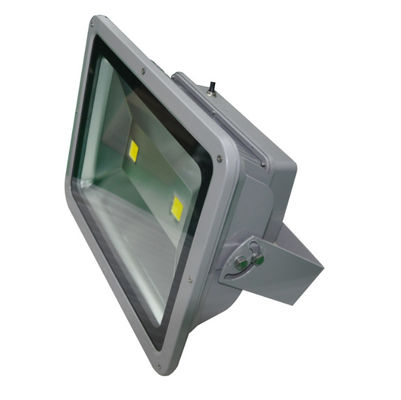

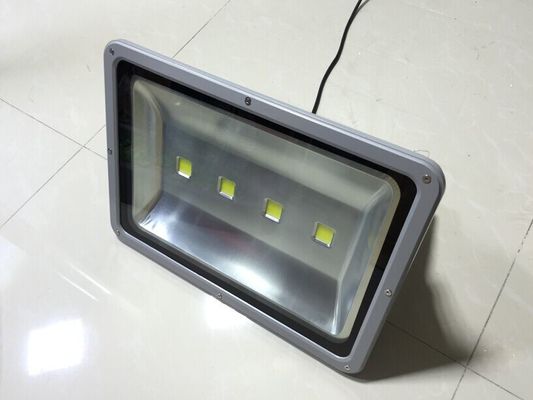

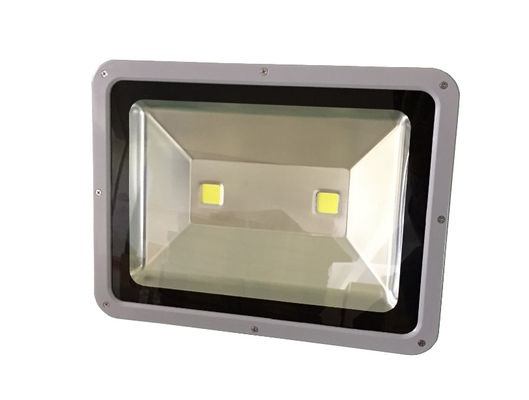

Led Flood Light 250w Specification:
| Product Model | Power | LED Quantity | Luminous Flux | Light Efficiency | CRI | CCT | Beam Angle |
| LY-FL10250-XX | 250W | 4*70w module | 27,500 LM | 110 LM/W | >70 | 2700-6500K | 120d |
| Product Model | Input Voltage | Product Size | IP Grade | Life Span | Material | Power Range |
| LY-FL10250-XX | AC100-240V | 453X325X200mm | IP65 | >50,000 hrs | Alumium+Glass | 100-250w |
Features:
1) The wire-bonding free (without wire-bond) flip chip can reduce defect risks during packaging and operations.
2) Improvements in heat dissipation,which in turn extends chip lifetime.
3) Electrodes on the flip chip directly contact the ceramic substrate,and omits the need for sapphire substrate used in heat dissipation.
4) Over Current, Over Voltage, Over Heat, Thunder Protection
5) Long lifespan over LED 50,000 hrs.
Application:
1) Projector / Floodlight.
2) Tunnel Lighting / Pathway Lighting / Park Lighting.
3) Sport center,Signboard Lighting.
Operation and Storage Condition:
1) Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2) Input Voltage 100~240V AC, 50/60Hz.
3) Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
4) Mounting Height : Suitable for 8~10m height.
Quality Control:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
Operation and Storage Condition
1) Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2) Input Voltage 100~240V AC, 50/60Hz
3) Storage Ambient Temperature -20 to +65°C, Relative Humidity 5~95%
4) Mounting Height : Suitable for 5~12m height
FAQ:
