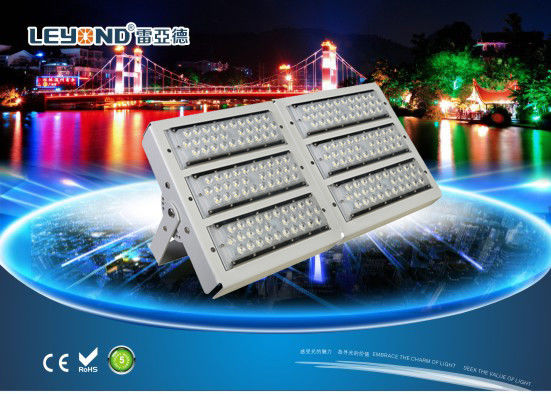

AC85-265V Waterproof LED Flood Lights Outdoor Luminaire Tunnel Lamp Meanwell Driver

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

AC85-265V Waterproof LED Flood Lights Outdoor Luminaire Tunnel Lamp Meanwell Driver

AC85-265V Waterproof LED Flood Lights Outdoor Luminaire Tunnel Lamp Meanwell Driver
AC85-265V Waterproof LED Flood Lights Outdoor Luminaire Tunnel Lamp Meanwell Driver

Large Image :  AC85-265V Waterproof LED Flood Lights Outdoor Luminaire Tunnel Lamp Meanwell Driver

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS
Model Number: LY-ST23300PW

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: contact me
Packaging Details: 1pcs/carton
Delivery Time: 5-7 working days for sample order,7-15 working days for normal order
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
Led Chip: Bridgelux Or Luxeon Material: Aluminum
Voltage: AC100-240V IP Rating: IP66
Driver Brand: Meanwell Driver Working Life: 50000H
Lumens: 60000
High Light:

led outdoor flood lighting

,

outside led flood lights

AC85-265V 100W 200W 300W 400W Waterproof LED Flood lights Outdoor luminaire Tunnel light





Application


It is applicable to playground lighting ,warehouse lighting,
plaza lighting, tunnel lighting and so on.
  New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.





Electrical Specifications:

Par NO

Parameter

LY-ST23240PW LY-ST23300NW
Input voltage AC100V~240V 50/60HZ
System consumption(W) 240 300
Luminous flux(lm) 39600 48000
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Beam Angle 25°,60°, 90° 25°,60°, 90°
CRI >75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >160
Dimmable YES&NO YES&NO
IP Rating IP66
Net Weigh(kg) 9.0 9.0
Size(mm) 640*316*76 640*316*76

AC85-265V Waterproof LED Flood Lights Outdoor Luminaire Tunnel Lamp Meanwell Driver 0

Features


 Adoption Lepower exclusive ZAG Lens with light transmittance up to 98%
  Perfect Light Distribution Solution:Adoption of integrated peanut shell optic lens, enhance the brightness and illumination uniformity.
  High luminous efficiency, Whole lamp output light effiency >130LM/W.
  high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
  For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection
  Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body;
  The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.



FAQ:



1. How to choose LED light source?

A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.



2. Why choose Leyond Lighting?

A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.



3. What can Leyond offer?

A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED downlight, LED ceilling light, LED spot light, LED tube, LED module, LED Street Light, ect.



4. How to place an order?

A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.



5. How long will be the lead time?

A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.



6. How long will the warranty period last?

A: We usually offer 2 years free warranty for Bridgelux products. More detailed warranty policy, please contact our sales representatives.
