Product Details:
Payment & Shipping Terms:
|
Solar Panel: | 30W /18V Monocrystalline Silicon | CRI: | 70/80 Ra |
---|---|---|---|
Chip Brand: | LUXEON 3030 | CCT: | 2700-6500K |
LED Quantity(PC): | 64 | Operating Time: | Full Power >12 Hours ,Intelligent Mode 3-4 Days |
Control Mode: | Light Control + Motion Sensor | Material: | Die Casting Aluminum |
Luminous Efficiency(lm/w): | 140 | ||
High Light: | IP66 LED Solar Garden Light,30Ah Outdoor Garden Spotlights |
LED Solar Garden Light 170 LM/W 20% Transfer Rate Smart Control
Parameters | LY-GL10020WW | LY-GL10020NW | LY-GL10020PW |
Battery | 18650 lithium battery 12V 20 Ah | 18650 lithium battery 12V 20 Ah | 18650 lithium battery 12V 20 Ah |
Beam angle | 100° X 100° | 100° X 100° | 100° X 100° |
Pole diameter | 60/76/83mm | 60/76/83mm | 60/76/83mm |
Light output | 20W | 20W | 20W |
Luminous flux(lm) | 2700 | 3000 | 3000 |
CCT | Warm white:2700-3200K | Neutral white:4000-4500K | Pure white:5000-6500K |
Lifespan(h) | >50000 | >50000 | >50000 |
IP Rating | IP66 | IP66 | IP66 |
Installation height | 3~5M | 3~5M | 3~5M |

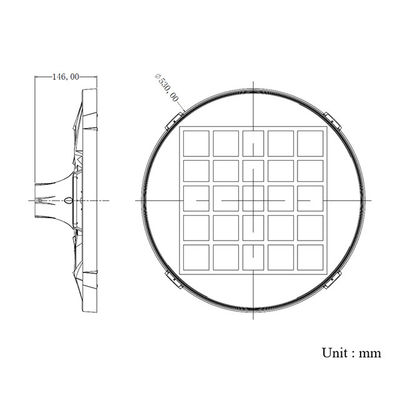

Size(mm) |
L530xW530xH146mm L20.87*W20.87*H5.75inch |
L530xW530xH146mm L20.87*W20.87*H5.75inch |
L530xW530xH146mm L20.87*W20.87*H5.75inch |
Net Weigh(kg) | 8 | 8 | 8 |
Package Size(mm) |
L652*W602*H130mm L26.18*W23.62*H5.12inch |
L652*W602*H130mm L26.18*W23.62*H5.12inch |
L652*W602*H130mm L26.18*W23.62*H5.12inch |
Package Quantity(PC) | 1 | 1 | 1 |
Gross Weigh(kg) | 9.2 | 9.2 | 9.2 |
Features
1>It used of alloy material as the main structure,with good rust prevention,corrosion protection.
2>The wireless remote control setting device,adjustable lighting time ,lighting power ,automatic detection of battery voltage,read light power parameters,a human body induction function,as long as people go through when full power lighting,no automatic power down alf, restore energy saving mode.
3>time control + light sensor control+ motion sensor control
4>Motion and light sensor built in: solar street light goes on at dusk at 20% brightness (Brightness adjustable). Can go from 20% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge. 1,Bright: motion activates for lighting when motion is detected for security light and to save battery; 2,DIM: 20% lighting for saving power when no motion(Brightness adjustable); 3,Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).
5>The intergration of design ,no cable,the installation is very convenient.
6>The Mono-crystalline solar panel,LED lights,lithium battery,intelligent controller integrated Aluminum Alloy shell.
7>It used of lithium iron phosphate battery,fight the high temperature,keep long life.
8>When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.
Applications
1. Sidewalk,
2. square,
3. park,
4. community,
5. industrial park.
