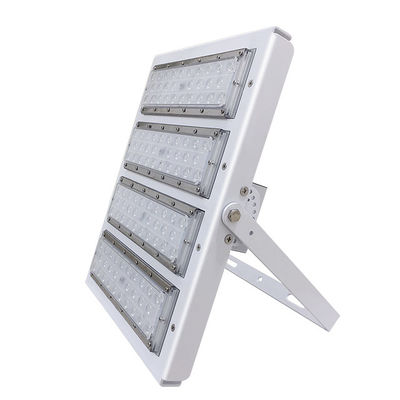

160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor

160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor
160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor 160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor 160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor 160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor

Large Image :  160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROSH,ISO9001:2008
Model Number: LY-ST23160XX

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Carton box package
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 6000pcs/month
Detailed Product Description
Long Distance LED Flood Light: 160W Bridgelux COB LED Chip: Meanwell Driver
Beam Angle: 25/60/90/150*65 LED Luminous Efficiency: >=160lm/w
Power Factor: >=0.95 Warranty: 5 Years
High Light:

high power led floodlight

,

rgb led floodlight

160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor



160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor 0



120W,160W,200W LED Flood Light Technical Data:

Input Voltage 100-240V AC 50/60Hz
Power factor ≥0.95
Power Efficiency ≥85%
LED Power 120W
160W
200W
LED Luminous efficiency ≥160lm/W
CRI Ra>70
Beam Angle 25° 60º 90° 150*65°
Color Temperature Warm white WW 2700-3000K
Neutral white NW 4000-5000K
Pure white PW 5000-6500K
R/G/B/Other optional
Operatinal condition Temperature:-30℃~60℃
Humidity:10%-90%RH
Model Product Dimension(mm)

Power

(W)

LED

luminous flux

N.W
LY-ST24120PW L320xW310xH76 120W 19800lm 4.5KG
LY-ST23160PW L320xW410xH76 160W 26400lm 12KG
LY-ST23200PW L320xW410xH76 200W 00lm 12KG



























































Application:

1. Projector / Spotlight/ Tunnel Lighting

2. Pathway Lighting / Park Lighting

3. Garden Lighting/Backyard Lighting





160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor 1



Specification of Modular Led Flood light

Par NO

Parameter

LY-ST23160PW LY-ST23160NW LY-ST23160WW
Input voltage AC100V~240V 50/60HZ

System

consumption(W)

160 160 160
Luminous flux(lm) 26400 26400 26400
Chip Brand

LUXEON 5050

BRIDGELUX 5050

LUXEON 5050

BRIDGELUX 5050

LUXEON 5050

BRIDGELUX 5050

Beam Angle

25°60°90°

150x70°

25°60°90°

150x70°

25°60°90°

150x70°

CRI >75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
LED Driver MEAN WELL ELG-200 / HLG-240H

Luminous

efficiency(lm/w)

>160
Dimmable YES&NO YES&NO YES&NO
Net Weigh(kg) 5.6 5.6 5.6
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 6.2 6.2 6.2






Outlook of Led FloodLights

160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor 2



Features:

1)Adoption LEYOND exclusive Lens with light transmittance up to 98%.LUXEON 5050 is a multi-die package LED that provides high luminance from a single package to enable cost effective, single optic
and directional fixture designs. LUXEON 5050 uses an industry standard 5050 surface mount package with smallest round Light Emitting Surface (LES). LUXEON 5050 comes in 70CRI, 80CRI and 90CRI with a wide range of CCTs, and offers hot-color targeting to ensure that the LEDs are within color target at application conditions of 85°C



2.Constant Voltage + Constant Current mode output Metal housing design with functional Ground Built-in active PFC function No load/ Standby power consumption <0.5W IP67 / IP65 rating for indoor or outdoor installations Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI; Auxiliary DC output Typical lifetime>50000 hours 5 years warranty



3.The moulds of lens are opened and designed by ourselves and we’ve made big progress on the technological process and achievedgoals to be small light decay, high illumination and good heat dissipation. The light transmittance of our lamp is 98%, the luminous efficiency of the whole lamp is more than 160 LM/W and the light decay for more than 10000 hours is less than 8%.





4)For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.



5)Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.



6)The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.



160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor 3



Distribution Curve of Module Led Flood Light

160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor 4

Operation and Storage Condition:

1.Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%

2. Input Voltage 85-265V AC, 50/60Hz

3. Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%

4. Mounting Height : Suitable for 8~10m height

Certificate:

  • The Whole Spotlight Certificated with ROHS
  • The Whole Spotlight Certificated with CE
160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor 5
