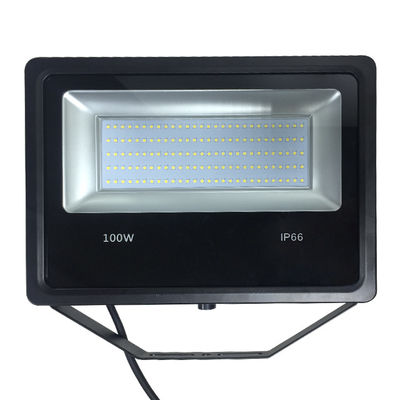

IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle

IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle
IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle

Large Image :  IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle

Product Details:

Place of Origin: China
Brand Name: leyond
Certification: CE,ROSH,ISO9001:2008
Model Number: LY-FL36100XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 6000pcs/month
Detailed Product Description
Long Distance LED Flood Light: 100W Beam Angle: 120
LED Luminous Efficiency: >=120lm/w CRI: >70
Warranty: 3 Years Color: Gray/black/customizable
High Light:

high power led floodlight

,

led outside flood lights

IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle
Features:
1. Multi-Chip on Lead Frame, Single Module LED Package Design
2. System Design Integrating Power Supply, LED Light Engine, and Heat Sink
3. Over Current, Over Voltage, Over Heat, Thunder Protection
4. Choice of Correlated Color Temperatures(Specification Re-Defined Accordingly)
5. Long lifespan for LED 50,000 hrs
6. IP Rating: IP65.
7.100% Recycle, No Pollution, and UV, IR
100W LED Flood Light technical data:

ModelLY-FL36100PW
Input Voltage100-240V AC 50/60Hz
Power factor≥0.95
Power Efficiency≥85%
LED Power100W
LED Fixture Power117W
LED Luminous efficiency≥120lm/W
LED luminous flux1200lm

Average Iilluminance
Facula Area

6M=39lux
8M=25lux
10M=16lux
6M=10x10M
8M=14x14M
10M=17x17M

Beam Angle120º
CRIRa>70
Color TemperatureWarm white WW 2700-3200K
Neutral white NW 4000-4500K
Pure white PW 5000-6000K
R/G/B/Other optional
Operatinal conditionTemperature:-40℃~60℃
Humidity:10%-90%RH
Product Dimension(mm)L393xW285xH110
N.W

4.5KG































Photometry
IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle 0
Operation and Storage Condition
Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
Mounting Height : Suitable for 8~10m heigh
Specifications:



Item



LY-FL36100XX



Keyword



100w led flood light



Lamp Lumen



>20000lm



LED Brand



Lumileds SMD 3030 LEDs



LED Driver



Meanwell CLG



Warranty



3 years



Input Voltage



AC100-240V, 50-60Hz



Power Factor



>0.9


Certificate
LED Lighting Certificated with CE
The Whole Floodlight Certificated with CE

IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle 1

Advantages:

  • Integrative design for heat sink and housing,The LED is closely connected to the surface. The heat from the LED is removed through the heat dissipation wing and also by air ventilation.​
  • The surface is passed through anodic oxidation treatment.Its structure is compact and beautiful. It can meet the requirement of IP65. It has good capacity like antisepticising,waterproofing, and dust Prevention.
  • Aluminium alloy diecast baking varnish heat sink, clear temprered glass, ensures good heat dissipation.
  • Use toughened glass and the light transmittance is about 93%.
  • VDE/UL listed rubber cable with cold-pressed terminal.
  • Safe and easy for installation and maintenance.
  • High heat conductivity,low luminous decay,pure light color and no ghosting.
  • NO UV and near-IR radiation in the light beam

IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle 2
Packing
IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle 3
