High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips

High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips
High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips

Large Image :  High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS,ISO9001:2015
Model Number: LY-ST23300XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 6000pcs/month
Detailed Product Description
LED Modular: 300W Driver: Meanwell
IP Rating: IP66 Warranty: 5 Years
Operational Condition: Temperature: -40 -- +60 Degree / Humidity: 10%-90%RH Working Life Time: 100000H
Lumen: 160lm/w Certificate: CE ROHS LVD
High Light:

led driver module

,

led modular

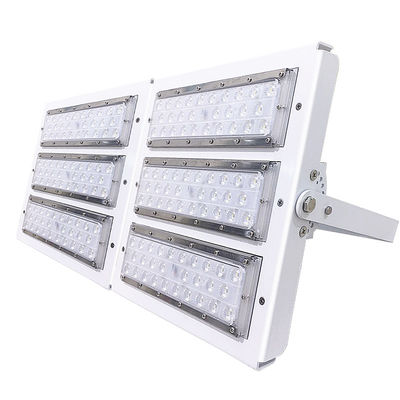

High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips



1. Outlooking



High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips 0

High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips 1

2. Specification



Par NO

Parameter

LY-ST23240PW LY-ST23300NW
Input voltage AC100V~240V 50/60HZ
System consumption(W) 240 300
Luminous flux(lm) 39600 48000
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Beam Angle 25°,60°, 90° 25°,60°, 90°
CRI >75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >160
Dimmable YES&NO YES&NO
IP Rating IP66
Net Weigh(kg) 9.0 9.0
Size(mm) 640*316*76 640*316*76



3. Pictures



High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips 2

High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips 3



4. Application



• It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.

• New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.

High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips 4

High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips 5



5. Photometry



High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips 6



6. Operation and Storage Condition



1. Operation Ambient Temperature -40 to +50°C, Relative Humidity 20~90%
2. Input Voltage 100~240V AC, 50/60Hz
3. Storage Ambient Temperature -40 to +65°C, Relative Humidity 5~95%
4. Mounting Height : Suitable for 10~25m height



7. Package



Inner box Size: 740mm×420mm×134mm



High efficiency 6x50W Modular LED Flood Light 300W with Luxeon 5050 chips 7
