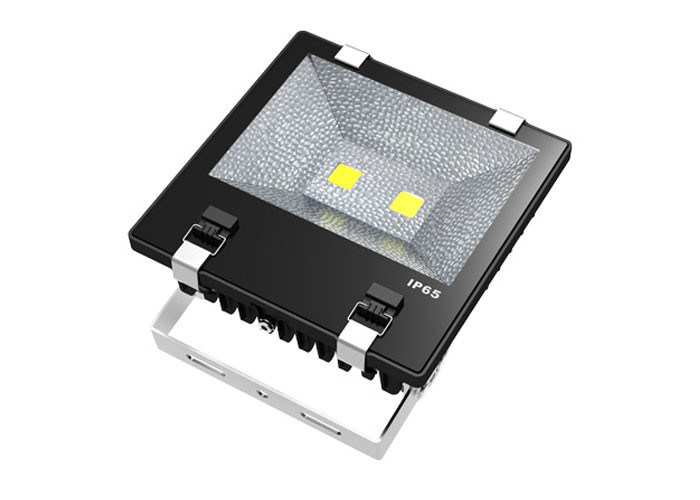

High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light

High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light
High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light

Large Image :  High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS&ISO
Model Number: LY-FL27120XX

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: carton box package
Delivery Time: 5-12 working days
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 6000pcs/month
Detailed Product Description
ASA LED Flood Light: 120W 100-240V AC 50/60HZ Power Factor: >=0.95
LED Luminous Efficiency: >= 110lm/W CRI: >70
Beam Angle: 120º Bridgelux Chip: Meanwell CLG/HLG Driver
High Light:

led outdoor flood lights

,

led outdoor flood lighting

High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light



High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light 0



Features:

  • System Design Integrating Power Supply, LED Light Engine, and Heat Sink
  • Over Current, Over Voltage, Over Heat, Thunder Protection
  • Choice of Correlated Color Temperatures (Specification Re-Defined Accordingly)
  • Long lifespan for LED 50,000 hrs
  • 100% Recycle, No Pollution, and UV, IR



High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light 1

Application area:

  • Projector / Floodlight
  • Tunnel Lighting / Pathway Lighting / Park Lighting
  • Signboard Lighting



Product Dimensions:

High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light 2



Product Specification:

Power: 120w
Material:  Aluminum Alloy/PC
Chip: Epistar
Light efficiency: 80-90Lm/w
Color Temperature:  2700 -3000K 4000-4500K 5000-6000K
CRI:  Ra70
Beam Angle:  120 degree
PF:  >0.95
Working Life:  ≥ 50000 hrs
Warranty:  3 years
Dimensions
Finishing Color:  Black
Wire connection:  L(Brown);N(Blue);G(Green/Yellow)
SHAPE:  Rectangle
Package:

2pcs/carton

Work Environment
Input Voltage:   AC100-240V/50-60Hz
Operating Temperature:  -40~ + 60°C
Application
Application:

Projector / Floodlight
Tunnel Lighting / Pathway Lighting / Park Lighting
Signboard Lighting

Recommend mounting height:

 3-6m


Assembly-Electricity
    Ø Blue : Neutral
    Ø Brown : Line
    Ø Yellow-Green : Ground

High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light 3



Polar Diagram of Luminance:

High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light 4

High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light 5



Package:

1 Set = 405mm×405mm×265mm 3.72Kg
1 Carton = 2 Set Size: 430mm×430mm×600mm  16.8Kg

High-Efficiency LED Waterproof Energy-Saving Outdoor 120W Led Flood Light 6

Installation:
Installation tool:  A adjustable wrench group.
Installation Steps:
① Tighten Axle Screw, and Locate Screw
② Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure
The installation notices:
① No necessary using other devices for LED Flood light installation such as stabilizer,  regulator and so on
② Opening the light and lifting the buckle is unallowable. Soaking in the water is unallowable



Warning:
Do Not Use Other Devices for LED Floodlight Installation Such as Stabilizer,
Regulator …etc
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer



130lm/w IP65 70W 80W 100W LED Flood Light Fixture 4000K/5000K 175 Watt MH Equivalent 4





FAQ:

1. May I have a sample for the light please?
--- Sure,mixed power is also support.

2. How many watts does this light provide?
--- 80w, 100w,120w, 150w, 180w

3. Which shipping way do you have?
--- DHL, FEDEX, UPS and TNT are all support. By sea or by air can be available based on your request.

4. What is your warranty?
--- We are provide 3-5 years warranty which based on different materials.

5. What is the delivery time?
--- Normally, 5-7 days for sample, 15-20 days for bulk order. If on special condition, the delivery time can be discussed.

6. Do you make OEM ?
--- Yes, OEM orders are warmly welcomed.

7. Are you the manufacturer?
--- Yes, we are professional manufacturer for led lighting since 2008. And have completed design-delelop-sales-service system.
