High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

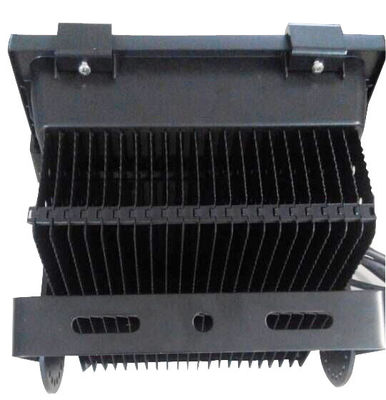

High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light

Product Details:

Place of Origin: Guangdong,China
Brand Name: Leyond
Certification: CE,RoHS,UL
Model Number: LY-FL18200-UL

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD120-USD225/pcs
Packaging Details: strong foam inside and professional carton for exporting
Payment Terms: Western Union, T/T
Supply Ability: 100000pcs per month
Detailed Product Description
LED Chip: Bridgelux LED Driver: Meanwell CLG/HLG
Certificate: CE,RoHS,UL Warranty: 5 Years
Wattages: 100w/140w/200w IP Rating: IP65
High Light:

led outside flood lights

,

rgb led floodlight

UL LED Flood Light 100W/140W/200W Bridgelux COB and Meanwell driver 5 years warranty

High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light 0High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light 1

High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light 2







Product Description





Product  Factory Price 200W LED flood light, CE ROHS,UL
Item   LY-FL 10200XX-BB /WW-BB
Power  200W 20000lm
Voltage  AC100-240V / 50-60HZ
PF  >0.95 THD<10%
Light Source  Bridgelux 45mil/ Epistar 35mil
Lumens  >90LM/W
Color Temp

 Cool white 6000-6500k

 Netural white 4000-4500k

 Warm white 2800-3300k

Working Voltage  AC 100-240V, 50-60 HZ
Beam Angle   120°
CRI  >70 Ra
Cable  1m PVC cable/ 3*1sqm GB standard Cable and Customered Plug
Dimensioin  315*310*187mm
Material  High quality ASA Black/ White housing





Product Features

- Full waterproof design
- High transmittance empered glass,transimittan 93%
- The radiating area 620cm²
- Multi-Chip on lead frame,single module LED package design
- System design integrating power supply,LED light engine ,and heat sink
- Over Current,Over Voltage,Over Heat,Thunder Protection
- Choice of correlated color temperatures
- Long lifespan for LED 50,000 hrs
- Complying with CE,ROHS, No strobing during working, Fast response (no delay) , No mercury

   vapour ,No radiation,No UV,No damage with frequency switching
- IP Rating: IP65
- Power supply direct touch the radiator,in light weight

High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light 3



Application area

Replacing traditional High Pressure Sodium lamp or metal halide lamp.

Widely used for advertise billboard,exterior wall of hotel and related landscape lighting.



Product Dimensions

High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light 4

Attentions
1 All dimension units are millimeters.
2 All dimension tolerance is ±1mm unless otherwise noted.



Product Specification

Input voltage: AC85V~265V
Freqency range: 50HZ~60HZ
Tatal harmouic distortion: ≤9%
Power facor: ≥0.9
Power efficiency: >85%
Sysem consumption: 10.5



Polar Diagram of Luminance

High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light 5





ISOLUX CURVE

High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light 6




Packaging & Shipping





High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light 7High Power COB 120LM/W Bridgelux Chip 5 Years Warranty Meanwell Driver IP65 LED Flood Light 8





Our Services



1.Factory price, large monthly output

2. 3 years warranty, high quality guarantee

3. professional Export service, easy to communicate and save your much time

4.Timely delivery, let you win biggest markets advantage

5.Satisfied After-sales service, to be your reliable supplier

6. any question will be get answer within 12 hours

7. R & D team, welcoem OEM and ODM order
