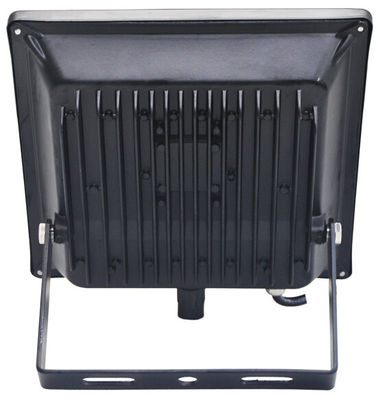

Slimline Epistar COB High Power Led Flood Light Outdoor Security Lighting 30 Watt

Outlook:

Photometry:

Features:

• Uniquely designed with plug&play PIR socket.The slim body with proffesional designed heat sink make this products very porpular in the market.

• Multi-Chip on Lead Frame, Single Module LED Package Design

• System Design Integrating Power Supply, LED Light Engine, and Heat Sink

• Over Current, Over Voltage, Over Heat, Thunder Protection

• Choice of Correlated Color Temperatures (Specification Re-Defined Accordingly)

• Long lifespan for LED 50,000 hrs

• 100% Recycle, No Pollution, and UV, IR

Operation and Storage Condition:

• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 3~5m height

Installation:

• The entire series of LED flood light are designed with wide range voltage, the voltage range is 85~264 volts, the frequency is 50/60Hz.

• Installation tool: A adjustable wrench group.

Installation Steps:

• 1.Tighten Axle Screw, and Locate Screw

• 2.Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure.

The installation notices

• 1.No necessary using other devices for LED Flood light installation such as stabilizer, regulator and so on.

• 2.Opening the light and lifting the buckle is unallowable. Soaking in the water is unallowable.

Warning:

• Do Not Use Other Devices for LED Floodlight Installation Such as Stabilizer, Regulator …etc

• Do Not Open the Light Engine

• Do Not Soak the Floodlight into Water

• Do Not Light up the System Without Grounding

• Do Not Use Dimmer

Applications:

• Projector / Floodlight

• Tunnel Lighting / Pathway Lighting / Park Lighting

• Signboard Lighting
