|LED Chip:||EMC 3030||Power Factor:||>0.9|
|Powers:||50w 80w 100W 150W 200W||Warranty:||5 Years|
commercial outdoor led flood light fixtures,
led security flood light

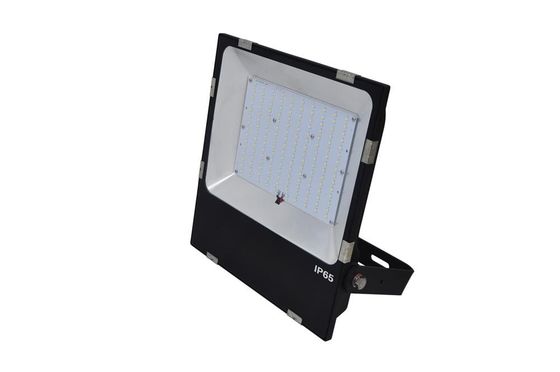

Outdoor Flat Pad Type 110 Lm / W 3030 Chip Waterproof LED Flood Lights 50w 80w 100W 150W 200W
• Projector / Floodlight
• Tunnel Lighting / Pathway Lighting / Park Lighting
• Signboard Lighting
Integrative design for heat sink and housing,The LED is closely connected to the surface. The heat from the LED is removed through the heat dissipation wing and also by air ventilation.
The surface is passed through anodic oxidation treatment.Its structure is compact and beautiful. It can meet the requirement of IP65. It has good capacity like antisepticising,waterproofing, and dust Prevention.
Aluminium alloy diecast baking varnish heat sink, clear temprered glass, ensures good heat dissipation.
Use toughened glass and the light transmittance is about 93%.
VDE/UL listed rubber cable with cold-pressed terminal.
Safe and easy for installation and maintenance.
High heat conductivity,low luminous decay,pure light color and no ghosting.
NO UV and near-IR radiation in the light beam.
Very low energy consumption,Lower thermal output.
Durable and long life(50000 hours).
|Light Fixture Luminance||>9000lm|
|Input Voltage||100~240V AC, 50/60Hz|
|Power Consumption||≦85W (of Total System)|
|EMI Grade||EMI Class A|
|Protection||Over Current/Over Voltage/Thunder Protection|
|Mechanical and System|
|Dimension||120 X 220 X 45 mm|
|Net Weight||1.5 Kg|
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 3~5m height
