Product Details:
Payment & Shipping Terms:
|
Power: | 10w, 20w, 30w, 50w | Input Voltage: | AC100-240V |
---|---|---|---|
LED Chip: | Epistar/Bridgelux Chip | Warranty: | 3 Years |
Housing Color: | Silver Or Black | Color Temperature: | 2800-3300K, 4000-4500K, 6000-6500K |
Detection Range: | 120degree | Detection Distance: | 12m |
High Light: | led outdoor flood lighting,outside led flood lights |

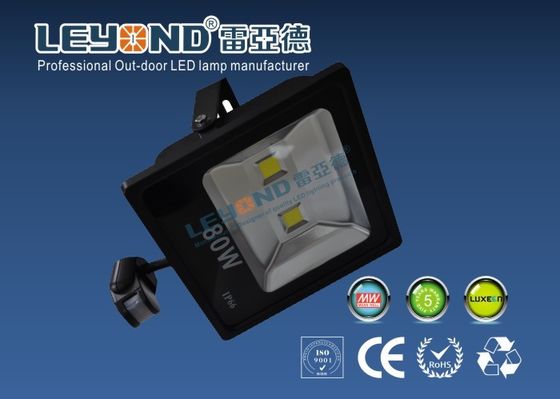

Aluminum Black High Power PIR Led Flood Light Outdoor With Sensor
Product description:
Model | Product Dimension(mm) | Power(W) | LED Luminous flux | Average Iilluminance | Facula Area | Net Weight |
LY-FL1010PW-P | L115xW85xH106 | 12 | 760-860lm | 1m=289lux 2M=72lux 3M=32lux |
1M=3.5x3.5M 2M=6.5x6.5M 3M=9.5x9.5M |
0.65KG |
LY-FL1020PW-P | L225xW230xH125 | 25 | 1700-1900lm | 2m=110lux 3M=50lux 4M=30lux |
2M=3.5x3.5M 3M=6.5x6.5M 4M=9.5x9.5M |
2.13KG |
LY-FL1030PW-P | L225xW230xH125 | 35 | 2550-2850lm | 2m=155lux 3M=75lux 4M=45lux |
2M=3.5x3.5M 3M=6.5x6.5M 4M=9.5x9.5M |
2.14KG |
LY-FL1050PW-P | L285xW270xH135 | 55 | 4250-4750lm | 4m=80lux 6M=35lux 8M=18lux |
4M=9x9M 6M=14x14M 8M=19x19M |
2.98KG |
Technical Datas:
Material | Die-cast Aluminum |
Input Voltage | AC100-240V 50/60Hz |
Power Efficiency | ≥85% |
Power factor | ≥0.95 |
Beam Angle | 100º 50º |
LED Luminous efficiency | ≥90lm/W |
Color Temperature | Warm white WW 2800-3500K Neutral white NW 4000-5000K Pure white PW 5500-7000K |
Detection range | 120º |
Detection distance | 12m |
Time-delay | Min:5sec Max:6min±2min |
Ambient-light | <3Lux-2000Lux |
Installation | height:2m-4.5m |
Features:
• Adopting high power integrated LED,which ensures light is more uniform,light efficiency is higher.
• Using high transmittance tempered glass,transimittance93%
• Complying with ROHS,absolutely notcontain mercury or other harmful substance
• Lifespan is over 50000hours
• LED lamp turn on automatically whenthe body through the sensor area.
• Can identify day and night automatically,the ambient-light can be selected to work at night automatically and stop inthe daytime.
• Time-delay can be adjusted vary to the place.
Pictures:
Application area:
- Replacing traditional High Pressure Sodium lamp or metal halide lamp.
- LED flood light is widely used in shopping center,exhibition hall,parking lot,stadium, gymnasia,billboard,park,statue,government lighting decoration project,landmark or building,public square and passage,building connecting passage,and other indoor or outdoor light applications.
Quality Warranty:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
