COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty

COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty
COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty

Large Image :  COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE RoHS
Model Number: LY - FL35010XX

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 3pcs/ctn
Delivery Time: 7-10 working days
Payment Terms: T/T, Paypal
Supply Ability: 3000pcs per month
Detailed Product Description
Item: Slim Line LED Flood Light Lamp Power: 10W / 30W / 50W / 80W / 100W
Input Voltage: 100~240V AC, 50/60Hz Power Factor: ≧0.9
LuminOUS Efficacy: ≧100LM / W IP Rating: IP66
Dimension: 120 X 220 X 45 Mm Heat Solution: Convection
High Light:

led outdoor flood lighting

,

outside led flood lights

3 years warranty COB LED Flood Lighting Outdoor IP66 10W 30W 50W 100W ultra slim led floodlight





1. Why choose Slim Line Flood Light ?



A. High brightness 110lm/w
B. A new competitive price with a cost save 20% than traditional flood light
C. Lighter body will save more space and shipping cost


Flipchip COB, much brightness and stable working, The flipchip LED advantage:


1) Electrodes on the flip chip directly contact the ceramic substrate, and omits the need for sapphire substrate used in heat dissipation.Therefore, the chip can be driven by high current.

2) Optical design is made easier, but flip chip sizes are smaller.

3) Improvements in heat dissipation, which in turn extends chip lifetime.

4) The wire-bonding free (without wire-bond) flip chip can reduce defect risks during packaging and operations.

5) Flip chip has laid the foundation for future packaging developments.

















Features:



1. Uniquely designed with plug & play PIR socket . The slim body with proffesional designed heat     sink make this products very porpular in the market



2. Multi-Chip on Lead Frame ,  Single Module LED Package Design



3. System Design Integrating Power Supply , LED Light Engine , and Heat Sink



4. Over Current , Over Voltage , Over Heat , Thunder Protection



5. Choice of Correlated Color Temperatures ( Specification Re-Defined Accordingly )



6. Long lifespan for LED 50 , 000 hrs



7. 100% Recycle , No Pollution , and UV , IR







10W Slim Line LED Flood Light Technical Data:





Optical





LED Luminance



>900lm



Light Fixture Luminance



>700lm



CCT



6500±500K



CRI



>70



LED Package



Multi-chip on Lead Frame,Single Module



Electrical





Input Voltage



100~240V AC, 50/60Hz
Power Consumption ≦10.5W (of Total System)
Power Factor ≧0.9



Power Efficiency



>89%



EMI Grade



EMI Class B



Protection



Over Current/Over Voltage/Thunder Protection



Luminance Efficacy



>70lm/W



Mechanical and System





IP Level



IP65



Dimension



120 X 220 X 45 mm



Net Weight



0.5 Kg



Heat Solution



Convection

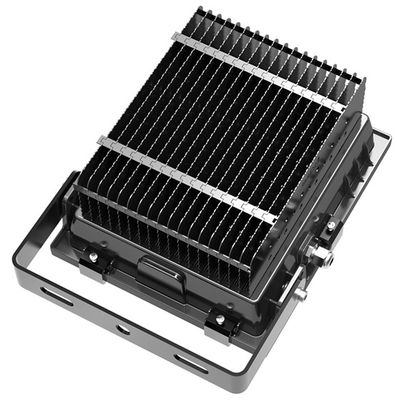

Outlook:



COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty 0







Photometry:





COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty 1





Application:



Projector / Floodlight



Tunnel Lighting / Pathway Lighting / Park Lighting



Signboard Lighting









Package:



1 Set = 250mm X 210mm X 155mm 0.6KG



1 Carton=6Set Size : 648mm X 325mm X 270mm









Installation:



The entire series of LED flood light are designed with wide range voltage , the voltage range is 85~264 volts , the frequency is 50 / 60Hz



Installation tool : A adjustable wrench group





Installation Steps:



1. Tighten Axle Screw, and Locate Screw



2 . Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure





The installation notices:



1. No necessary using other devices for LED Flood light installation such as stabilizer ,  regulator and so on



2. Opening the light and lifting the buckle is unallowable . Soaking in the water is unallowable







FAQ:



1. What is your price?
---Based on your quantity and specification requirement, reasonable and affordable price.


2. How many years warratny?
---5 years warranty, 50000 hours lifespan.


3. What is the payment term?
---For sample order, we can accept T/T, Paypal, West Union, 100% in advance.

For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.


4. What's your fast delivery time for sample 1-10pcs?
---Within 2 day once receive your payment.


5. Can I add my Logo on the product label?
---Yes.


6. I don’t know how many Led High Bay Light should I use, can you advise?
---Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.





Trade terms:



Payment : T / T , western Union or Paypal


Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea


Delivery time : 7 - 15 working days for normal orders


Port : Shenzhen , China





Our service:


1. Your inquiry for our products will be replied in 24 hours


2. Well-trained and experienced staffs to answer all your enquires in fluent English


3. OEM and ODM are welcomed


4. Make the products as your requirement.


5. Protection of your sales area , ideas of design and all your private information

COB OutdoorLED Flood Lighting IP66 10W 30W 50W 100W Ultra Slim 3 Years Warranty 2
