Product Details:
Payment & Shipping Terms:
|
| Item: | 150w Led Tunnel Light | Power: | 150w |
|---|---|---|---|
| LED Chip: | Bridgelux 5050 | Power Supply: | Meanwell |
| Voltage: | 100-240v AC | Beam Angle: | 25/60/90 Degree |
| Housing Color: | Black/White | Warranty: | 5 Years |
| Highlight: | led outdoor flood lights,led security flood light |
||

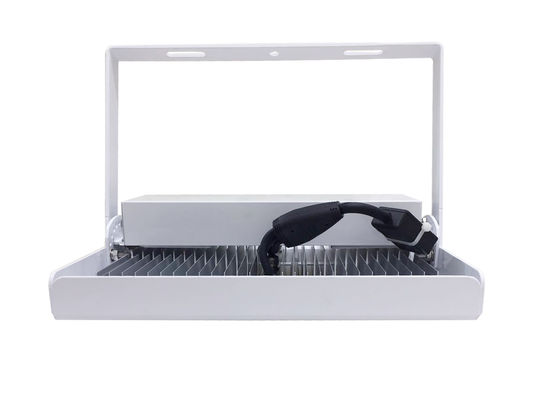

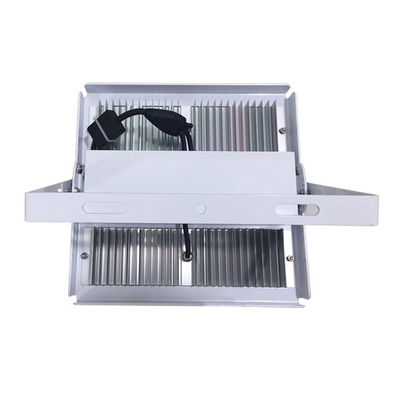

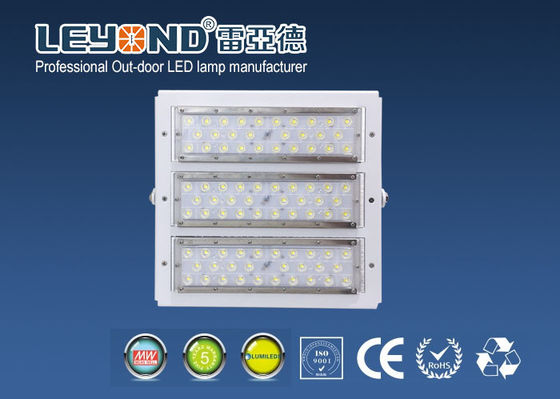

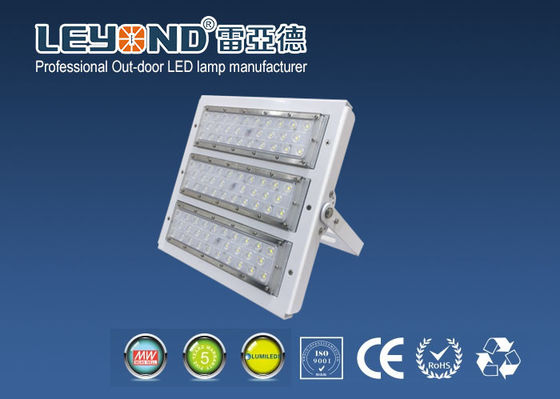

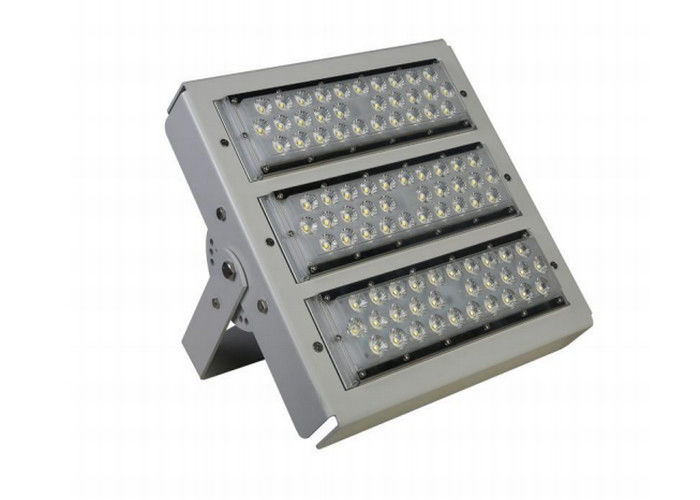

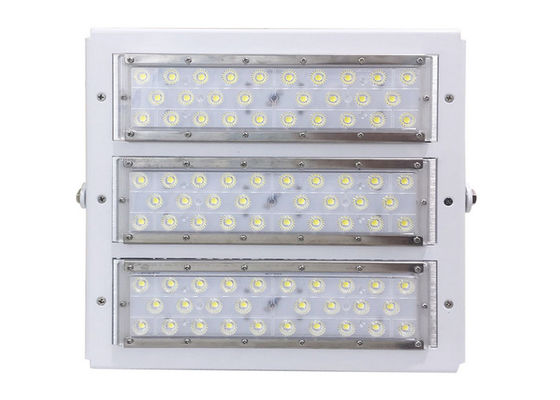

Railway 160lm / W 150w Led Tunnel Light / Outdoor Led Projection Lights
1. LED Light Source:Bridgelux 5050
2. Input Voltage(V):AC90-305V
3. CRI (Ra>):70
4. Beam Angle:25°/60°/90°
5. IP Rating:IP65
6. Certification:CE,RoHS
7. Warranty:5Years
8. LED Driver:MeanWell
9. Power Factor:0.98
10. Housing color:Black&White
Specifications:
|
Model
|
LY-ST23150XX
|
|
Product Name
|
150w led tunnel light
|
|
Modules number
|
3pcs
|
|
Power
|
150w
|
|
Input Voltage
|
AC90~305V 50/60Hz
|
|
Chip Brand
|
Bridgelux 5050
|
|
Led Qty
|
84pcs
|
|
Driver Brand
|
Meanwell HLG-150H/ ELG-150
|
|
Warranty
|
5 Years
|
|
Luminous flux
|
24000lm
|
|
Luminous efficiency
|
160lm/W
|
|
CRI
|
>70
|
|
CCT
|
WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
|
|
Beam Angle
|
24° 60° 90°
|
|
Carton Size
|
44×31x41cm
|
|
Gross weight
|
4.5KG
|
|
IP Rating
|
IP65
|
|
Meterial
|
Die-cast aluminum
|
|
Certification
|
CE&ROHS
|
Advantages:
1. Adoption LEYOND exclusive Lens with light transmittance up to 98%.
2. There are 25°,60°, 90° beam angle options for the Lens.
3. Adopt famous Bridgelux 5050 chip inside, Whole lamp output light effiency >160LM/W.
4. High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
5. Die-cast aluminum housing material, with good heat dissipation
6. Support Photocell sensor, Zigbee, solar systerm and 0-10V dimming, make the lamp smart and more energy saving.
Applications:
This series has wide application with optional installations for tunnel lighting, gas station lighting, parking lot lighting, flood lighting, etc.
