No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens
No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens

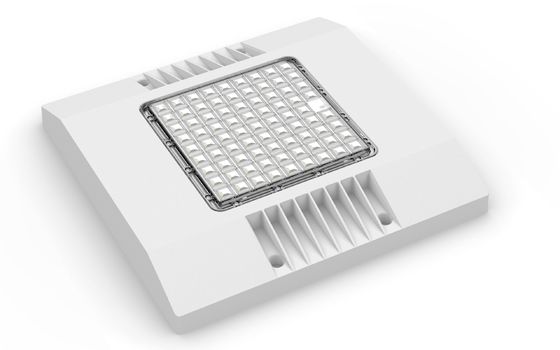

Large Image :  No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens

Product Details:

Place of Origin: Guangdong, China
Brand Name: LED Canopy Light
Certification: TUV,CE,RoHS CB, GS, SAA UL DLC SASO
Model Number: LY-YL20150XX

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: 105 us$/pc
Packaging Details: 43×43×35cm (2 PCS/CTN)
Delivery Time: sample: 3-5working days, Bulk order production:10-15working days
Payment Terms: Western Union, T/T,PayPal,
Supply Ability: 30000pcs/Month
Detailed Product Description
Power: 150W LED Chip: LUXEON 5050
LED Driver: Meanwell ELG-150 Warranty: 5 Years
Light Efficiency: 165lm/w Housing Material: Aluminium Alloy
Optical Lens: 85 Degree Certificate: Tuv CE Rohs CB GS SAA UL DLC SASO NOM
Lead Time: 10-15 Days Lamp Colour: White
CCT: Ww Nw Pw CRI: Ra>70
Input Voltage: 100-277vac
High Light:

canopy led lights

,

led canopy lighting

IP 66 outdoor Gas Station high bright LED canopy light

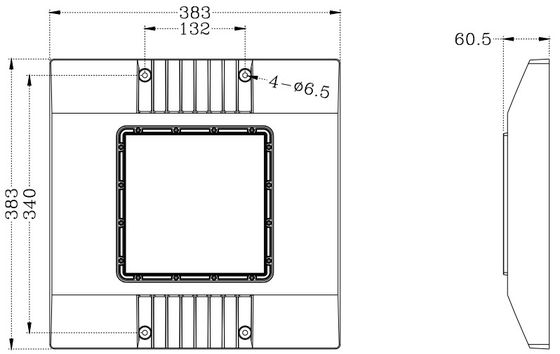

 Dimension:

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 0
 Speficication:

Par NO

Parameter

LY-ST201500PW LY- ST20150WW LY- ST20150NW
Inptut voltage AC100V~240V 50/60HZ
Sysem consumption(W) 150 150 150
Luminous flux(lm) 24000 21000 23200
Chip Brand LUXEON 5050/LEYOND 5050 LUXEON 5050/LEYOND 5050 LUXEON 5050/LEYOND 5050
Beam Angle 85 DEG 85 DEG 85 DEG
CRI >70
Color Temperature Warm white:5000-6500K / Neutral white:2700-3200K / Pure white:4000-4500K
LED Driver



MEAN WELL HLG-150H / HLG-150 / ELG-150

Luminous efficiency(lm/w) >155
Lifespan(hrs) >50000
IP Rating IP66
Dimmable YES&NO YES&NO YES&NO
Size(mm) 383x383x61 383x383x61 383x383x61
Net Weigh(kg) 5.8 5.8 5.8
Package Size(mm) 415*415*120 415*415*120



415*415*120

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 1

Distribution Curve:

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 2

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 3



Applications:

- Gas station

- Warehouse

- Cold storage

- Over pass

- Tunnel

- Natatorium

- Gymnasium



Features:

Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.

Adoption LEYOND exclusive Lens with light transmittance up to 98%.

Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor and outdoor needs .

Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

There are 95°beam angle for your optional, optimized light distribution design solution.

High luminous efficiency, High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

The whole lamp with the powder coating is brighter, without fading and corrosion.

Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable



Oprations:

• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 6~18m height

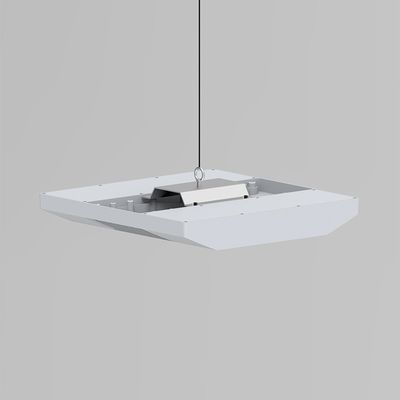

Installations:

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 4

Package info:

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 5

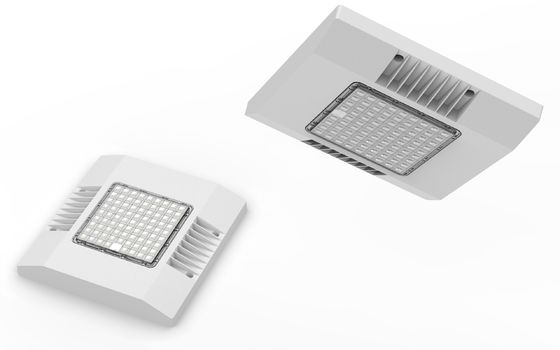

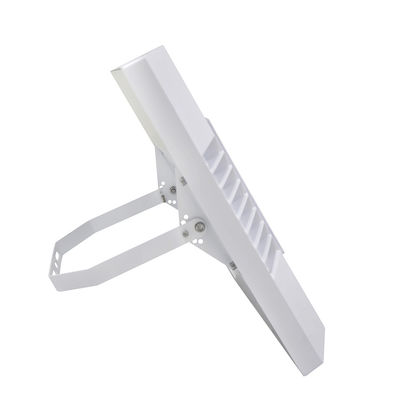

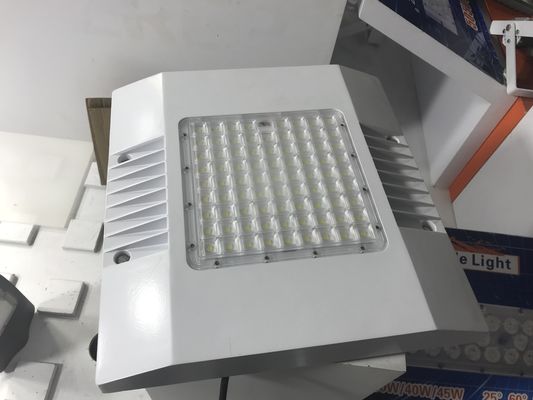

Actual pictures:

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 6



No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 7

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 8

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 9

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 10

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 11



Applications:

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 12

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 13

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 14

No Glare LED Canopy Lights 165lm/W 50w 100w 150w Filling Station Lamp 85 Degree Optical Lens 15
