Product Details:
Payment & Shipping Terms:
|
| Lamp Power: | 150W | Housing Color: | Black And Wite |
|---|---|---|---|
| LED Chip: | Bridgelux | LED Driver: | Meanwell HLG |
| Luminous Eff: | 160LM / W | CCT: | 2700K - 6500K |
| Warranty: | 5 Years Warranty | Item: | LED Module Flood Light |
| High Light: | led outdoor flood lights,commercial outdoor led flood light fixtures |
||

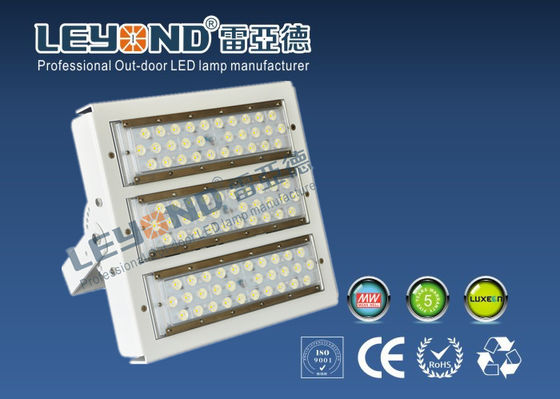

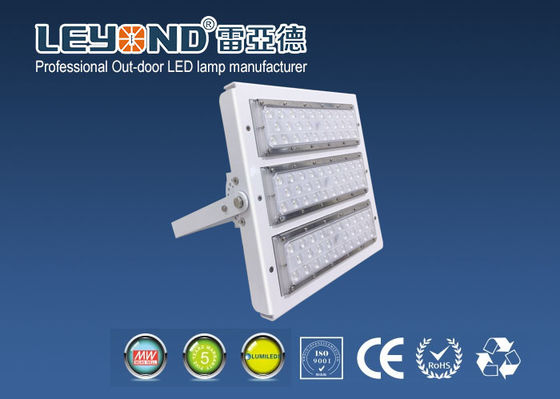

160lm/w outdoor led light 150W Meanwell High Power Module LED Flood Lamp For tennis court
Feature
1. Adoption LEYOND exclusive Lens with light transmittance up to 98%
2. Perfect Light Distribution Solution , Adoption of integrated shell optic lens , enhance the brightness and illumination uniformity
3. There are 24° , 36° ,60° , 90° beam angle options for the Lens
4. Scientifically-designed heat dissipater with much better cooling effect
5. High luminous efficiency , Whole lamp output light effiency >130LM/W
6. High quality power supply, input voltage 100-240V . The power efficiency is more than 90% , power factor
greater than 0.98 , UL compulsory certification .
7. For the traditional light source such as the High Pressure Sodium , if the voltage fluctuation ±7% , the
brightness and lifetime will be reduced very fast , but for LEYOND LED , even the voltage fluctuation is
±20%, the brightness and lifetime will not be influenced at all ; Over Current , Over Voltage , Over Heat ,
Thunder Protection
8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and
glass frames, avoid break of the traditional lamp,without harm to the human body
9. The CCT of Warm white , Neutral white , Pure white to meet the needs of different occasions , eliminated
the low color temperature of the sodium lamp which cause the depressed mood , observers will feel more
comfortable.
Electrical Specifications:
| Model | LY-ST24150PW |
| Modules Number | 3 |
| Power | 150W |
| Input Voltage | AC100~240V 50/60Hz |
| Input Current | 0.69A/220VAC |
| Power Factor | >0.99/115VAC >0.98/230VAC |
| Power Efficiency | >90% |
| Luminous Flux | >18000lm |
| Luminous Efficiency | 120lm/W |
| CCT | 2700K-6500K |
| Beam Angle |
24°36°60°90° |
| Carton Size | 385X376X155MM |
| IP Rating | IP65 |
| Gross Weight | 8.0kg |
| CRI | >50 |
| Meterial | Aluminum +PC |
Our Project:
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 5~12m height
Warning:
1) Please be careful when open the package handle
2) It is not good to open the Light Engine and use dimmer
3) If the new light is found damaged , please keep the originalpackage contact us
4) Lamps shall be installed and maintained by a qualified electrician
Trade terms:
Payment : T / T , western Union or Paypal
Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea
Delivery time : 7 - 15 working days for normal orders
Port : Shenzhen , China
Our service
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM and ODM are welcomed
4. Make the products as your requirement.
5. Protection of your sales area , ideas of design and all your private information
