High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing

High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing
High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing

Large Image :  High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEYOND
Certification: CE RoHS
Model Number: LY-ST10150-XX

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: negotiable
Packaging Details: Standard plain carton
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 pcs/month
Detailed Product Description
Item: LED Street Light 150w LED Source: Lumileds 5050
Watt: 150w Luminous: 24450lm
Driver: Meanwell Driver Beam Angle: 150*65 Degree
CCT: WW / NW / PW Lifetime: >50000 Hours
Control: Daylight Control, Motion Sensor IP Rated: IP66
High Light:

led roadway lighting

,

led street lamp

High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing

150w Led Street Light Product Description:



Par NO

Parameter

LY-ST10130XX LY-ST10150XX LY-ST10180XX
Input voltage AC100V~240V 50/60HZ
System consumption(W) 130 150 180
Luminous flux(lm) 21450 24450 28260
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Current 0.62A/220V 0.72A/220V 0.86A/220V
CRI >75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >190
Dimmable YES&NO YES&NO YES&NO
IP Rating IP66
Net Weigh(kg) 6.9 6.9 6.9
Size(mm) 642*290*120 642*290*120 642*290*120





Street Lighting Led Advantages:



• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%,power factor>0.98,UL certification.



• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.


• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.


• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning, high temperature,which fully ensure long life span and high stability of the products.


• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.


• Green environmental protection, no UV light and infrared radiation, no mercury pollution.


• Nice appearance and non-fouling properties, Protection class IP66.


• Work without strobe, fast transient response; A wide range of working voltage.


• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.

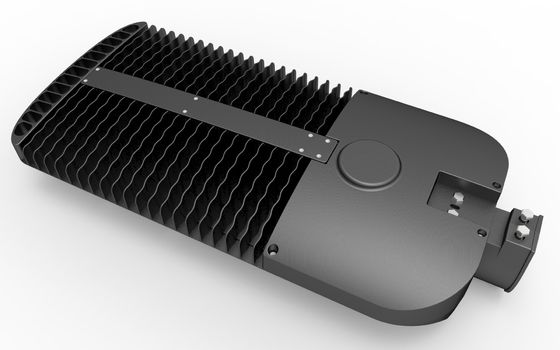

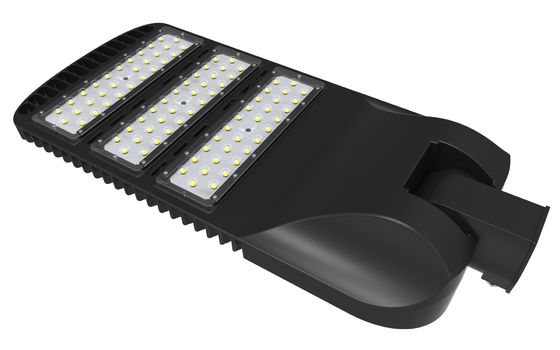

Led Street Lamp Product Picture

High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing 0

High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing 1

High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing 2

High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing 3

High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing 4

High Lumens Sword 150w Led Street Light Lumildes 5050 Chips White Shining Housing 5

Outdoor Led Street Lights Features As Below :



1) 160-170lm/w on the Luminaire,black polish shining housing,IP66 rated.


2) Independent model design, 30w/ 50w/ 100w/ 120w/ 150w available.


3) Lumileds 5050 LEDs inside,plus Meanwell HLG driver,5 years warranty.



4) Compatible with dimmable type, photocell sensor and connect solar power.

Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 7-8M height

Our Services:
1. Factory price, large monthly output
2. 5years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4. Timely delivery, let you win biggest markets advantage
5. Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcome OEM and ODM order

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
