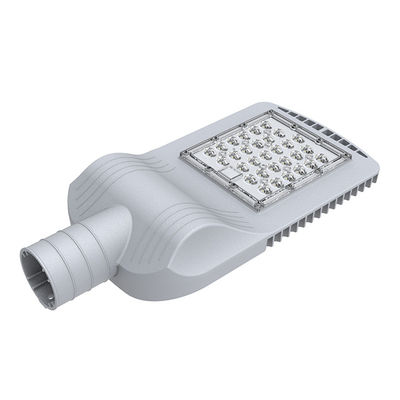

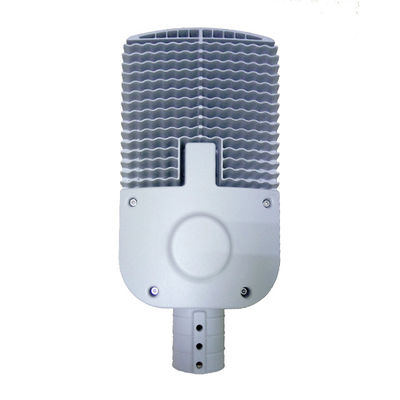

Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside

Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside
Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside

Large Image :  Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,RoHS
Model Number: LY-ST20050-XX

Payment & Shipping Terms:

Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: Standard Plain Carton
Delivery Time: 5-15 workdays
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 30,000 pcs/month
Detailed Product Description
Power: 50w LED Chip: Luxeon 5050
LED Driver: Meanwell/Sosen Power Factor: >0.95
CCT: 2700-6500K Material: Aluminum+PC Optical Lens
Beam Angle: 150X70d CRI: >80
Lumens: 8,000lm IP Rating: IP66
High Light:

outdoor led street light

,

led street lamp

Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside



Advantages:



Street light with 5050 chips 160-170lm/w, features as below:

1) 160-170lm/w on the Luminaire,black polish shining housing,IP66 rated.
2) Independent model design, 30w/ 50w/ 100w/ 120w/ 150w available.
3) Lumileds 5050 LEDs inside,plus Meanwell HLG driver,5 years warranty.

1. Lumileds 5050 LED,LED>180Lm/W,2pcs 1w chips are packaged in one led,which ensure high stability and also reduce the death rate of the leds
2.Wide Beam Angle:150°x70
3.Lamp Power 30W 40W 50W,60W Avaliable.
4.Modular design,Easy Replacement,good heat dissipation,Small size,light weight,competitive price.
5.Meanwell driver,with 5years warrant
6.Energy Saving,Economical and environmentally friendly
7.Grey & Black Housing,flexible chosen.
8.Fast delivery time.



Specification:

Product Model

Power

LED Quantity

Luminous Flux

Light Efficiency

CRI

CCT

Beam Angle

  LY-ST20050

  50W

    28 pcs

    8000 LM

   160 LM/W

   80

2700-6500K

150x70d



Product Model

Input Voltage

Product Size

IP Grade

Life Span

Material

Power Range

LY-ST20050

AC100-240V

410x200x90mm

IP66

50,000 hrs

Alumium+PC

30w-150w



Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside 0

Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside 1



1) Private Model, nice appearance and non-fouling properties, Protection Class IP66

Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside 2

2) Dute Type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay,and also extend life span of the leds, Adopting the popular CHEM modular design,effectively reduce the following maintenance cost.

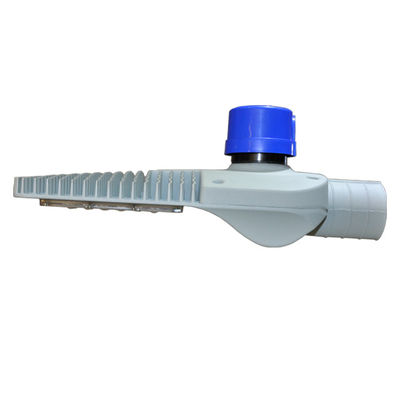

3) Optical daylight sensor 3 pin introduction

When the sunshine getting weak in dusk, when the ambient surround lux lower than 10 lux (or by customer special indirection), the
light turn on automatically;
After a night's light up work, then the dawn comes, when the surround lux higher than 30 lux (or by customer special indirection),
the light turn off automatically.

Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside 3



Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside 4



Super Bright Road Lamp 50w Ip66 Rated Led Street Lighting 160lm/w Lumileds Chips Inside 5



Application:

Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.





Quality Control:

Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.

It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.

Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.



Operating Guide:

1. Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2. Input Voltage 85~265V AC, 50/60Hz
3. Storage Ambient Temperature -20 to +65°C, Relative Humidity 10~90%
4. Mounting Height : Suitable for 5~10m height



FAQ:

1. May I have a sample for the light please?
---Sure,we welcome sample test.


2. How many watts does this type provide?

---30w, 40w,50w, 60w,100w,120w,150w



3. Which shipping way do you have?

---DHL, FEDEX, UPS and TNT are all support. By sea or by air can be available based on your request.


4. What is the delivery time?
---Normally, 5-7 days for sample, 15-20 days for bulk order. If on special condition, the delivery time can be discussed.
