Product Details:
Payment & Shipping Terms:
|
| Item: | Spiderman Modular Light 100W | LED Source: | 5050 |
|---|---|---|---|
| Watt: | 100w | Luminous: | 16,000lm |
| Driver: | Meanwell Driver | Beam Angle: | 25/60/90/150x65deg |
| CCT: | 2700-6500K | Lifetime: | >50000 Hours |
| Control: | Daylight Control, Motion Sensor | IP Rated: | IP66 |
| Housing Material: | Aluminum | ||
| High Light: | led lighting module,led modular |
||
High lumens output Spiderman Modular Light 80w Lumileds Chips,Robust housing
Led Modular Main Feature:
l Absolutely unique mold,make your lighting special and fantastic.
l Adoption LEYOND exclusive Lens with light transmittance up to 98%.
l Anti-glare and uniform light level to avoid any visual discomfort.
l There are 25°, 36°,60°, 90°, 160°, 145*90°,150*65° beam angle options for the Lens.
l High quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
l High luminous efficiency, Whole lamp output light efficiency >160LM/W.
l Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
l Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully
ensure long life span and high stability of the products.
l Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
l Green environmental protection, no UV light and infrared radiation, no mercury pollution.
l Nice appearance and non-fouling properties, Protection class IP66.
l Work without strobe, fast transient response；A wide range of working voltage.
Led Lighting Module Product Specification:
 |
Product Name | 100W Spiderman Led Stadium Light |
| POWER(W) | 100W | |
| Chip Brand | Lumileds Luxeon /Leyond 5050 Chips for optional | |
| Material | Aluminum Housing+PC Lens | |
| LED Driver | MEAN WELL / INVENTRONICS | |
| Luminous efficiency(lm/w) | ＞170 | |
| IP Rating / IK | IP66 / IK10 | |
| Installation height(m) | 4-15m |

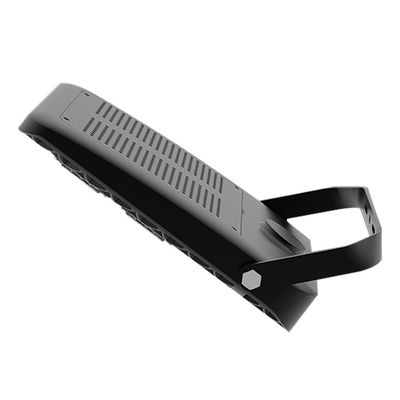

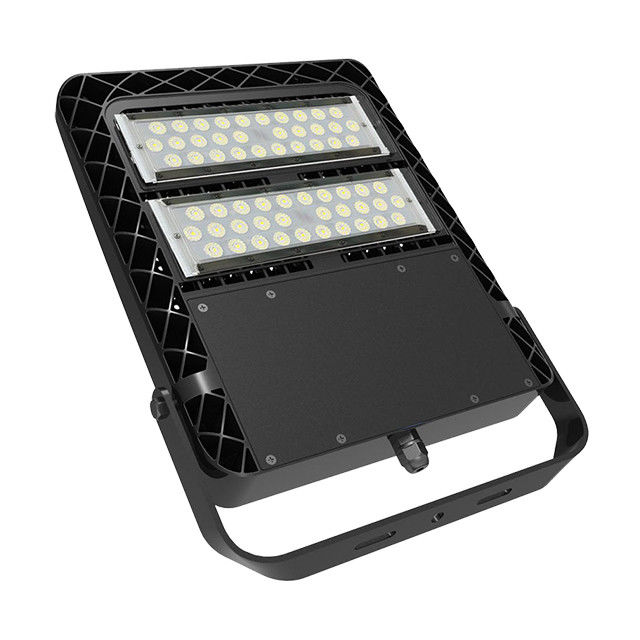

Stadium Light Product Pictures
Our Advantages:
1. Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality controll will be more stable.
2.Adopt famous Lumileds 5050 chip inside, high efficiency can up to 160 lm/w.
3. Die-casting housings, streamline heat sink with good heat dissipation
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 7-8M height
Our Services:
1. Factory price, large monthly output
2. 5years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4. Timely delivery, let you win biggest markets advantage
5. Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
