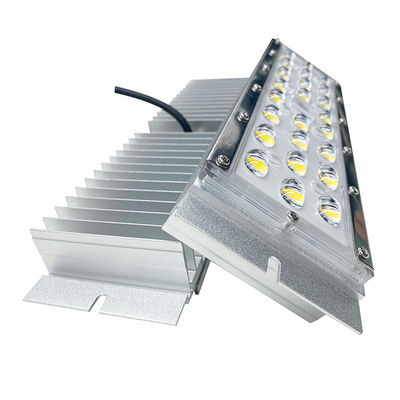

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting
190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting

Large Image :  190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: TUV, CE, RoHS, ENEC, CB, GS, SAA, UL, DLC
Model Number: LY-ST51050XX

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: 14$-18$/pc
Packaging Details: 25pcs/carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 300000pcs per month
Detailed Product Description
Lamp Body Material: Aluminum+PC Power: 50w
IP Rating: IP65 Warranty: 5 Years
LED Light Source: LUMILEDS 5050 Beam Angle: 25°60°/90°/ 150*65°
Lamp Luminous Flux(lm): 9500 CCT: 2700-3000K 4000-4500K 5000-6500K
Current: 1000mA Lead Time: 7-10 Working Days
Application: Sport Field / Square / Air Port / Bus Tation / High Pole Light Package: Inner & Outer
Working Temperature: -40-55 Degree Celsius
High Light:

led lighting module

,

led modular

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting

Features:



- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
- There are 25°,60°, 90°,150x65
° beam angle options for the Lens.
- Scientifically-designed heat dissipater with much better cooling effect.
- High luminous efficiency, Whole lamp output light efficiency >165LM/W.
- High quality power supply, input voltage 100-240V. The power efficiency is more than
90%, power factor greater than 0.98, UL compulsory certification.
- For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED Chip, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp.without harm to the human body.
- The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.





Product Description:

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 0

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 1

Dimension:



190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 2





Application Cases:



190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 3

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 4

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 5

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 6

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 7

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 8



Installation instructions:



1. Switch off the power supply

2. Make the stadium light on the Bracket

3. Electrical wiring connection

4. Tight the screws

5. Switch ON





Oprations:



• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 6~18m height



(Kindly reminder: All installation steps must handl by professional electrician)





Specification:



CCT(K) Wattage(W) CRI(Ra)

Voltage DC

(V)

Current DC

(mA)

LuminousEfficiency

(Lm/W)

Luminousflux

(lm)



2700-3200

(WW)

30 ≥70 44-52 670 160 4800
40 ≥70 44-52 900 155 6200
45 ≥70 44-52 1000 151 6800



4000-4500

(NW)

30 ≥70 44-52 670 167 5000
40 ≥70 44-52 900 163 6500
45 ≥70 44-52 1000 160 7200



5000-6000

(PW)

30 ≥70 44-52 670 170 5100
40 ≥70 44-52 900 166 6650
45 ≥70 44-52 1000 163 7350
IP Rating IP66
Product Dimension 300*78*32MM
Net weight 0.63KG
Light Body& Lampshade Aluminum Alloy and PC
Working Life 50000H
Working Temperature -30℃ ~ +50℃
Storage Temperature -20℃ ~ +75℃
Working Humidity 10%~90%
Beam Angle 150*65°





Package info:



Inner box Size: 648mm×325mm×270mm    25pcs   20KG





Actual pictures:

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 9

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 10

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 11

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 12

190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting 13
