Product Details:
Payment & Shipping Terms:
|
| Item: | Shoebox Led Street Light 100w | LED Source: | LUXEON 5050 / BRIDGELUX CHIP 5050 |
|---|---|---|---|
| Luminous Efficiency(lm/w): | ＞160 | Dimmable: | Yes |
| Housing Material: | Aluminum+PC Lens | CRI: | ＞70 |
| High Light: | outdoor led street light,led street lamp |
||
Spiderman Street Light 100w Lumileds 5050 Chips 160lm/w&Meanwell driver,5 years warranty
Product Description: 5050 Spiderman LED Street Light 80W 100W 120W
1. Use famous Lumileds chip inside, high efficiency.
2. Use integrated shell optic lens, high transmittance and perfect lighting distribution.
3. Easy to installation and maintance.
4. No UV or RF interference, No mercury or lead
5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>50000hrs
8. High brightness, low consumption, green for environment
9. Save 80% more energy compared with traditional lighting fixtures
10. Built-in LED driver with IC ensure stability of light, it can work efficiently under
11. AC85-265V in different countries and regions.AC12/24V led driver is also available
12. IP65 waterproof, outdoor lighting available.
Product Specification 100W Led Street Light
|
Par NO Parameter |
LY-ST40100PW | LY- ST40100WW | LY- ST40100NW |
| Inptut voltage | AC90V～305V 50/60HZ | ||
| Sysem consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 16500 | 15500 | 16100 |
|
Chip Brand |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
| Beam Angle | 150*65 DEG | 150*65 DEG | 150*65 DEG |
| CRI | ＞70 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| LED Driver | MEAN WELL HLG-100H / ELG-100 | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP65 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 640x340x69 | 640x340x69 | 640x340x69 |
| Net Weigh(kg) | 6.8 | 6.8 | 6.8 |
| Package Size(mm) | 670*370*100 | 670*370*100 | 670*370*100 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 8.0 | 8.0 | 8.0 |
Our Advantages Of Outdoor Led Street Light
1. Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality controll will be more stable.
2.Adopt famous Lumileds 5050 chip inside, high efficiency can up to 160 lm/w.
3. Die-casting housings, streamline heat sink with good heat dissipation
4.Short lead time, sample is 5-7 days; Bulk order is 15-20 days based on quantity. To be your firm supporter.

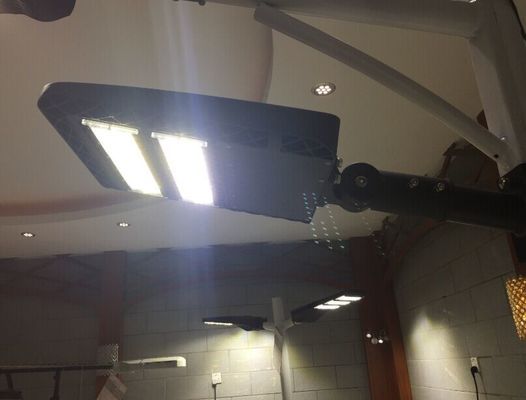

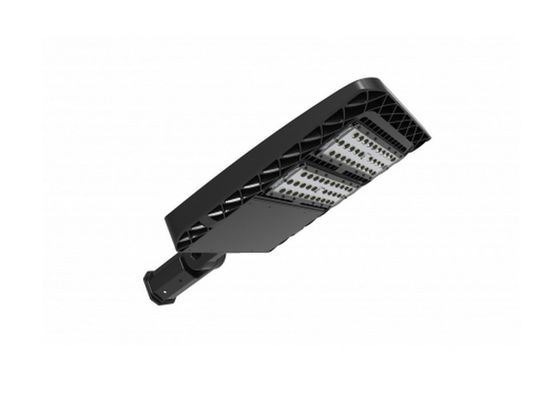

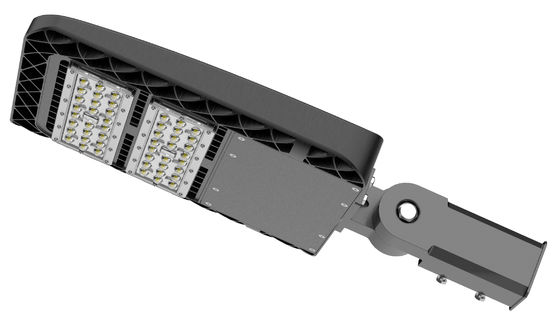

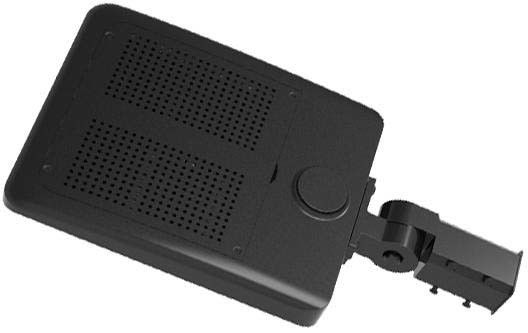

Product Picture Of High Power Led Street Light
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 7-8M height
Our Services:
1. Factory price, large monthly output
2. 5years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4. Timely delivery, let you win biggest markets advantage
5. Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 5 years warranty to our products.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
