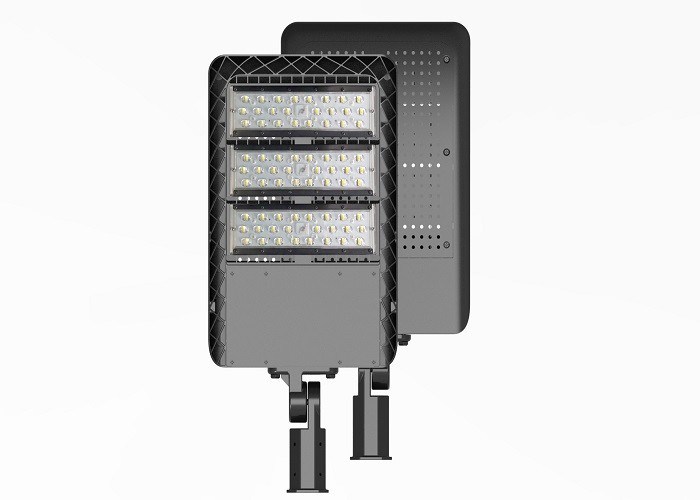

Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency.

Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency.
Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency.

Large Image :  Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency.

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: ENEC CB CE ROHS
Model Number: LY-ST40150-XX

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negociatable
Packaging Details: H*W*L
Delivery Time: 5-15day
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000-10000/month
Detailed Product Description
Product Nanme: LED Street Light Lamp Power: 150W,180W
LED Chips: Lumileds Luxeon 5050 LED Driver: Meanwell
Lamp Body Material: Die Custing Aluminum Waterproof Rating: IP66
Whole Lamp Efficiency: 160 Warranty: 5 Years
High Light:

outdoor led street light

,

led roadway lighting

Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency.



01. Outlook



Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. 0



02. Features

  • Absolutely unique mold,make your lighting special and fantastic.
  • Anti-glare and uniform light level to avoid any visual discomfort.
  • high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98.
  • Adopting Lumileds Luxeon 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, higher light transmittance up to 98%.
  • Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
  • Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
  • Nice appearance and non-fouling properties, Protection class IP66.



03. Specification



Par NO

Parameter

LY-ST40150PW LY-ST40150WW LY-ST40150NW
Input voltage AC90V~305V 50/60HZ
System consumption(W) 150 150 150
Luminous flux(lm) 28800 22500 23250
Chip Brand Luxeon3030/Leyond 3030 Luxeon3030/Leyond 3030 Luxeon3030/Leyond 3030
Beam Angle 150*65 DEG 150*65 DEG 150*65 DEG
CRI >70
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
LED Driver MEAN WELL ELG-150H / XLG-150
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP66
Dimmable YES&NO YES&NO YES&NO
Size(mm) 720x340x69 720x340x69 720x340x69
Net Weigh(kg) 7.3 7.3 7.3
Package Size(mm) 740*368*110 740*368*110 740*368*110
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 8.4 8.4 8.4





Detailed Product Pictures

Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. 1

Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. 2'

Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. 3



04. Package



Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. 4

05. Production



Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. 5



06. Testing Machine



Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. 6



07. Exhibition



Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. 7



08. Installation Type



Aluminum LED Street Lighting 150W with 160Lm/W high light efficiency. 8
