Aluminum Pathway RGB LED Flood Lights Street Park Lamp 120w DMX

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Aluminum Pathway RGB LED Flood Lights Street Park Lamp 120w DMX

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS
Model Number: LY-ST23150-RGB

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: Contact me
Packaging Details: 1pcs/carton,normal packing
Delivery Time: 5-7 working days for sample order,7-15 working days for normal order
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 Piece/Pieces per Month OEM is avialable
Detailed Product Description
Product Name: RGB LED Flood Lights Control Type:: DMX
Material: Aluminum Led: 5050
Color Temperature:: Red+Green+Blue IP Rating: IP65
High Light:

led outdoor flood lights

,

led security flood light

Aluminum Pathway RGB LED Flood Lights Street Park Lamp 120w DMX



Features:



• Control mode:RF/IR/DMX512. Standard DMX512 input interface and a built-mode controller , can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.

• Adoption LEYOND exclusive Lens with light transmittance up to 98%.

• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

• There are 25°,,60°, 90° beam angle options for the Lens.

• Master or Slave function, if set master, it can stead of the external controller.

Reliable constant current driver designed to ensure high-power LED lights for a stable job.

• Superior ability to adapt to the environment, protection grade IP65, can adapt to a variety of indoor and outdoor temperature and humidity environment. The lamp base is aluminum alloy, solid ,anti-aging, anti-variant, long service life.

• More than 16777 thousand kinds of colors can be realized output, with good light efficiency, beautiful color and so on.

• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass

frames, avoid break of the traditional lamp,without harm to the human body.


Electrical Specifications



Model modules number Power Input Voltage Input Current Power factor Power efficiency
LY-ST24120RGB 3 120W

AC111~240V

50/60Hz

0.57A/220VAC

>0.99/115VAC

>0.95/230VAC

>90%

Photometric Specifications

Emitting Color λd / CCT Typical Lumens Forward Voltage Forward Current
RED 620-630 nm 5400 lm 13-17V 3900mA(MAX)
GREEN 520-530 nm 6600 lm 21-25V 3900mA(MAX)
BLUE 460-465 nm 1530 lm 21-25V 3900mA(MAX)
WHITE R+G+B 6000lm 13-25V 3900mA(MAX)



Mechanical Specifications

Model Power Carton Size gross weight Net Weight IP Rating Meterial
LY-ST24120RGB 120W 320X316X76MM 5.2kg 4.5kg IP66

Aluminum +PC

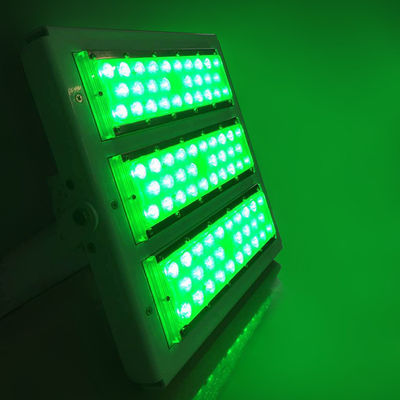

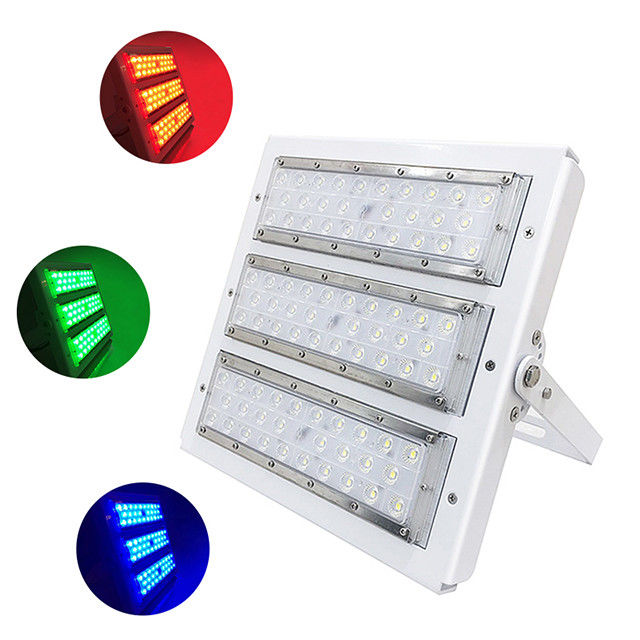

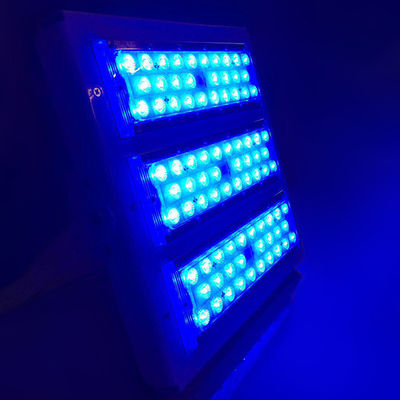

Product picture:



Aluminum Pathway RGB LED Flood Lights Street Park Lamp 120w DMX 0

Aluminum Pathway RGB LED Flood Lights Street Park Lamp 120w DMX 1Aluminum Pathway RGB LED Flood Lights Street Park Lamp 120w DMX 2Aluminum Pathway RGB LED Flood Lights Street Park Lamp 120w DMX 3


FAQ:

1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.

2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.

3. What can Leyond offer?
A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED Canopy Light, LED module, LED Street Light, ect.

4. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

5. How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.

6. Can you accept OEM or ODM design?
A: Yes,OEM or ODM design is available
