Product Details:
Payment & Shipping Terms:
|
| Lamp Body Material: | Aluminum+PC | Power: | 800w |
|---|---|---|---|
| IP Rating: | IP65 | Warranty: | 5 Years |
| LED Light Source: | RGB 5050 | Beam Angle: | 25°60°/90°/ 150*65° |
| Lamp Luminous Flux(lm): | 128000 | Color: | DMX 512 Color Changing Controller |
| Current: | 1000mA Maximium | Lead Time: | 7-10 Working Days |
| Application: | Sport Field / Square / Air Port / Bus Tation / High Pole Light | Package: | Inner & Outer |
| Working Temperature: | -40-55 Degree Celsius | ||
| High Light: | 800w RGB LED Flood Light,IP65 RGB LED Flood Light,IP65 LED Flood Light |
||

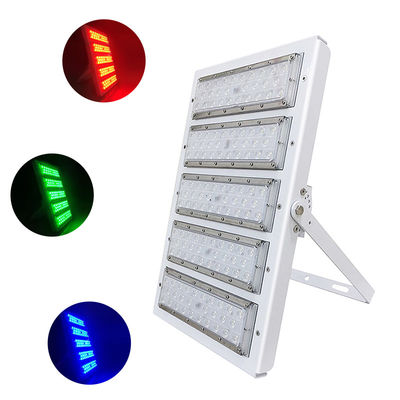

Colorful IP65 800w RGB LED Flood Light Marquees DMX512 For Christmas
800w Colorful LED RGB Light Marquees DMX512 For Christmas
Features:
- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
- There are 25°,60°, 90°,150x65° beam angle options for the Lens.

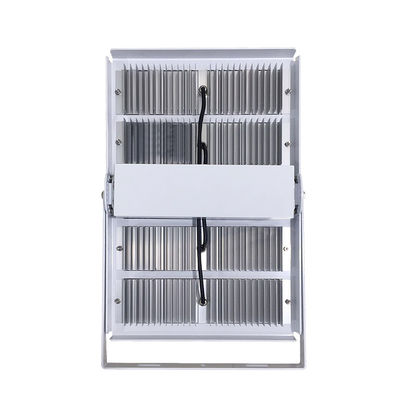

- Scientifically-designed heat dissipater with much better cooling effect.
- High luminous efficiency, Whole lamp output light efficiency >165LM/W.
- High quality power supply, input voltage 100-240V. The power efficiency is more than
90%, power factor greater than 0.98, UL compulsory certification.
- For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED Chip, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp.without harm to the human body.
- The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
Product Description:
Dimension:
Application Cases:
Installation instructions:
1. Switch off the power supply
2. Make the stadium light on the Bracket
3. Electrical wiring connection
4. Tight the screws
5. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional electrician)
Specification:
|
Emitting Color |
λd / CCT |
Typical Lumens |
Forward Voltage |
Forward Current |
|
RED |
620-630 nm |
1800 lm |
13-17V |
680mA(MAX) |
|
GREEN |
520-530 nm |
2200 lm |
21-25V |
680mA(MAX) |
|
BLUE |
460-465 nm |
560 lm |
21-25V |
680mA(MAX) |
|
WHITE |
R+G+B |
2000lm |
13-25V |
1500mA(MAX) |
Package info:
Inner box size: 26x15x39 CM
outer box size: 55x31x43 CM
4 inner cartons load into 1 outer carton

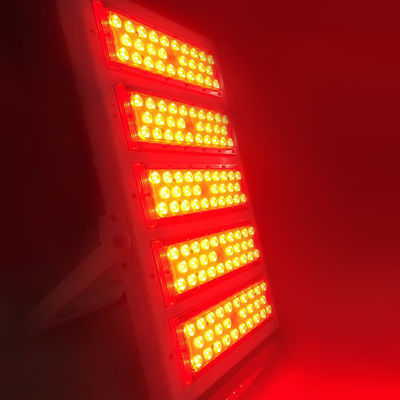

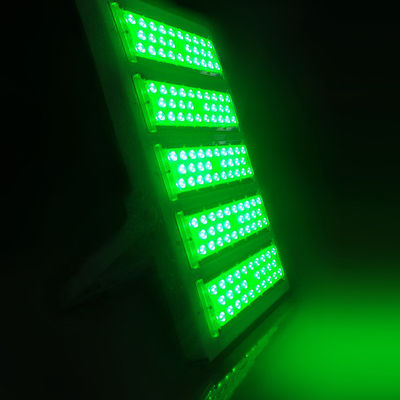

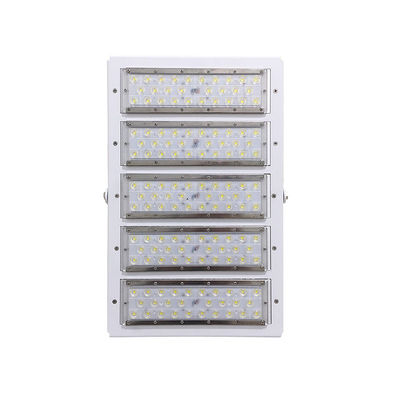

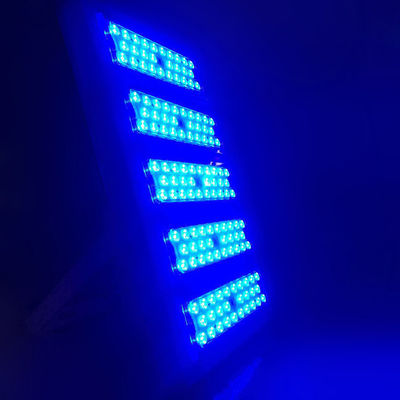

Actual pictures:
