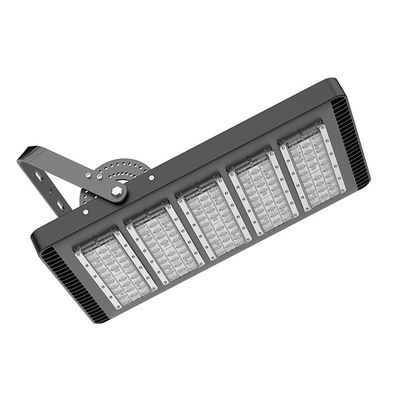

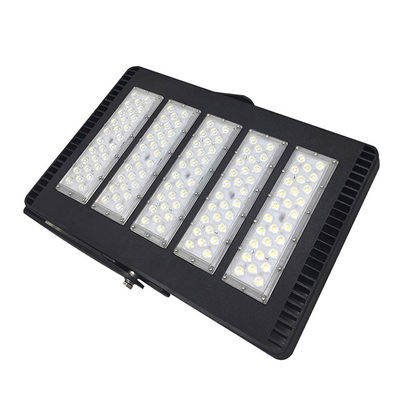

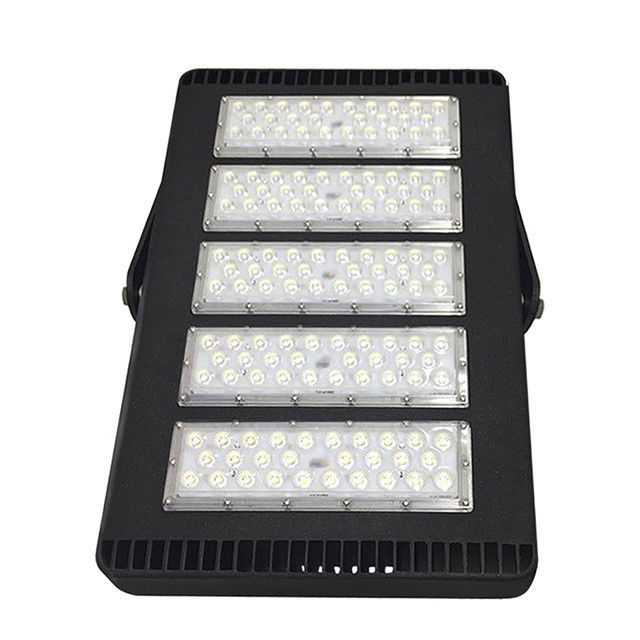

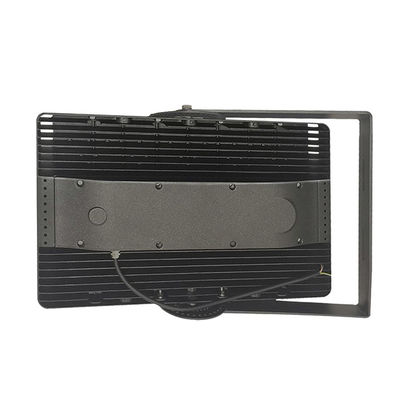

IP66 200 Watt AC240V Outdoor LED Flood Lights Commercial Fixtures

IP66 200 Watt AC240V Outdoor LED Flood Lights Commercial Fixtures

AC100Volt ～ 240V Commercial Outdoor Led Flood Lights Fixtures IP66 200 Watt

Features

• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Anti-glare and uniform light level to avoid any visual discomfort.
• There are 25°,60°, 90° beam angle options for the Lens.
• High quality power supply, input voltage 9 0 -305V. The power efficiency is more than 90%,power factor greater than 0.98.
• High luminous efficiency, Whole lamp output light efficiency >160LM/W.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lowerluminous decay, and also extend life span of the leds.
• Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response；A wide range of working voltage.

Specification

Photometry

Operation and Storage Condition
Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
Mounting Height : Suitable for 8~10m height
Certificate
LED Lighting Certificated with CE
Power System Certificated with UL
The Whole Floodlight Certificated with CE

Package

Assembly and Installation
Assembly-Electricity
Blue : Line
Brown : Neutral
Yellow-Green : Ground
Installation
The entire series of LED flood light are designed with wide range voltage, the voltage range is 90~295 volts, the frequency is 50/60Hz.
Installation tool: A adjustable wrench group.
Installation Steps :
1.Tighten Axle Screw, and Locate Screw
2.Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure.
The installation notices
1.No necessary using other devices for LED Flood light installation such as stabilizer, regulator and so on.
2.Opening the light and lifting the buckle is unallowable.
Soaking in the water is unallowable.
