Warehouse 240w 75Ra LED Lowbay Light Dimmable Luxeon 3030

Warehouse 240w 75Ra LED Lowbay Light Dimmable Luxeon 3030
Warehouse 240w 75Ra LED Lowbay Light Dimmable Luxeon 3030 Warehouse 240w 75Ra LED Lowbay Light Dimmable Luxeon 3030 Warehouse 240w 75Ra LED Lowbay Light Dimmable Luxeon 3030

Large Image :  Warehouse 240w 75Ra LED Lowbay Light Dimmable Luxeon 3030

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE RoHS
Model Number: LY-HB56240PW

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: 330X328X100mm
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/month
Detailed Product Description
Power: 240W Input Voltage: 100-305V AC
Material: Aluminum + Pc LED Chip: Luxeon 3030 Led
Light Efficiency: 120-130lm/w PF: >0.95
CRI: >75Ra UGR: <19
High Light:

75Ra LED Low Bay Light

,

240w LED Low Bay Light

,

75Ra LED Warehouse Light

Warehouse 240w 75Ra LED Lowbay Light Dimmable Luxeon 3030



5 years warranty 240w led low bay light dali dimmable warehouse lighting



240W LED Low Bay Light Features
>> High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
>> For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all; Over Current, Over Voltage, Over Heat, Thunder Protection.
>> Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
>> The CCT of Warm white,Natural white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.



200W LED Low Bay Light Installation Instruction



Carefully read the installation instructions and ensure the mains supply is isolated before installation. Please follow the safety information overleaf before carrying out any installation. Please retain this lealet for future reference.

Step 1:
Carefully remove the Low Bay and chain from the packaging. Install the chain onto the eye bolts on the back of the Low Bay light.

Step 2:
Mount the Low Bay light to the ceiling using a mounting hook and suitable suspension kit.

Step 3:
Secure the supply cable using suitable clips. Ensure that the cable is not touching the body of the Low Bay light .

Step 4:
Connect the cable to the mains as per the illustration below



240W LED Low Bay Light Specification

Model No.

LY-HB56240PW

LY-HB56240NW

LY-HB56240WW

Inptut Voltage

AC100-305V 50/60HZ

Power

240W

240W

240W

Luminous Flux

28800lm

27600lm

26400lm

Chip Brand

LUXEON 3030

LUXEON 3030

LUXEON 3030

Color Temperature

5500-6000K

4000-4500K

2700-3200K

Luminous Efficiency

>120lm/w

>115lm/w

>110lm/w

Power Factor

>0.98

Beam Angle

120 DEG

LED Driver

MEAN WELL ELG-240

Surge Protection

6KV

CRI

>70

Lifespan

>50000hrs

IP Rating

IP54

Dimmable

YES&NO

Size(mm)

330*328*100

Net Weight

6.4KG



 Assembly-Electricity

5-years warranty 240w led low bay light dimming warehouse lighting



Detail Pictures:

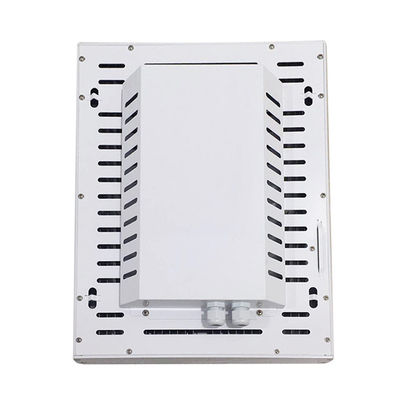

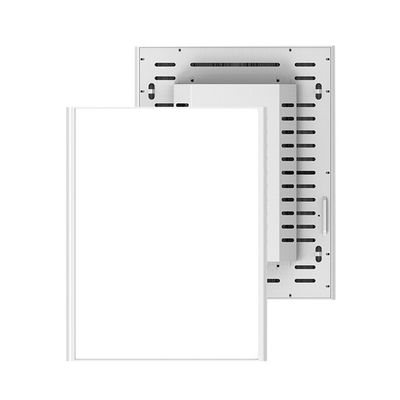

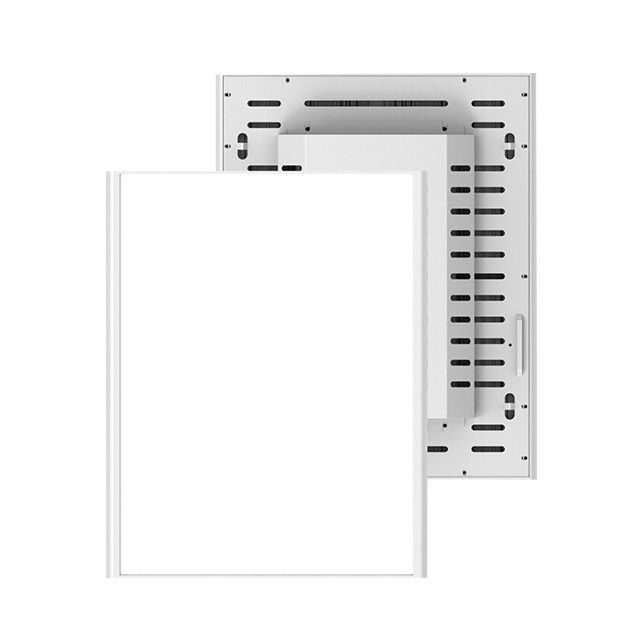

Warehouse 240w 75Ra LED Lowbay Light Dimmable Luxeon 3030 1

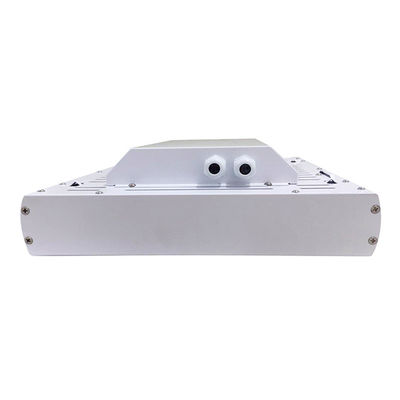

Warehouse 240w 75Ra LED Lowbay Light Dimmable Luxeon 3030 2
