Product Details:
Payment & Shipping Terms:
|
| Product Name: | Off Grid Solar LED Street Light | Power: | 60W |
|---|---|---|---|
| Luminous Flux: | 9600 | Beam Angle: | 150x70° |
| Solar Panel: | 80W /18V Monocrystalline Silicon | Battery: | 18650 Lithium Battery 12V 60Ah |
| Material: | DC12 Die Casting Aluminum | Installation Height: | 4-6M |
| Certificate: | CE ROHS LVD | Warranty: | 3 Years |
| High Light: | IP66 60W Solar LED Street Light,12V 60Ah Solar LED Street Light,IP66 60W Solar Street Lights |
||

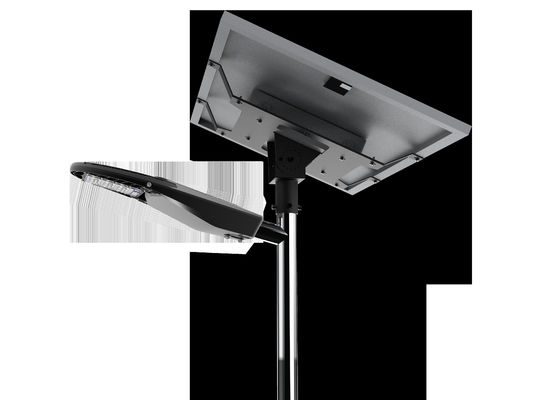

Die Casting Aluminum IP66 60W Solar LED Street Light Time Control
Off grid Die Casting Aluminum IP66 high brightness Solar Street Lights 60W Time control
1. Outlook
2. Specifications
|
Par NO. arameter |
LY-ST70060PW | LY- ST70060NW | LY- ST70060WW |
| Battery | 18650 lithium battery 12V 60 Ah | ||
| Beam angle | 150x70° | ||
| Pole diameter | 60MM | ||
| Light output | 60W | ||
| Luminous flux(lm) | 9600 | ||
| LED Quantity(pcs) | 48 | ||
| Color Temperature | Pure white:5000-6500K | Warm white:4000-4500K | Neutral white:2700-3200K |
| Solar panel | 100W /18V monocrystalline silicon | ||
| CRI | ＞70 | ||
| Chip Brand | LUXEON 5050 | ||
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days | ||
| Control Mode | Light Control +Time Control | ||
| Material | Die Casting Aluminum | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(h) | ＞50000 | ||
| IP Rating | IP66 | ||
| Installation height | 6~8M | ||
3. Pictures
4. Applications
Mainly suitable for
1. City roads, highways, schools, industrial areas, parks and other public areas
2. Regions with relatively poor power and energy
3. Remote areas such as rural areas
5. Features
1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;
2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 160lm/W;
3. The solar panel is made of monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;
4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;
5. It has functions of light control, time control, dimming, intelligent power saving + morning light;
6. Solar controller built-in lightning protection module;
7. Using ternary lithium battery technology, the battery capacity is high;
8. 365 days uninterrupted power.
6. Production pictures
7. Distribution Curve
8. Operation and Storage Condition
1. Working environment temperature: -10 to +45°, ambient humidity: 20-95%;
2. Storage ambient temperature: -10 to +35°, ambient humidity: 20-95%;
3. When not in use, charge and discharge every 3 months;
4. Recommended suitable installation height is 4-6m
9. Package
10. Wiring diagram
11. Warning
1. Do not install in high temperature, closed and non-ventilated areas;
2. The installation location should not be installed under the tree or the place where there
are obstructions. The solar panel must be exposed to sunlight in all directions;
3. When the product is stored in the warehouse, it needs to be charged and discharged
every 3 months;
4. When the product is faulty, you need to find a professional to deal with it;
5. Eliminate scrapped products, must be handed over to the relevant departments for
centralized processing.
