High Brightness Outdoor Modular RGB LED Flood Light CE ROHS Certification

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Brightness Outdoor Modular RGB LED Flood Light CE ROHS Certification

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS and ISO9001:2015
Model Number: LY-ST24200RGB

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US$50.0/pcs-US$350.0/pcs
Packaging Details: Color box + carton box package
Delivery Time: 7-12 working days
Payment Terms: T/T, Western Union or Paypal, L/C, D/A, D/P, MoneyGram
Supply Ability: 5000pcs/month
Detailed Product Description
LED Flood Light: 200W Input Voltage: 100-240V AC 50/60HZ
Lifespan: 50000hrs CRI: >80
Luminous Flux: 9000lm/w Beam Angle: 25/60/90°
Luminous Efficiency: >=100lm/w Application: Garden, Building, Square, Outdoor, Park
High Light:

DMX512 Led Rgb Flood Light

,

240VAC Outdoor Led Flood Lights

High Brightness Outdoor Modular RGB LED Flood Light CE ROHS Certification

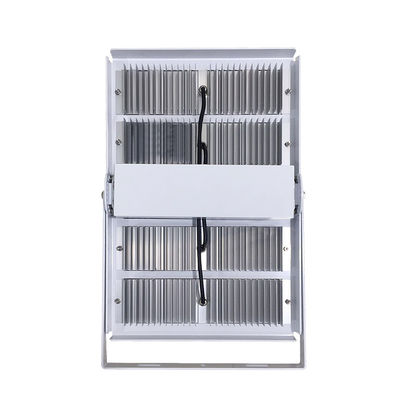

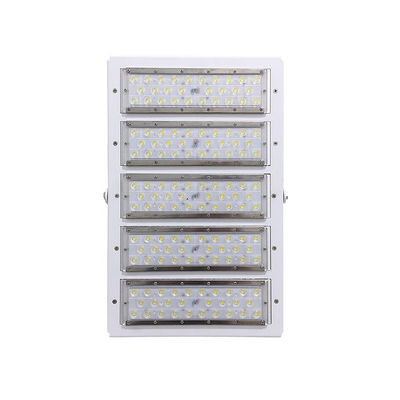

1. Outlook

High Brightness Outdoor Modular RGB LED Flood Light CE ROHS Certification 0

High Brightness Outdoor Modular RGB LED Flood Light CE ROHS Certification 1



2. Technical Parameter

Electrical Specifications

Model modules number Power Input Voltage Input Current Power factor Power efficiency
LY-ST24200RGB 5 200W

AC90~305V

50/60Hz

0.95A/220VAC

>0.99/115VAC

>0.95/230VAC

>90%

Photometric Specifications

Emitting Color λd / CCT Typical Lumens Forward Voltage Forward Current
RED 620-630 nm 9000 lm 13-17V 6500mA(MAX)
GREEN 520-530 nm 11000 lm 21-25V 6500mA(MAX)
BLUE 460-465 nm 2800 lm 21-25V 6500mA(MAX)
WHITE R+G+B 10000lm 13-25V 6500mA(MAX)

Mechanical Specifications

Model Power Carton Size gross weight Net Weight IP Rating Meterial
LY-ST24200RGB 200W 320X504X76MM 7.4kg 6.4kg IP66

Aluminum +PC



3. Features

  • Control mode:RF/IR/DMX512. Standard DMX512 input interface and a built-mode controller , can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.
  • Adoption LEYOND exclusive Lens with light transmittance up to 98%.
  • Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
  • There are 25°,,60°, 90° beam angle options for the Lens.
  • Master or Slave function, if set master, it can stead of the external controller.
  • Reliable constant current driver designed to ensure high-power LED lights for a stable job.
  • Superior ability to adapt to the environment, protection grade IP65, can adapt to a variety of indoor and outdoor temperature and humidity environment. The lamp base is aluminum alloy, solid ,anti-aging, anti-variant, long service life.
  • More than 16777 thousand kinds of colors can be realized output, with good light efficiency, beautiful color and so on.
  • Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

4. Applications

LED is cold light sources, a wide range of output color, RGB modular flood light use LED as a light source ,can be widely used in various building walls of light color decoration, and the stage, meeting rooms, display lights, ancient buildings, the Cultural Plaza and other places.

5. Control mode

High Brightness Outdoor Modular RGB LED Flood Light CE ROHS Certification 2

High Brightness Outdoor Modular RGB LED Flood Light CE ROHS Certification 3



6. Assembly and Installation

High Brightness Outdoor Modular RGB LED Flood Light CE ROHS Certification 4

7. Packing

Inner box Size: 608mm×390mm×135mm
Outer box Size: 623mm×405mm×305mm (2 PCS LED Flood Light)

High Brightness Outdoor Modular RGB LED Flood Light CE ROHS Certification 5
