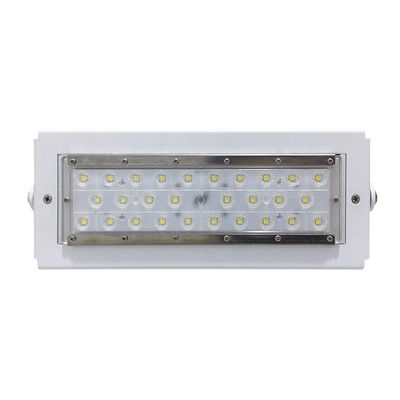

Super bright led flood light 50W with 160lm/w high efficiency for area lighting.

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

Super bright led flood light 50W with 160lm/w high efficiency for area lighting.

Super bright led flood light 50W with 160lm/w high efficiency for area lighting.
Super bright led flood light 50W with 160lm/w high efficiency for area lighting. Super bright led flood light 50W with 160lm/w high efficiency for area lighting. Super bright led flood light 50W with 160lm/w high efficiency for area lighting. Super bright led flood light 50W with 160lm/w high efficiency for area lighting.

Large Image :  Super bright led flood light 50W with 160lm/w high efficiency for area lighting.

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE, ROHS and ISO9001:2008
Model Number: LY-ST23050XX

Payment & Shipping Terms:

Minimum Order Quantity: 4pcs
Price: Contact us for details
Packaging Details: inner box+outer box
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: LED Flood Light 50W LED Chips: Lumileds Luxeon 5050
LED Driver: Meanwell Driver Voltage: 100-240V
CRI: >80 Beam Angle: 25/60/90/150*65deg
Waterproof Rating: IP66 Warranty: 5 Years
High Light:

160lm/W Aluminium Modular LED Flood Light

,

200W Waterproof LED Flood Light

,

IP66 Outdoor Led Flood Lights

Super bright led flood light 50W with 160lm/w high efficiency for area lighting.



Outlook:

Super bright led flood light 50W with 160lm/w high efficiency for area lighting. 0



Application:

1. It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.

2. New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.



Features:

1. Adoption LEYOND exclusive Lens with light transmittance up to 98%.

2. Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

3. There are 25°,60°, 90° ,150*65 deg beam angle options for the Lens.

4. Scientifically-designed heat dissipater with much better cooling effect.

5. High luminous efficiency, Whole lamp output light effiency >160LM/W.

6. High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98,

    UL compulsory certification.

7. For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime

   will be reduced  very fast, but for LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over         Current, Over Voltage, Over Heat, Thunder Protection.

8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the         traditional lamp,without harm to the human body.

9. The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the    sodium lamp which cause the depressed mood, observers will feel more comfortable.



Performance Parameters:



Par NO

Parameter

LY-ST23050PW LY-ST23050NW LY-ST23050WW
Input voltage AC100V~240V 50/60HZ
System consumption(W) 50 50 50
Luminous flux(lm) 8000 76500 7500
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Beam Angle 25°,60°, 90°,150*65 25°,60°, 90°,150*65 25°,60°, 90°,150*65
CRI >75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
LED Driver MEAN WELL ELG-75 / HLG-60H
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP66
Dimmable YES&NO YES&NO YES&NO
Size(mm) 320*128*76 320*128*76 320*128*76
Net Weigh(kg) 2.6 2.6 2.6
Package Size(mm) 246*390*135 246*390*135 246*390*135
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 3.2 3.2 3.2





Distribution Curve:

Super bright led flood light 50W with 160lm/w high efficiency for area lighting. 1



WHO WE ARE

Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005. who is a leading provider of outdoor lighting fixtures with high technology and quality. We are carry out enterprise culture of the “To customer demand as the guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline, perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting supplier” and to“ build Leyond brand”.



WHAT WE DO

Leyond is the Top 3 LED street light exporter from China,Our major products include Led Street Lights, Led Flood Light,LED Stadium Light,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.





THE ADVANTAGES OF LEYOND

More than 10 years experience in outdoor lighting fixtures production

Outstanding quality

Professional techniques and service

Super bright led flood light 50W with 160lm/w high efficiency for area lighting. 2
