160lm/w IP66 waterproof Die-casting aluminium Modular LED Flood Light 200w 5050 chips

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

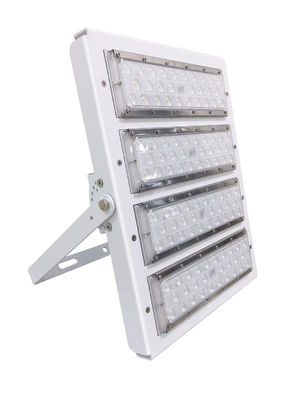

160lm/w IP66 waterproof Die-casting aluminium Modular LED Flood Light 200w 5050 chips

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  160lm/w IP66 waterproof Die-casting aluminium Modular LED Flood Light 200w 5050 chips

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE, ROHS and ISO9001:2015
Model Number: LY-ST23200-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD50-USD600/PC
Packaging Details: Carton box package
Delivery Time: 5-12 working day
Payment Terms: T/T, Western Union or Paypal, L/C, D/A, D/P, MoneyGram
Supply Ability: 5000pcs/month
Detailed Product Description
LED Flood Light: 200w LED Brand: Lumileds Luxeon 5050
Beam Angle: 25/60/90/150*65° Voltage: 100-240V
CRI: >80 Dimmable: Yes
Material: Alumilum + PMMA Driver: Meanwell Or Chinese Brand
High Light:

160lm/W Aluminium Modular LED Flood Light

,

200W Waterproof LED Flood Light

,

IP66 Outdoor Led Flood Lights

160lm/w IP66 waterproof Die-casting aluminium Modular LED Flood Light 200w 5050 chips



1. Features

  • Adoption LEYOND exclusive Lens with light transmittance up to 98%.
  • Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
  • There are 25°,60°, 90°,150x65° beam angle options for the Lens.
  • Scientifically-designed heat dissipater with much better cooling effect.
  • High luminous efficiency, whole lamp output light effiency >160LM/W.
  • High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, CE/ROHS/TUV compulsory certification.
  • For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
  • Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
  • The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable



2. Outlook

160lm/w IP66 waterproof Die-casting aluminium Modular LED Flood Light 200w 5050 chips 0



3. Product Characteristics


160lm/w IP66 waterproof Die-casting aluminium Modular LED Flood Light 200w 5050 chips 1



4. Pictures



160lm/w IP66 waterproof Die-casting aluminium Modular LED Flood Light 200w 5050 chips 2

160lm/w IP66 waterproof Die-casting aluminium Modular LED Flood Light 200w 5050 chips 3

160lm/w IP66 waterproof Die-casting aluminium Modular LED Flood Light 200w 5050 chips 4



5. Operation and Storage Condition

Operation Ambient Temperature -40 to +50°C, Relative Humidity 20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -40 to +65°C, Relative Humidity 5~95%
Mounting Height : Suitable for 8~20m height

6. Applications
  • It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
  • New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.



7. Packing

Inner box Size: 514mm×390mm×135mm
Outer box Size: 529mm×405mm×305mm  (2 PCS LED Flood Light)
160lm/w IP66 waterproof Die-casting aluminium Modular LED Flood Light 200w 5050 chips 5
