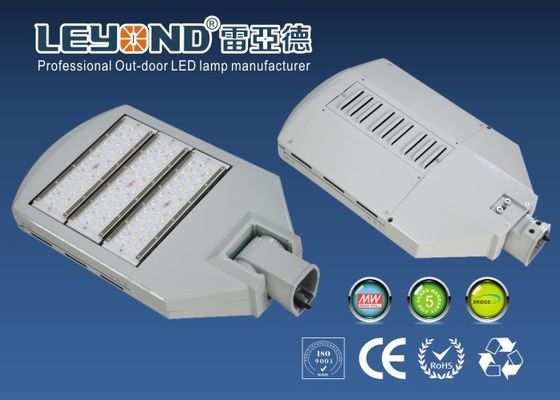

Bridgelux Chip Module LED Street Light 100W 150W With Meanwell Driver AC100-240V IP65

large.img.alt
small.img.alt small.img.alt

Large Image :  Bridgelux Chip Module LED Street Light 100W 150W With Meanwell Driver AC100-240V IP65

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: EMC, LVD, RoHS
Model Number: LY-ST11150-XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $180usd/pcs
Packaging Details: Standard export package. 1pcs/ctn
Delivery Time: 3-15 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
Luminous Efficiency: 124lm/w Beam Angle: 150*70
Protection Grade: IP66 LED Driver: Meanwell
Input Voltage(V): AC90-305V Lamp Body Material: Aluminum Alloy
High Light:

led roadway lighting

,

led street lamp

Bridgelux Chip Module LED Street Light 100W 150W With Meanwell Driver AC100-240V IP65


1. Module led street light, 125lm/w.
2. Power: 50w 60w 100w 120w 150w 180w 200w 250w
3. Mean Driver&Bridgelux Chip
4. 5 years warranty
5. IP66

Features:
---- High Lumens output >120lm/W, with Bridgelux chip high power LEDs
---- With asymmetric optic lens, higher lumens transmittance up to 98%
---- Meanwell brand driver HLG series, input voltage AC100-277V, PF>0.93
---- Popular LED modules inside, easier for maintanance
---- Duct type thermal design, reduce the weight of the light and ensure good heat dissipation
---- Durable lights with long life span 50000 hours, 5 years warranty
---- Nice appearance with waterproof IP rating: IP66
---- Matching 3x1mm² silicon rubber cable 1 meter (customize available)


Paragrams


                               Lamp  Specification
Power150w
VoltageAC90-305V, 50/60hz,
Material Aluminum Alloy+PC
Brand of Chip2pcs*1w US Bridgelux packaged
Driver BrandMeanwell HLG-185
Color Temperature28-6500K
CRICRI>60
Luminous18638lm
Beam Angle150x70d
Power FactorPF>0.95
Protect GradeIP66
Life Time50000hrs
Warranty5 Years
                              Dimmension and Package
Lamp size   569x328x98mm
Package Size630x388x168mm
Gross Weight8.8kg
Net Weight7.6kgg
Package1pcs/ctn, installation guide inside.



                                      Applications
Application Area                                                   Highways, Urban Roads and Secondary Roads,Stadiums, Sidewalks, Residential Areas, Industrial Areas,Squares, Parks, Villas, Gardens etc
Installation Height     Suit for 5-10M height


Outlook


Bridgelux Chip Module LED Street Light 100W 150W With Meanwell Driver AC100-240V IP65 0


Aging Test:

100% of all lamps will be tested and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Each lamp should pass all these QC procedures  before shipping to customer.

Bridgelux Chip Module LED Street Light 100W 150W With Meanwell Driver AC100-240V IP65 1
