Product Details:
Payment & Shipping Terms:
|
Application: | Sports Stadiums,etc,Square,WAREHOUSE,Theme Park | Material: | Aluminum Alloy |
---|---|---|---|
Driver: | Meanwell Brand | LED Chip: | Lumileds 5050 |
Beam Angle: | 25/60/90, 150*65, 155*110 | Warranty: | 5 Years |
Input Voltage: | AC100-240V | Color Temperature(cct): | 3000k/4500k/6500k |
High Light: | 80W LED Modular Flood Light,160lm/w Aluminum LED Flood Light,LUXEON 5050 LED Flood Light |

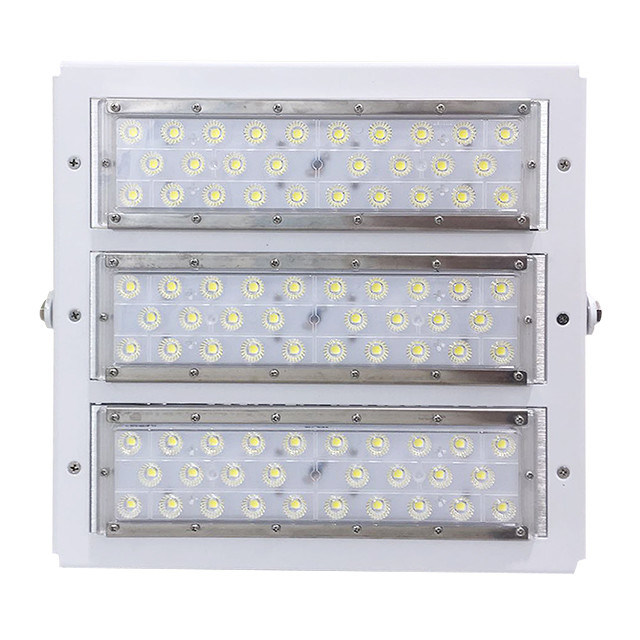

Waterproof LED Modular Flood Lights high performance for outdoor application
1)High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
2)High luminous efficiency, Whole lamp output light effiency >160LM/W.
3)Adoption LEYOND exclusive Lens with light transmittance up to 98%.
4)Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
5)There are 25°,60°, 90° beam angle options for the Lens.
6)Scientifically-designed heat dissipater with much better cooling effect.
7)For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
8)Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
9)The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
Our Advantage
1.Your inquiry for our products will be replied in 24 hours
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM and ODM are welcomed
4.Make the products as your requirement.
5.Protection of your sales area, ideas of design and all your private information.
Par NO Parameter |
LY-ST24150PW | LY-ST24150NW | LY-ST24150WW |
Input voltage | AC100V~240V 50/60HZ | ||
System consumption(W) |
150 | 150 | 150 |
Luminous flux(lm) | 24000 | 22200 | 19800 |
Chip Brand |
LUXEON 5050 LEYOND 5050 |
LUXEON 5050 LEYOND 5050 |
LUXEON 5050 LEYOND 5050 |
Beam Angle | 25°,60°, 90° | 25°,60°, 90° | 25°,60°, 90° |
CRI | >75 | ||
Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K | ||
LED Driver | MEAN WELL ELG-150 / HLG-150H | ||
Luminous efficiency(lm/w) |
>160 | ||
Lifespan(hrs) | >50000 | ||
IP Rating | IP66 | ||
Dimmable | YES&NO | YES&NO | YES&NO |
Size(mm) | 320*316*76 | 320*316*76 | 320*316*76 |
Net Weigh(kg) | 4.5 | 4.5 | 4.5 |
Package Size(mm) | 420*390*135 | 420*390*135 | 420*390*135 |
Package Quantity(Pcs) | 1 | 1 | 1 |
Gross Weigh(kg) | 5.2 | 5.2 | 5.2 |
Details
Lamp Body
Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp, harmless to the human body.
Absolutely unique DESIGN, nothing on the market like it. Make your lighting special and fantastic.Scientifically-Designed heat dissipater with much better cooling effect
Perfect Light Distribution Solution:Using philips led chip to ensure high lumen and long life. Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
There are 24°,36°,60°, 90°, 160° beam angle options for the Lens.
Very high quality MW power supply, input voltage AC 85-277V. The power efficiency is more than 90%, power factor greater than 0.98.
For More Information, Pls Feel Free To Contact Us
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when
choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and
other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyond always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.
3. How to place an order with your company?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty policy, please contact our sales representatives.
