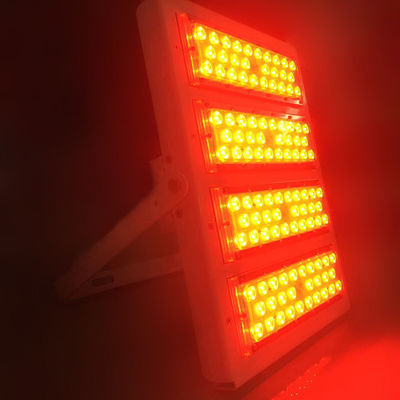

Slim Line Waterproof 200W High Power RGB LED Flood Light IP66 Protection Outdoor lights

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Slim Line Waterproof 200W High Power RGB LED Flood Light IP66 Protection Outdoor lights

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Leyond
Certification: CE ROHS
Model Number: LY-ST24200RGB

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: 1pcs/CTN
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 30000pcs per month
Detailed Product Description
Product Name: RGB LED Flood Light Material: Aluminum+PC
LED Driver: Meanwell Driver LED Chip: LUXEON 5050
Powers: 200W Power Factor: >0.9
IP Rating: IP66 Warranty: 5 Years
High Light:

led outdoor flood lighting

,

outside led flood lights

Slim Line Waterproof 200W High Power RGB LED Flood Light IP66 Protection Outdoor lights

5 Years Warranty Aluminum Housing RGB LED Flood Light 80W For Stage Plaza color decoration 0



1) Adoption LEYOND exclusive Lens with light transmittance up to 98%.

2)Perfect Light Distribution Solution Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

3) There are 24°, 36°,60°, 90°,160° beam angle options for the Lens.

4) Control mode:RF/IR/DMX512. Standard DMX512 input interface and a built-mode controller , can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.

5) Master or Slave function, if set master, it can stead of the external controller.

6) Reliable 350mA constant current driver designed to ensure high-power LED lights for a stable job.



7)Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.



5 Years Warranty Aluminum Housing RGB LED Flood Light 80W For Stage Plaza color decoration 1

Electrical Specifications

Model

Modules Number

Power

Input Voltage

Input Current

Power Factor

PowerEfficiency

LY-ST24200RGB

5

200W

AC90~305V

50/60Hz

0.95A/220VAC

>0.99/115VAC

>0.95/230VAC

>90%



Photometric Specifications

Emitting Color

λd / CCT

Typical Lumens

Forward Voltage

Forward Current

RED

620-630 nm

9000 lm

13-17V

2700mA(MAX)

GREEN

520-530 nm

11000 lm

21-25V

2700mA(MAX)

BLUE

460-465 nm

2800 lm

21-25V

2700mA(MAX)

WHITE

R+G+B

10000lm

13-25V

8000mA(MAX)



Mechanical Specifications

Model

Power

Carton Size

Gross Weight

Net Weight

IP Rating

Meterial

LY-ST24200RGB

200W

320X504X76MM

7.4kg

6.4kg

IP66

Aluminum+PC

5 Years Warranty Aluminum Housing RGB LED Flood Light 80W For Stage Plaza color decoration 2

5 Years Warranty Aluminum Housing RGB LED Flood Light 80W For Stage Plaza color decoration 35 Years Warranty Aluminum Housing RGB LED Flood Light 80W For Stage Plaza color decoration 45 Years Warranty Aluminum Housing RGB LED Flood Light 80W For Stage Plaza color decoration 5



5 Years Warranty Aluminum Housing RGB LED Flood Light 80W For Stage Plaza color decoration 6

5 Years Warranty Aluminum Housing RGB LED Flood Light 80W For Stage Plaza color decoration 8

Powerful Meanwell Driver RGB LED Flood Light For Cultural Plaza Color Decoratio Warm White 3000K 5

Powerful Meanwell Driver RGB LED Flood Light For Cultural Plaza Color Decoratio Warm White 3000K 6



5 Years Warranty Aluminum Housing RGB LED Flood Light 80W For Stage Plaza color decoration 11

LED is cold light sources, a wide range of output color, the wall washer use LED as a light source ,can be widely used in various building walls of light color decoration, and the stage,

meeting rooms, display lights, ancient buildings, the Cultural Plaza and other places.



For More Information, Pls Feel Free To Contact Us



Ultra Slim Design Mono Silicon LED Solar Street Light with Motion Sensor 15



FAQ

1. How to choose a good LED Source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and
other materials will influence the product reliability.

2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyond
always treat the clients benefit as the most important thing. So, we use the top brand
material to produce high quality product.

3. How to place an order with our factory?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

4. How long will the warranty period last?
A: We usually offer 3-5 years free warranty. More detailed warranty policy, please contact our sales representatives for the specific answer.
