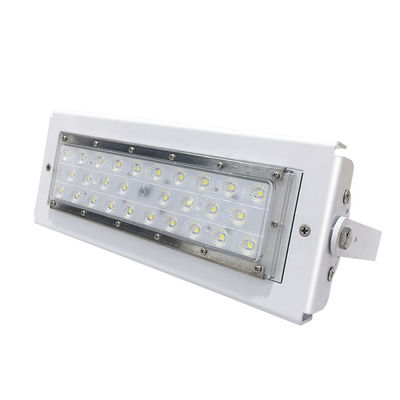

LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle High Intensity

LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle High Intensity
LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle High Intensity LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle High Intensity LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle High Intensity

Large Image :  LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle High Intensity

Product Details:

Place of Origin: Shenzhen, China.
Brand Name: Leyond
Certification: CE, RoHS, CB, ENEC etc.
Model Number: LY-ST23050PW

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Based on Specs & Quantity
Packaging Details: 1 PC Per Inner Carton, 2 PCS Per Outer Carton, Brown Paper Carton
Delivery Time: 2-5 working days for samples, 7-20 working days for bulk orders
Payment Terms: T/T, Western Union, Paypal, L/C etc.
Supply Ability: 10,000 pcs per month
Detailed Product Description
Product Name: LED Modular Flood Light Color: White, Grey Etc.
Input Voltage: AC100V~240V 50/60HZ System Consumption(W): 50W
Luminous Flux(lm): 8250 Chip Brand: LUXEON/Bridgelux 5050
Beam Angle: 25°,60°, 90° CRI: >=70 Ra
Color Temperature: 2700-6500K Luminous Efficiency(lm/w): 160-170
High Light:

SMD Modular Modular Flood Light

,

160LM/W Modular Flood Light

,

90deg Modular Led Flood Light

LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle





Parameters

Parameters LY-ST23050PW LY-ST23050NW LY-ST23050wW
Lifespan(hrs) >50000 >50000 >50000
IP Rating IP66 IP66 IP66
Dimmable Optional  Optional Optional
Size(mm) 320*128*76 320*128*76 320*128*76
Net Weigh(kg) 2.6 2.6 2.6
Package Size(cm) 54.3*31*43 54.3*31*43 54.3*31*43
Package Quantity(PC) 4 4 4
Gross Weigh(kg) 16 16 16





Features:



Adoption LEYOND exclusive Lens with light transmittance up to 98%.

Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

There are 25°, ,60°, 90° ,beam angle options for the Lens.

Scientifically-designed heat dissipater with much better cooling effect.

High luminous efficiency, Whole lamp output light effiency >150LM/W.

High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.

Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.





Pictures

LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle High Intensity 0LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle High Intensity 1LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle High Intensity 2





Applications

1. playground,

2. warehouse,

3. plaza,

4. tunnel,

New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. etc.





Operation & Storage Conditions

Operation Ambient Temperature -40 to +50°C, Relative Humidity 20~90%

Input Voltage 100~240V AC, 50/60Hz

Storage Ambient Temperature -40 to +65°C, Relative Humidity 5~95%

Mounting Height : Suitable for 3~10m height





Warnings

Please handle the product with care when open the package.
l Do Not Open the Light Engine
l Do Not Soak the Floodlight into Water
l Do Not Light up the System Without Grounding
l Do Not Use Dimmer
l If the new LED down light is found damaged, please keep the original package and
contact us.
l In order to ensure the product work properly, please use the power supply within
indicating voltage range.
l Whatever the case, lamps can not be covered by heat resistant gasket or similar
materials.
l 1-10V dimming need to be customized.
