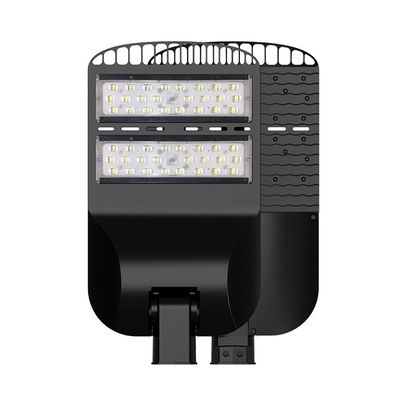

Ip66 Waterproof 5 Years Warranty Led Street Light For Roadway With Aluminum

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Ip66 Waterproof 5 Years Warranty Led Street Light For Roadway With Aluminum

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS
Model Number: LY-ST20100XX

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs/month
Detailed Product Description
Power: 100W LED Chips: Lumileds Luxeon
LED Driver: Meanwell High Efficiency: 160lm/w
IP Rating: IP66 Warranty: 5 Years
Color: Black
High Light:

led high bay lamps


led high bay lamp

Ip66 Waterproof 5 Years Warranty Led Street Light For Roadway With Aluminum



  1. Absolutely unique mold,make your lighting special and fantastic.
  2. Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
  3. Anti-glare and uniform light level to avoid any visual discomfort.
  4. high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
  5. Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
  6. Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
  7. Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
  8. Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
  9. Green environmental protection, no UV light and infrared radiation, no mercury pollution.
  10. Nice appearance and non-fouling properties, Protection class IP66.
  11. Work without strobe, fast transient responseA wide range of working voltage.



Par NO





LY- ST10100WW


LY- ST10100NW

Inptut voltage AC100V~240V 50/60HZ / DC12-24V
Sysem consumption(W) 100 100 100
Luminous flux(lm) 16500 15000 16500
Chip Brand Lumileds 5050 Lumileds 5050 Lumileds 5050
Beam Angle 150*65 DEG 150*65 DEG 150*65 DEG
CRI >75
Color Temperature Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K
Luminous efficiency(lm/w) >165
Lifespan(hrs) >50000
IP Rating IP67
Size(mm) 542x290x105 542x290x105 542x290x105
Net Weigh(kg) 5.5 5.5 5.5
Package Size(mm) 670*368*110 670*368*110 670*368*110
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 6.4 6.4 6.4

Distribution Curve:(100w)

High Lumens 160lm/W Waterproof LED Street Lighting 50W IP66 60Hz With Aluminum Material 3

Toolless Design IP66 Waterproof Die Casting Housing LED Street Light 1


Inner box Size: 600mm×350mm×160mm
Outer box Size: 620mm×360mm×360mm (2 PCS LED Street Light)


240 Volt IP66 Waterproof Outdoor LED Street Lights 60W With 150°*65° Beam Angle 4

Assembly –Electricity:
Ip66  Waterproof 5 Years Warranty Led Street Light For Roadway With Aluminum 3
Operation and Storage Condition:
  • Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
  • Input Voltage 90~305V AC, 50/60Hz
  • Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
  • Mounting Height : Suitable for 6~12m height
Optional function :
1) Daylight automatically controlling ON / OFF
Ø Turn-On Light Level: 10 Lux or at customer’s request
Ø Turn-Off Light Level: 50 Lux or at customer’s request
Ø Turn-On Time Delay: 10-15s
Ø Turn-Off Time Delay: 10-15s
2) Zigbee remote communication controlling
ZIGBEE controller conforms to IEEE802.15.4 protocol of ZIGBEE
communication standard. It has the advantages of remote communication,
strong anti-interference capability and flexible networking, realizing
peer-to-peer and peer-to-multi peer transparent data transmission among
devices, and constructing star network or mesh network topology.
ZIGBEE controller consists of a current and voltage measurement
circuit, which collect real-time load performance and power consumption of
street light.
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
Ip66  Waterproof 5 Years Warranty Led Street Light For Roadway With Aluminum 4


l Do Not Use Other Devices for LED Street Light ,Installation Such as
Stabilizer, Regulator …etc
l Do Not Open the Light Engine
l Do Not Soak the LED Street Light into Water
l Do Not Light up the System Without Grounding
l 1-10V dimming need to be customized
