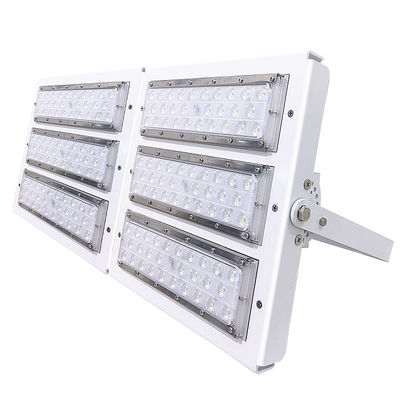

160LM/W High Quality Stadium Lighting IP66 SMD Modular 100W 200W 300W LED Flood Light

large.img.alt
small.img.alt small.img.alt

Large Image :  160LM/W High Quality Stadium Lighting IP66 SMD Modular 100W 200W 300W LED Flood Light

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEYOND
Certification: CE EMC LVD ROHS CB ENEC
Model Number: LY-ST23300PW

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 7-10 Working days
Payment Terms: T/T, Western Union, L/C, D/P
Supply Ability: 10000 Pcs/Month
Detailed Product Description
Power: 300W Input Voltage: 100-305V AC
Dimmable: 0-10V Warranty: 5 Years
CRI: >80 CCT:: 2700-6500K
LED Chip: Lumileds Luxeon 5050 LED Light Efficiency: >160lm/w
Beam Angle: 25/60/90deg
High Light:

SMD Modular Modular Flood Light

,

160LM/W Modular Flood Light

,

90deg Modular Led Flood Light

160LM/W High Quality Stadium Lighting IP66 SMD Modular 100W 200W 300W LED Flood Light



1. Specificatoin:

Par NO

Parameter

LY-ST23240PW LY-ST23300NW
Input voltage AC100V~240V 50/60HZ
System consumption(W) 240 300
Luminous flux(lm) 39600 48000
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Beam Angle 25°,60°, 90° 25°,60°, 90°
CRI >75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >160
Dimmable YES&NO YES&NO
IP Rating IP66
Net Weigh(kg) 9.0 9.0
Size(mm) 640*316*76 640*316*76



2. Dimension:

160LM/W High Quality Stadium Lighting IP66 SMD Modular 100W 200W 300W LED Flood Light 0



3. Features:

Adoption LEYOND exclusive Lens with light transmittance up to 98%.

Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

There are 25°,60°, 90°, beam angle options for the Lens.

Scientifically-designed heat dissipater with much better cooling effect.

High luminous efficiency, Whole lamp output light effiency >160LM/W.

High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.

Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable



4. Application:

It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.

New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.



5. Assembly and Installation:

160LM/W High Quality Stadium Lighting IP66 SMD Modular 100W 200W 300W LED Flood Light 1



6. Detail Pictures:

160LM/W High Quality Stadium Lighting IP66 SMD Modular 100W 200W 300W LED Flood Light 2

160LM/W High Quality Stadium Lighting IP66 SMD Modular 100W 200W 300W LED Flood Light 3





7. FAQ:

1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when
choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and
other materials will influence the product reliability.

2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyond
always treat the clients benefit as the most important thing. So, we use the top brand
material to produce high quality product.

3. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty policy, please contact our sales representatives.
