Product Details:
Payment & Shipping Terms:
|
Power: | 50W | LED Chip: | Lumileds |
---|---|---|---|
LED Driver: | Meanwell/Sosen/others | IP Rating: | IP65 |
CCT: | 2700-6500K | Material: | Die-casting Aluminum+PC |
Warranty: | 5 Years | Beam Angle: | 150X70degree |
High Light: | outdoor led street light,led street lamp |
Specification:
Model | LY-ST20030XX | LY-ST20040XX | LY-ST20050XX | LY-ST20060XX |
---|---|---|---|---|
Luminous Flux | 3900lm | 5200lm | 6500lm | 7800lm |
Product Name | LED Street Light | |||
Input Voltage | 100~240V AC,50/60Hz | |||
Power Factor | ≥0.95 | |||
Power Efficiency | ≥88% | |||
Current | 0.14A/220V | 0.19A/220V | 0.24A/220V | 0.29A/220V |
Luminous Efficiency | ≥120lm/W | |||
CRI | >80 | |||
Beam Angle | 150*65° | |||
CCT | WW:2700-3200K NW:4000-4500K PW:5000-6500K | |||
Led Chip | 60pcs Lumileds 3030 SMD Led | |||
Led Driver | Meanwell HLG-40-36A | Meanwell HLG-60-36A | ||
Warranty | 5 years | |||
IP Rating | IP65 | |||
Net weight | 3.3kg | |||
Dimension(mm) | 410*200*90 | |||
Pole diameter | 50mm | |||
Housing Material | Die Casting Aluminum | |||
Operational Condition | Temperature:-30℃~60℃ Humidity:10%~90%RH |
• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%,
power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher
than the same type lights in the market, with higher light transmittance up to 98%.

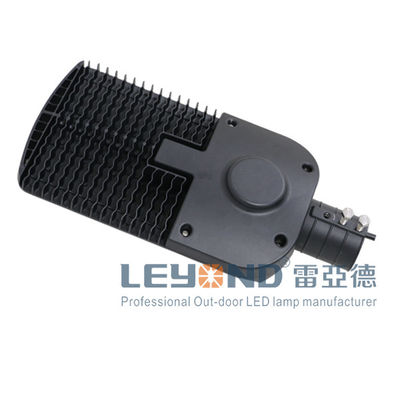

• Duct type thermal design, reduce the weight of the light and ensure good heat
dissipation, lower luminous decay, and also extend life span of the leds. Adopting the
popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy
saving; with good resistance to over-current,over-voltage, lightning, high temperature,
which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights
frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury
pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the
death rate of the leds.
