Product Details:
Payment & Shipping Terms:
|
| Item: | 40w Led Street Lights With Sensor | LED Source: | Luxeon 5050 Led |
|---|---|---|---|
| Luminous: | 6400lm | Beam Angle: | 150*70 Degree |
| CCT: | WW/NW/PW | ||
| High Light: | outdoor led street light,led street lamp |
||
160lm/w High Efficiency IP66 30w 40w 50w 60w led Solar Street Light with Microwave sensor
1. Specification
| Model No. | LY-ST10040PW | LY-ST10040NW | LY-ST10040WW | LY-ST10060PW | LY-ST10060NW | LY-ST10060WW |
| Inptut Voltage | AC100-305V 50/60HZ | |||||
| Power | 40W | 40W | 40W | 60W | 60W | 60W |
| Luminous Flux | 6400lm | 6200lm | 6000lm | 9600lm | 9300lm | 9000lm |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Color Temperature | 5500-6000K | 4000-4500K | 2700-3200K | 5500-6000K | 4000-4500K | 2700-3200K |
| Luminous Efficiency | >160lm/w | >155lm/w | >150lm/w | >160lm/w | >155lm/w | >150lm/w |
| Power factor | >0.98 | |||||
| Beam Angle | 150*65 DEG | |||||
| LED Driver | MEAN WELL HLG-40 & HLG-60 | |||||
| Surge Protection | 6KV | |||||
| CRI | >75 | |||||
| Lifespan | >50000hrs | |||||
| IP Rating | IP66 | |||||
| Dimmable | YES&NO | |||||
| Size(mm) | 410*200*90 | |||||
| Pole Diameter | 50mm / 60mm | |||||
| Net Weight | 2.8kg | |||||

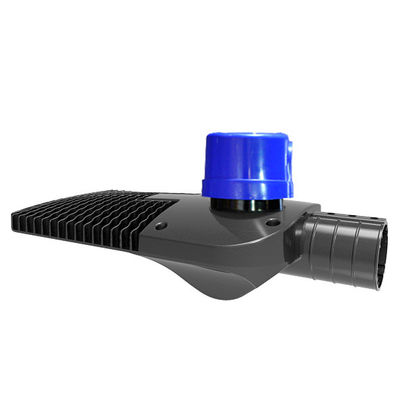

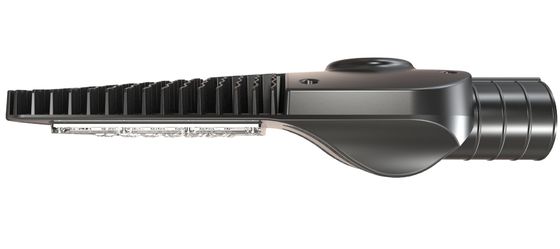

2. Outlook
3. Features
>>Absolutely unique mold,make your lighting special and fantastic.
>>The appearance of body: aluminum alloy die-casting.
>>Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
>>Anti-glare and uniform light level to avoid any visual discomfort.
>>Adopting LUXEON 3030 led light sources and LEYOND lens technology, higher light transmittance up to 93%.
>>Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
>>Dust and snow proof: Adopt smooth die-cast aluminum housing,successfully prevent the dust and snow from acumulating on the housing,thus better heat dissipation and longer life span.
>>High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.
>>Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
>>Green environmental protection, no UV light and infrared radiation, no mercury pollution.
>>Nice appearance and non-fouling properties, Protection class IP66.
>>Work without strobe, fast transient response;A wide range of working voltage.
4. Package
5. Assembly-Electricity
Q1. What is your MOQ?
MOQ: 1 Pcs. Which is No MOQ.
Q2. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q3. What is the payment terms of your formal order?
We accept payment via TT, Paypal, Western Union, and we offer EXW terms.
Q4.Can you guarantee the product quality?
We offer 3-10 years warranty to our products. We ensure and guarantee the production quality of all products, either sample order or formal order, with LEYOND's quality control process, we achieved less than 0.2% general failure rate, this was based on our sales records in the past 10 years.
Q5. Can you provide OEM and ODM service?
Yes, we can provide OEM and ODM product, with customized label design on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.
Q6. Can you provide the certificate and test reports?
Yes, please contact our sales staff, we can provide all the certificates, test reports, photometric reports and IES files of each of our luminaire.
Q7.How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q8.What is the lead time of your product?
Our standard lead time for sample is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
