High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material

High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material
High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material

Large Image :  High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS
Model Number: LY-ST55120-XX

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Contact me
Packaging Details: normal packing,Brown carton
Delivery Time: sample 3-5 working days,normal order 7-10 working days
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 10000pcs per month
Detailed Product Description
Material: Aluminum Driver: Meanwell
Led Brand: 3030 IP Rating: IP40
Warranty: 5 Years Module Quantity: 3pcs
High Light:

low bay lighting

,

low bay led shop lights

High Power 3030 SMD LED HighBay Light 150 Watt For Yard / Aluminum Material



Features:

High power ,high brightness,high quality,high efficiency,up to 80% energy saving..
Light cover adpots light diffusion materials to bring us better lighting effect.high illumination, and the mliky cover can reach 90% light transmittance.
With low light degradation LED and good heat dissipation aluminum material with quick heat conduction.Make the LED lights have longer lifetime.10 times than the traditional ones.They need low cost in maintenance.so,they are fit for the lighting place where is hard to replace the broken lights often..
High luminous efficiency, Whole lamp output light effiency >100LM/W.
High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood,
observers will feel more comfortable.




Technical Parameter:

Model
Input Voltage
Luminous Flux
Beam Angle
CRI
CCT
IP Rating
Product Dimension
(mm)
NET Weight
LY-HB55150PW
AC100V~240V
50/60Hz
15750lm
120°
>80
5000-6500K
      IP40
       362X291X130
     6.6kg
LY-HB55150WW
14000lm
2700-3200K
LY-HB55150NW
14500lm
4000-4500K

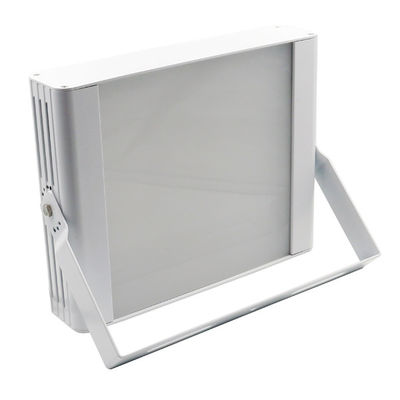

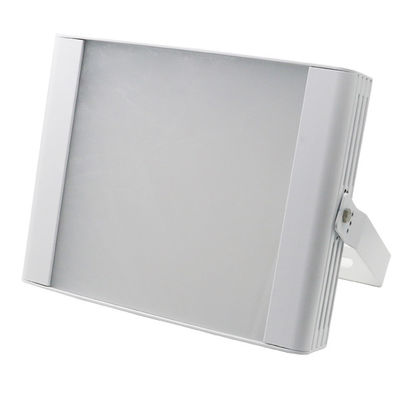

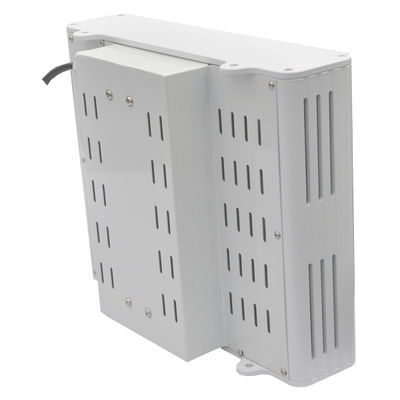

Outlook:
High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material 0

Distribution Curve:
High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material 1


High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material 2

High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material 3



Package:
Carton Size: 450mm×400mm×210mm
Net weight:6.6KG Gross weight:7.5KG
High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material 4





Installation

High Power 3030 SMD LED High Bay Light 150 Watt For Yard / Aluminum Material 5


FAQ:

1. Q:What's the led chip for the modular flood light?
A: Bridgelux chip
2. Q:what's the driver brand?
A: Meanwell driver
3. Q:what's the delivery time?
A: for sample,3-5 working days after payment,for normal order,7-10 working days.
4. Q:what's the product warranty?
A: 5 years warranty
5. Q:Can you provide OEM design?
A: Yes,OEM or ODM design is available

If any questions or requirement,please feel free to contact me.
