130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop

130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop
130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop 130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop 130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop

Large Image :  130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS
Model Number: LY-ST55120-XX

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Contact me
Packaging Details: normal packing,Brown carton
Delivery Time: sample 3-5 working days,normal order 7-10 working days
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 10000pcs per month
Detailed Product Description
Material: Aluminum Driver: Meanwell
Led Brand: 3030 IP Rating: IP40
Warranty: 5 Years
High Light:

low bay lighting

,

low bay led shop lights

130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop



Quick details:

a. Anti-glare design, with acrylic cover plate ( milky or pearl transparent for optional)
b. non-waterproof for indoor lighting, lighter weight to save shipping cost
c. 2 types installation proposal: hanging with lifting rope, or fixed handle bracket on backside.
d. high brightness, 120lm/w for whole lamp, beam angle 120°
e. lumileds LEDs, CRI>80, CCT: 3000K/4000K/5700K/6500K
f. Meanwell driver, PF>0.95 , 5 years warranty
g. Power:150w/180w/240w
h. Certificate: CE,RoHS

Features:

1. High power ,high brightness,high quality,high efficiency,up to 80% energy saving..

2. Light cover adpots light diffusion materials to bring us better lighting effect.high illumination, and the mliky cover can reach 90% light transmittance.

3. With low light degradation LED and good heat dissipation aluminum material with quick heat conduction.Make the LED lights have longer lifetime.10 times than the traditional ones.They need low cost in maintenance.so,they are fit for the lighting place where is hard to replace the broken lights often..

4. High luminous efficiency,Whole lamp output light effiency >120LM/W.


Technical Parameter:

Model Input Voltage Luminous Flux Beam Angle CRI CCT Product Dimension
LY-HB55150PW

AC100V~240V
50/60Hz

15750lm 120° >80 5000-6500K 362X291X130
LY-HB55150WW 14000lm 2700-3200K
LY-HB55150NW 14500lm 4000-4500K

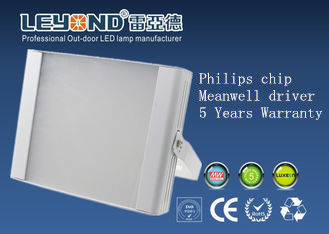

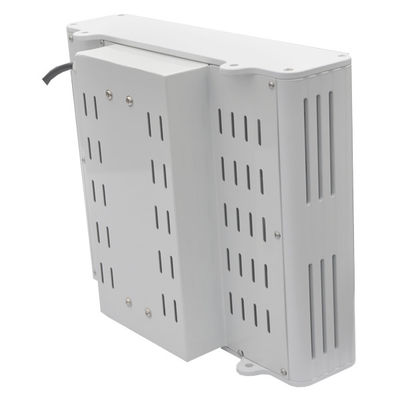

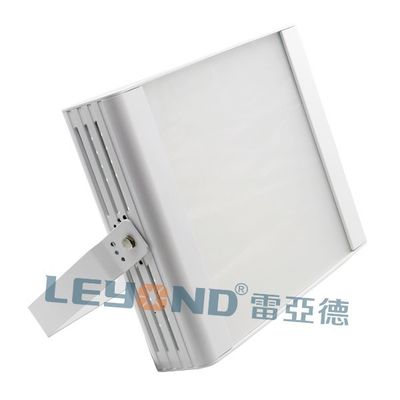

Outlook:
130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop 0

Distribution Curve:
130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop 1


130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop 2




Installation:

 2 types Felxible Installation way: The low bay light support 2 types installation way.

The sling hanging way can be used the places which the fix point is limited.

The handle way is the normal way just like the others led lights, can be install at ground, ceiling & wall with 180° adjustable position.


130lm/w high lumen output New LED Low Bay Light for warehouse lighting,workshop 3


Quality Control

100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability
and we will also test its temperature after 24 hours’ lighting. Then after it is cool we again test
100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures
before shipping to customer.


Our Services:

Trade term: EXW, FOB, CIF

MOQ: 1pcs

Port: Shenzhen, Zhongshan, Guangzhou

Sample availability: Yes

Supply capability: 1000 pcs/day

Payment: T/T, Western Union, L/C, Paypal.

Shipment: ocean or air transportation, international express

Normal lead time: 7days for sample order;15 days for production order

Payment condition: 30% before production, 70%before delivery
