Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light

Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light
Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light

Large Image :  Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light

Product Details:

Place of Origin: Guangdong, China
Brand Name: LEYOND
Certification: CE RoHS
Model Number: LY-ST20100-XX

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: Standard Export Packing
Delivery Time: 5-7 days for samples
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 pcs/month
Detailed Product Description
Power: 150W LED Chip: Lumileds/OSRAM 5050 LED
LED Driver: Meanwell HLG-100 IP Rating: IP65
CCT: 2700-6500K Warranty: 5 Years
Beam Angle: 150X65degree Package: 75cm×40cm×23cm (2 PCS )
GW: 9.6kg Luminous Flux: 16500lm
Dimmable: YES&NO CRI: >80
Pole Diameter: 60mm
High Light:

led roadway lighting

,

led street lamp

Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light



Features:

1. Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality controll will be more stable.
2. Adopt famous Lumileds 3030 chip inside, high efficiency can up to 120 lm/w.
3. Die-casting housings, streamline heat sink with good heat dissipation
4. Meanwell HLG driver and offer 5 years warranty. Price is more competative than others on the market.
5. Short lead time, sample is 3-5 days; Bulk order is 10-15 days based on quantity. To be your firm supporter.
6. Support Photocell sensor, Zigbee, solar systerm and 0-10V dimming, make the lamp smart and more energy saving.


Model
LY-ST20150PW
LY-ST20150WW
LY-ST20150NW
Inptut voltage
AC100V~240V 50/60HZ
Luminous flux
25500lm
24000lm
24750lm
Chip Brand
Lumileds 5050
Driver Brand
Meanwell HLG-150
Beam Angle
150*65°
Warranty
5 years
CRI
>80
Color Temperature
PW:5000-6500K
WW:2700-3200K
NW:4000-4500K
Luminous efficiency
170lm/w
Lifespan
50000hrs
IP Rating
IP65
Pole Diameter
60mm
Package Size
720*370*200mm
Net Weight
8.8kg




Specification:


100W Sword LED Street Light

Outlook:

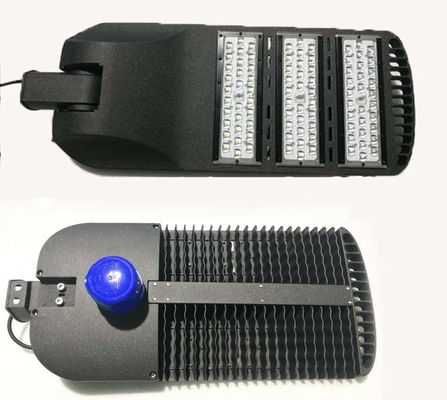

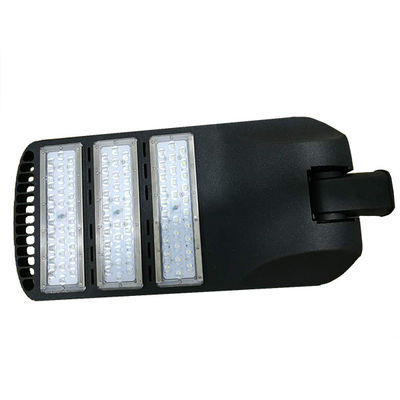

Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light 0





Distribution Curve (100W)
Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light 1
Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light 2









100W Sword LED Street Light

Operation and Storage Condition
·Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
·Input Voltage 100~240V AC, 50/60Hz
·Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
·Mounting Height : Suitable for 6~12m height

Package
·Inner box Size: 720mm×370mm×200mm
·Outer box Size: 745mm×395mm×225mm (2 PCS LED Street Light)

Assembly and Installation
·Assembly-Electricity
1)AC100-240V
·Blue : Neutral
·Brown : Line
·Yellow-Green : Ground

Meanwell HLG driver High Performance 150W Led Street Lighting , Solar Garden Light 3
