IP66 160LM / W LED Street Lighting For High Way , Outdoor street light lamp

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

IP66 160LM / W LED Street Lighting For High Way , Outdoor street light lamp

IP66 160LM / W LED Street Lighting For High Way , Outdoor street light lamp
IP66 160LM / W LED Street Lighting For High Way , Outdoor street light lamp IP66 160LM / W LED Street Lighting For High Way , Outdoor street light lamp

Large Image :  IP66 160LM / W LED Street Lighting For High Way , Outdoor street light lamp

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS
Model Number: LY-ST60100XX

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: contact me
Packaging Details: 1set per carton with foam, strong cartons for export standard
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 Piece/Pieces per Month
Detailed Product Description
Product Name:: Led Street Lighting Lamp Luminous Efficiency(lm/w):: 160LM/W
Driver Brand: Inventronics CRI (Ra>):: 80
Working Lifetime(Hour):: 50000 Certification:: CE,ROHS
LED Chip Brand: Lumileds 3030 Or 5050 Warranty:: 5 Years
High Light:

outdoor led street light

,

led street lamp



IP66 160LM / W LED Street Lighting For High Way , Outdoor street light lamp



New led street light 160LM/W

Powers: 30w-150W

5050 chip LED

3 Years Warranty

IP66



Features



Absolutely unique mold,make your lighting special and fantastic.

The appearance of body: aluminum alloy die-casting

Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

Anti-glare and uniform light level to avoid any visual discomfort.

Adopting LUXEON 5050 led light sources and LEYOND lens technology, higher light transmittance up to 93%.

The power supply is designed to be portable and easy to construct and maintain.Easy to disassemble and assemble: You can easily open and cover up the housing

with your hands,don't need any additional tools.

Dust and snow proof: Adopt smooth die-cast aluminum housing,successfully prevent the dust and snow from acumulating on the housing,thus better heat dissipation and

longer life span.

High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.

Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.

Green environmental protection, no UV light and infrared radiation, no mercury pollution.

Nice appearance and non-fouling properties, Protection class IP66.

Work without strobe, fast transient response;A wide range of working voltage.

Specifications:

Par NO

Parameter

LY-ST60100PW LY- ST60100WW LY- ST60100NW
Inptut voltage AC100V~305V 50/60HZ
Sysem consumption(W) 100 100 100
Luminous flux(lm) 16800 15000 16100
Chip Brand LUXEON 5050/LEYOND 5050 LUXEON 5050/LEYOND 5050 LUXEON 5050/LEYOND 5050
Color Temperature Pure white:5000-6500K Warm white:2700-3200K Neutral white:4000-4500K
CRI >70
Beam Angle 150*60 DEG
LED Driver



INVENTRONICS DRIVER

Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP66
Dimmable YES&NO YES&NO YES&NO
Size(mm) 252x220x128 252x220x128 252x220x128
Net Weigh(kg) 2.8 2.8 2.8
Package Size(mm) 290*250*180 290*250*180



290*250*180

Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 3.7 3.7. 3.7

Our Services:



1. Factory price, large monthly output

2. 5years warranty, high quality guarantee

3. professional Export service, easy to communicate and save your much time

4. Timely delivery, let you win biggest markets advantage

5. Satisfied After-sales service, to be your reliable supplier

6. any question will be get answer within 12 hours

7. R & D team, welcoem OEM and ODM order



Applications:



Street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting; boat dock lighting; sidewalk lighting; remote area lighting; private road lighting; farm & ranch lighting.



FAQ:



1. How to choose LED light source?

A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.



2. Why choose Leyond Lighting?

A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.



3. What can Leyond offer?

A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED downlight, LED ceilling light, LED spot light, LED tube, LED module, LED Street Light, ect.



4. How to place an order?

A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.



5. How long will be the lead time?

A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.



6. How long will the warranty period last?

A: We usually offer 2 years free warranty for Bridgelux products. More detailed warranty policy, please contact our sales representatives.

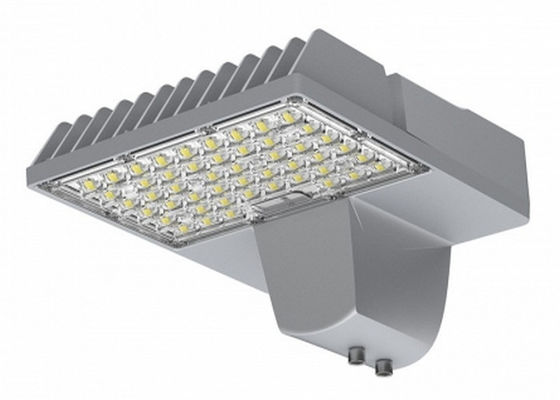

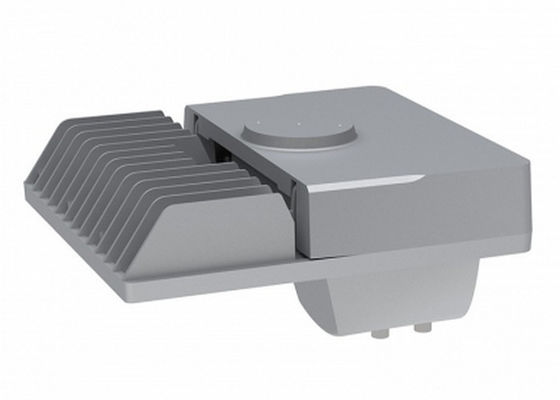

Product picture:



IP66 160LM / W LED Street Lighting For High Way , Outdoor street light lamp 0IP66 160LM / W LED Street Lighting For High Way , Outdoor street light lamp 1
